Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

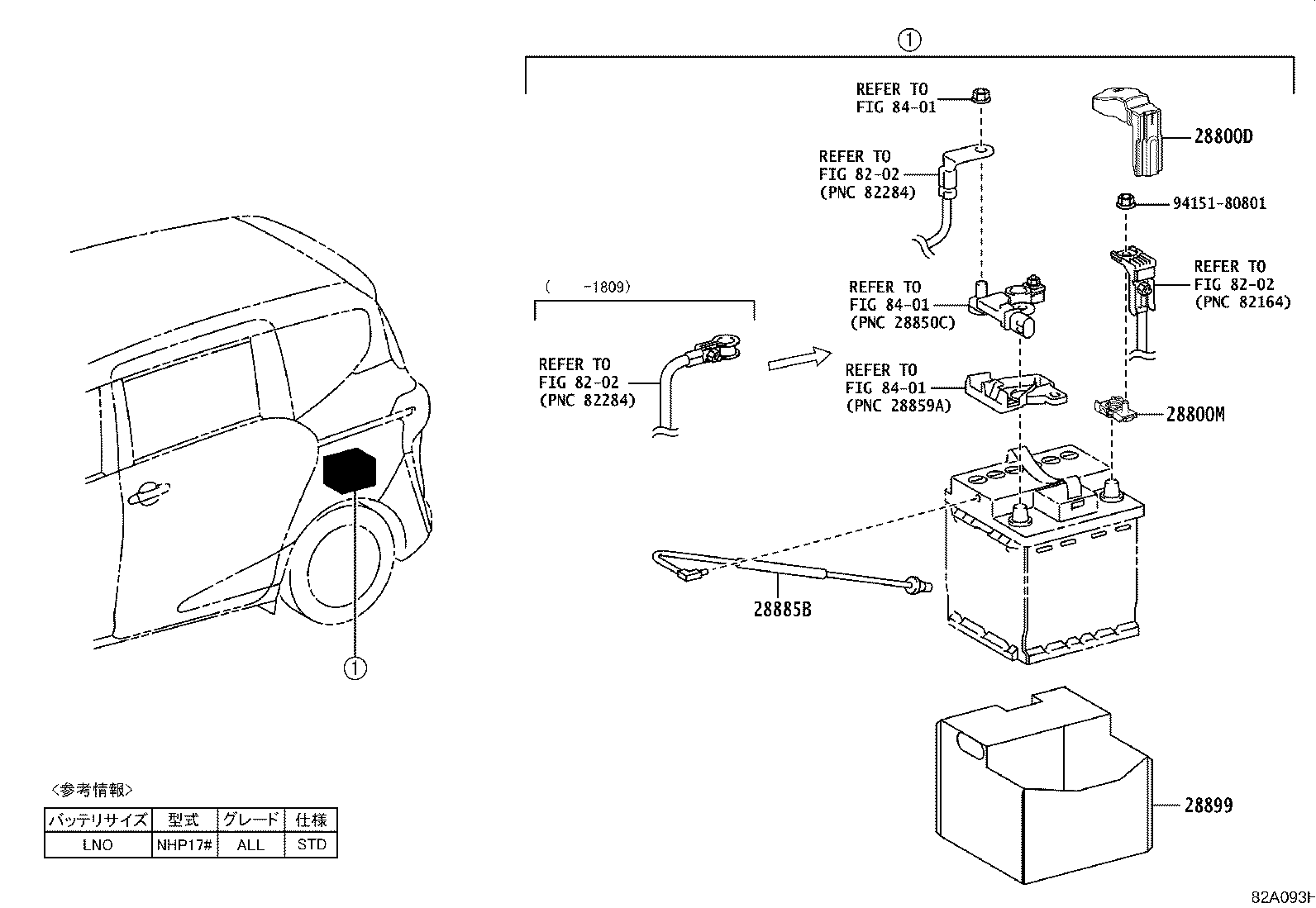

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-47110 |
Cover, Connector(FOR BATTERY TERMINAL)
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥530 | |
| 82821-47110 |
Cover, Connector(FOR BATTERY TERMINAL)
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥530 | |
| 28800M — Terminal, Battery Positive | ||||
| 90982-05061 |
Terminal, Battery Positive
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥850 | |
| 90982-05061 |
Terminal, Battery Positive
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥850 | |
| 28885B — Hose, Battery | ||||
| 28885-21080 |
Hose, Battery
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥1,360 | |
| 28885-21080 |
Hose, Battery
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥1,360 | |
| 28899 — Insulator, Battery | ||||
| 28877-21040 |
Insulator, Battery
2015-07 → 2018-09
ended
|
1NZFXE NHP170 | ¥410 | |
| 28877-21040 |
Insulator, Battery
2018-09 → 2018-10
ended
|
1NZFXE NHP170 FNBSG,FNBSX,G,GCERO,X | ¥410 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
