Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

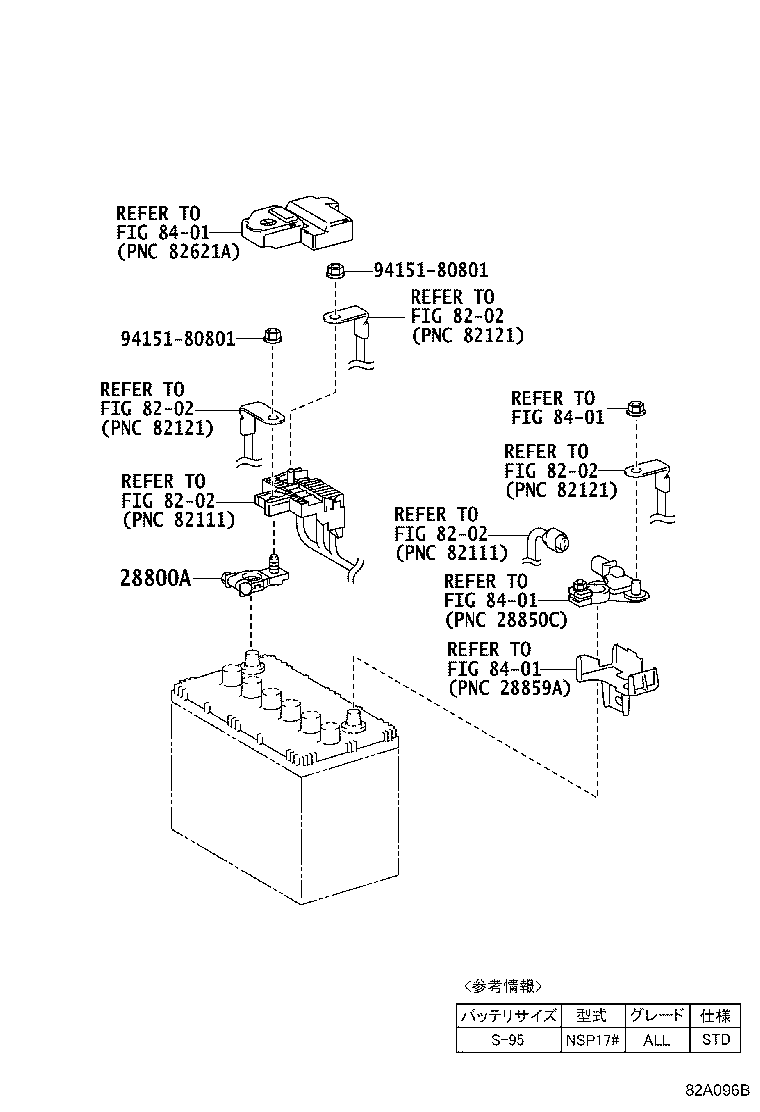

Exploded illustration 82A096B 28800A — TERMINAL, BATTERY POSITIVE (6 parts) 9415180801 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 9415180801 — not listed in this catalogue
82A096B · 1 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
6 parts on this figure
Part number Description Fitment Price
28800A — Terminal, Battery Positive
90982-05055 Terminal, Battery Positive
2015-06 → 2018-09 ended
1NZFE NCP175 ¥850
90982-05061 Terminal, Battery Positive
2015-06 → 2018-09 ended
2NRFKE NSP17# ¥850
90982-05061 note Terminal, Battery Positive
2015-06 → 2018-09 ended
1NZFE NCP175 ¥850
90982-05055 Terminal, Battery Positive
2018-09 → 2022-07 ended
1NZFE NCP175 ¥850
90982-05061 Terminal, Battery Positive
2018-09 → 2022-07 ended
2NRFKE NSP17# ¥850
90982-05061 note Terminal, Battery Positive
2018-09 → 2022-07 ended
1NZFE NCP175 ¥850
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
