Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

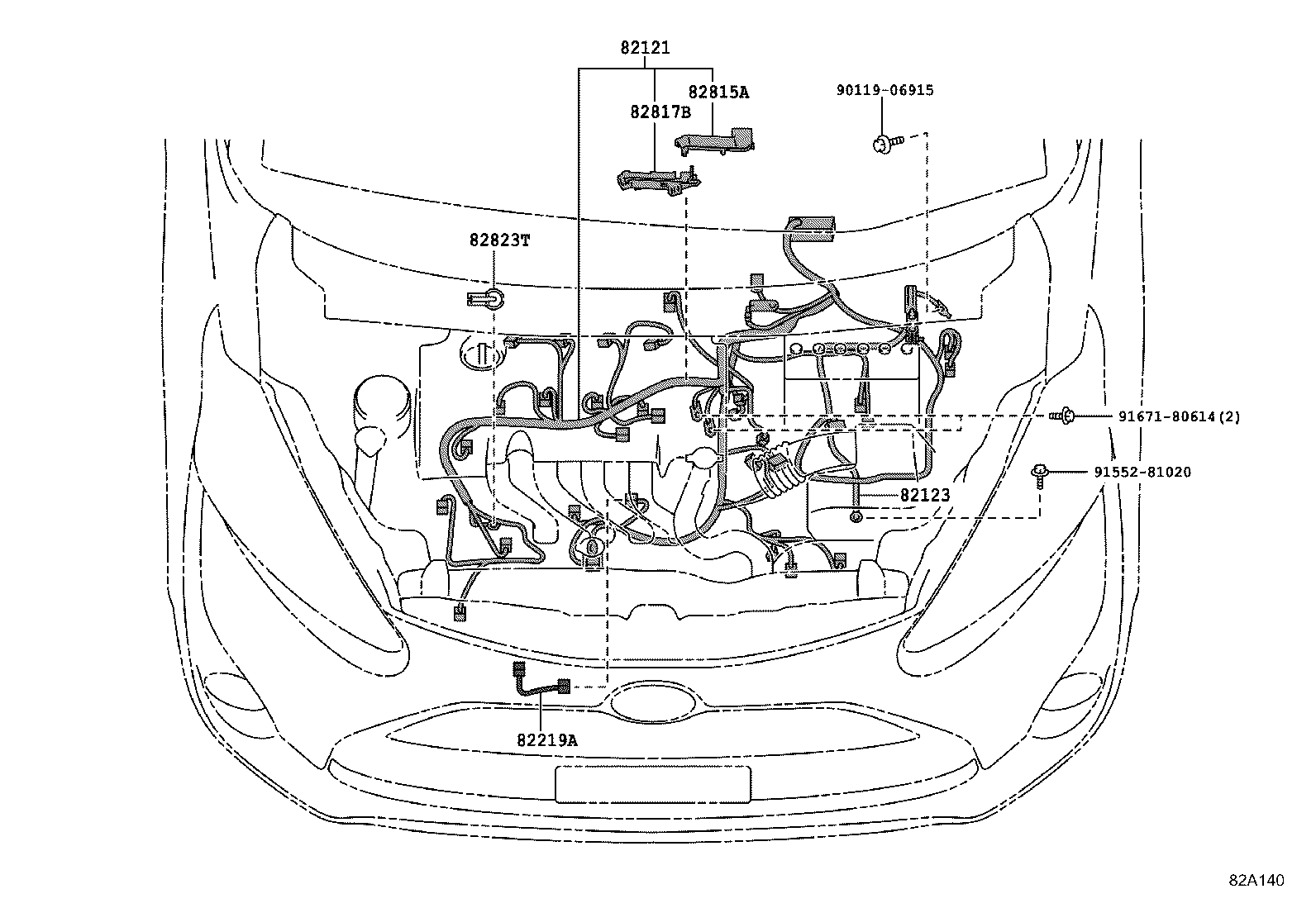

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-52T80 |
Wire, Engine
2015-06 → 2018-09
ended
|
NSP17# | ¥63,900 | |
| 82121-52U00 |
Wire, Engine
2015-06 → 2018-09
ended
|
NCP175 | ¥42,300 | |
| 82121-52U10 |
Wire, Engine
2015-07 → 2018-09
ended
|
NHP170 | ¥38,400 | |
| 82121-52P20 |
Wire, Engine
2018-09 → 2022-07
ended
|
NSP17# | ¥48,300 | |
| 82121-52P30 |
Wire, Engine
2018-09 → 2022-07
ended
|
NHP170 | ¥42,300 | |
| 82121-52U00 |
Wire, Engine
2018-09 → 2022-07
ended
|
NCP175 | ¥42,300 | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-52350 |
Wire, Engine, NO.3
2015-06 → 2018-09
ended
|
NCP175 | ¥2,400 | |
| 82123-52350 |
Wire, Engine, NO.3
2018-09 → 2022-07
ended
|
NCP175 | ¥2,400 | |
| 82219A — Wire, Sensor | ||||
| 82219-52040 |
Wire, Sensor
2015-06 → 2018-09
ended
|
NCP175 | ¥360 | |
| 82219-52040 |
Wire, Sensor
2018-09 → 2022-07
ended
|
NCP175 | ¥360 | |
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-52050 |
Cover, Wiring Harness Protector
2015-06 → 2018-09
ended
|
NCP175 | ¥650 | |
| 82815-52250 |
Cover, Wiring Harness Protector
2015-07 → 2018-09
ended
|
NHP170 | ¥970 | |
| 82815-52380 |
Cover, Wiring Harness Protector
2015-06 → 2018-09
ended
|
NSP17# | ¥700 | |
| 82815-0D220 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NHP170 | ¥1,070 | |
| 82815-52050 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NCP175 | ¥650 | |
| 82815-52380 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NSP17# | ¥700 | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-52610 |
Protector, Wiring Harness, NO.3
2015-06 → 2018-09
ended
|
NCP175 | ¥520 | |
| 82817-52A90 |
Protector, Wiring Harness, NO.3
2015-06 → 2018-09
ended
|
NSP17# | ¥1,530 | |
| 82817-52C30 |
Protector, Wiring Harness, NO.3
2015-07 → 2018-09
ended
|
NHP170 | ¥1,260 | |
| 82817-0D500 |
Protector, Wiring Harness, NO.3
2018-09 → 2022-07
ended
|
NHP170 | ¥1,350 | |
| 82817-52610 |
Protector, Wiring Harness, NO.3
2018-09 → 2022-07
ended
|
NCP175 | ¥520 | |
| 82817-52A90 |
Protector, Wiring Harness, NO.3
2018-09 → 2022-07
ended
|
NSP17# | ¥1,530 | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥390 | |
| 82823-22050 |
Cap, Alternator Terminal
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
