Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

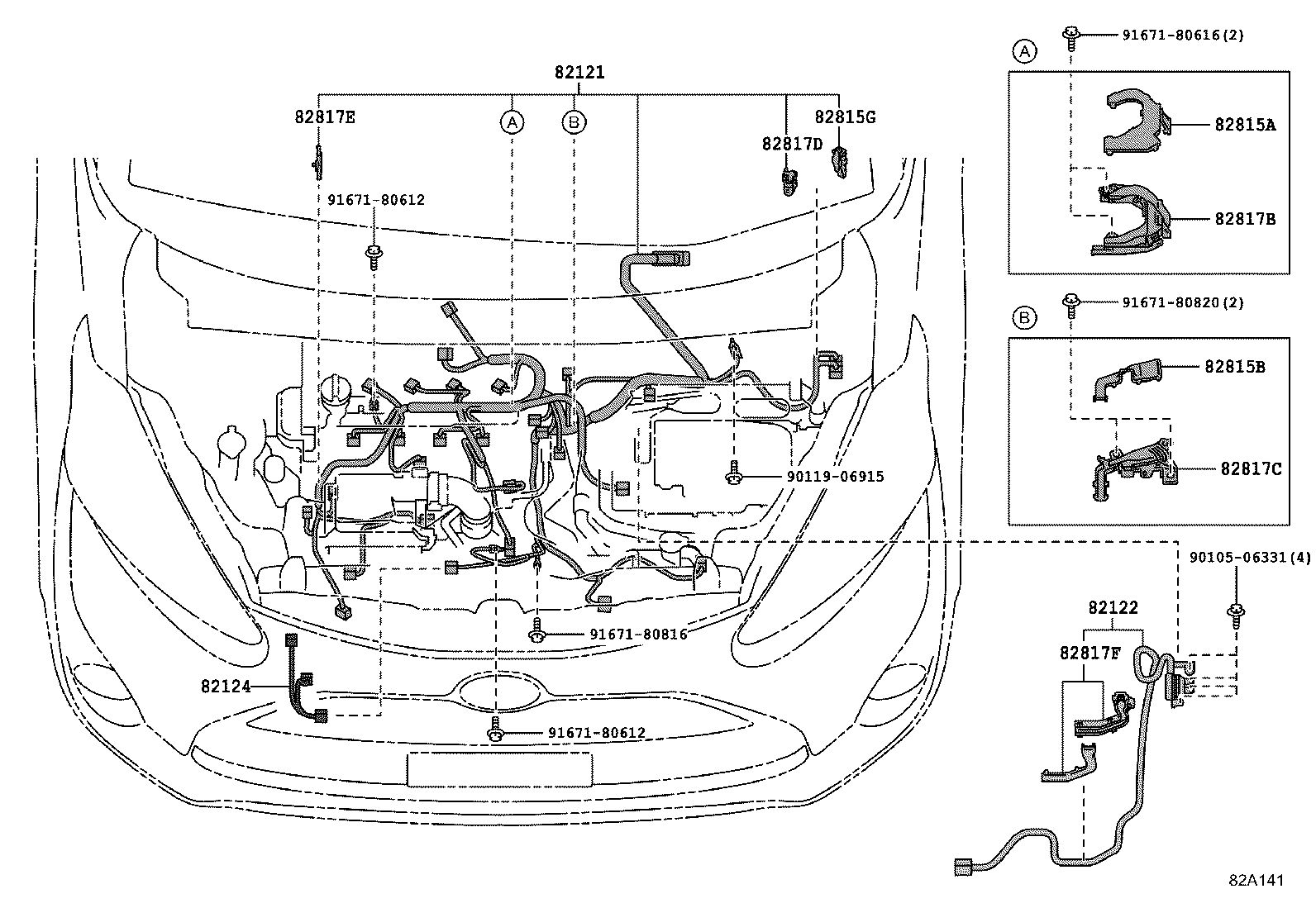

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-52T80 |
Wire, Engine
2015-06 → 2018-09
ended
|
NSP17# | ¥63,900 | |
| 82121-52U00 |
Wire, Engine
2015-06 → 2018-09
ended
|
NCP175 | ¥42,300 | |
| 82121-52U10 |
Wire, Engine
2015-07 → 2018-09
ended
|
NHP170 | ¥38,400 | |
| 82121-52P20 |
Wire, Engine
2018-09 → 2022-07
ended
|
NSP17# | ¥48,300 | |
| 82121-52P30 |
Wire, Engine
2018-09 → 2022-07
ended
|
NHP170 | ¥42,300 | |
| 82121-52U00 |
Wire, Engine
2018-09 → 2022-07
ended
|
NCP175 | ¥42,300 | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-52080 |
Wire, Engine, NO.2
2015-07 → 2018-09
ended
|
NHP170 | ¥11,200 | |
| 82122-52080 |
Wire, Engine, NO.2
2018-09 → 2022-07
ended
|
NHP170 | ¥11,200 | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-12150 |
Wire, Engine, NO.4
2015-06 → 2018-09
ended
|
NSP17# | ¥1,710 | |
| 82124-52020 |
Wire, Engine, NO.4
2015-07 → 2018-09
ended
|
NHP170 | ¥1,150 | |
| 82124-12150 |
Wire, Engine, NO.4
2018-09 → 2022-07
ended
|
NSP17# | ¥1,710 | |
| 82124-52020 |
Wire, Engine, NO.4
2018-09 → 2022-07
ended
|
NHP170 | ¥1,150 | |
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-52050 |
Cover, Wiring Harness Protector
2015-06 → 2018-09
ended
|
NCP175 | ¥650 | |
| 82815-52250 |
Cover, Wiring Harness Protector
2015-07 → 2018-09
ended
|
NHP170 | ¥970 | |
| 82815-52380 |
Cover, Wiring Harness Protector
2015-06 → 2018-09
ended
|
NSP17# | ¥700 | |
| 82815-0D220 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NHP170 | ¥1,070 | |
| 82815-52050 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NCP175 | ¥650 | |
| 82815-52380 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NSP17# | ¥700 | |
| 82815B — Cover, Wiring Harness Protector | ||||
| 82815-52260 |
Cover, Wiring Harness Protector
2015-07 → 2018-09
ended
|
NHP170 | ¥600 | |
| 82815-52400 |
Cover, Wiring Harness Protector
2015-06 → 2018-09
ended
|
NSP17# | ¥430 | |
| 82815-52260 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NHP170 | ¥600 | |
| 82815-52400 |
Cover, Wiring Harness Protector
2018-09 → 2022-07
ended
|
NSP17# | ¥430 | |
| 82815G — Cover, Wiring Harness Protector NO.5 | ||||
| 82815-52270 |
Cover, Wiring Harness Protector NO.5
2015-07 → 2018-09
ended
|
NHP170 | ¥110 | |
| 82815-52270 |
Cover, Wiring Harness Protector NO.5
2018-09 → 2022-07
ended
|
NHP170 | ¥110 | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-52610 |
Protector, Wiring Harness, NO.3
2015-06 → 2018-09
ended
|
NCP175 | ¥520 | |
| 82817-52A90 |
Protector, Wiring Harness, NO.3
2015-06 → 2018-09
ended
|
NSP17# | ¥1,530 | |
| 82817-52C30 |
Protector, Wiring Harness, NO.3
2015-07 → 2018-09
ended
|
NHP170 | ¥1,260 | |
| 82817-0D500 |
Protector, Wiring Harness, NO.3
2018-09 → 2022-07
ended
|
NHP170 | ¥1,350 | |
| 82817-52610 |
Protector, Wiring Harness, NO.3
2018-09 → 2022-07
ended
|
NCP175 | ¥520 | |
| 82817-52A90 |
Protector, Wiring Harness, NO.3
2018-09 → 2022-07
ended
|
NSP17# | ¥1,530 | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-52C40 |
Protector, Wiring Harness, NO.4
2015-07 → 2018-09
ended
|
NHP170 | ¥970 | |
| 82817-52G30 |
Protector, Wiring Harness, NO.4
2015-06 → 2018-09
ended
|
NSP17# | ¥730 | |
| 82817-52C40 |
Protector, Wiring Harness, NO.4
2018-09 → 2022-07
ended
|
NHP170 | ¥970 | |
| 82817-52G30 |
Protector, Wiring Harness, NO.4
2018-09 → 2022-07
ended
|
NSP17# | ¥730 | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-52C50 |
Protector, Wiring Harness, NO.5
2015-07 → 2018-09
ended
|
NHP170 | ¥90 | |
| 82817-52C50 |
Protector, Wiring Harness, NO.5
2018-09 → 2022-07
ended
|
NHP170 | ¥90 | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-52890 |
Protector, Wiring Harness, NO.6
2015-07 → 2018-09
ended
|
NHP170 | ¥220 | |
| 82817-52890 |
Protector, Wiring Harness, NO.6
2018-09 → 2022-07
ended
|
NHP170 | ¥220 | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-52J40 |
Protector, Wiring Harness, NO.7
2015-07 → 2018-09
ended
|
NHP170 | ¥660 | |
| 82817-52J40 |
Protector, Wiring Harness, NO.7
2018-09 → 2022-07
ended
|
NHP170 | ¥660 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
