Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

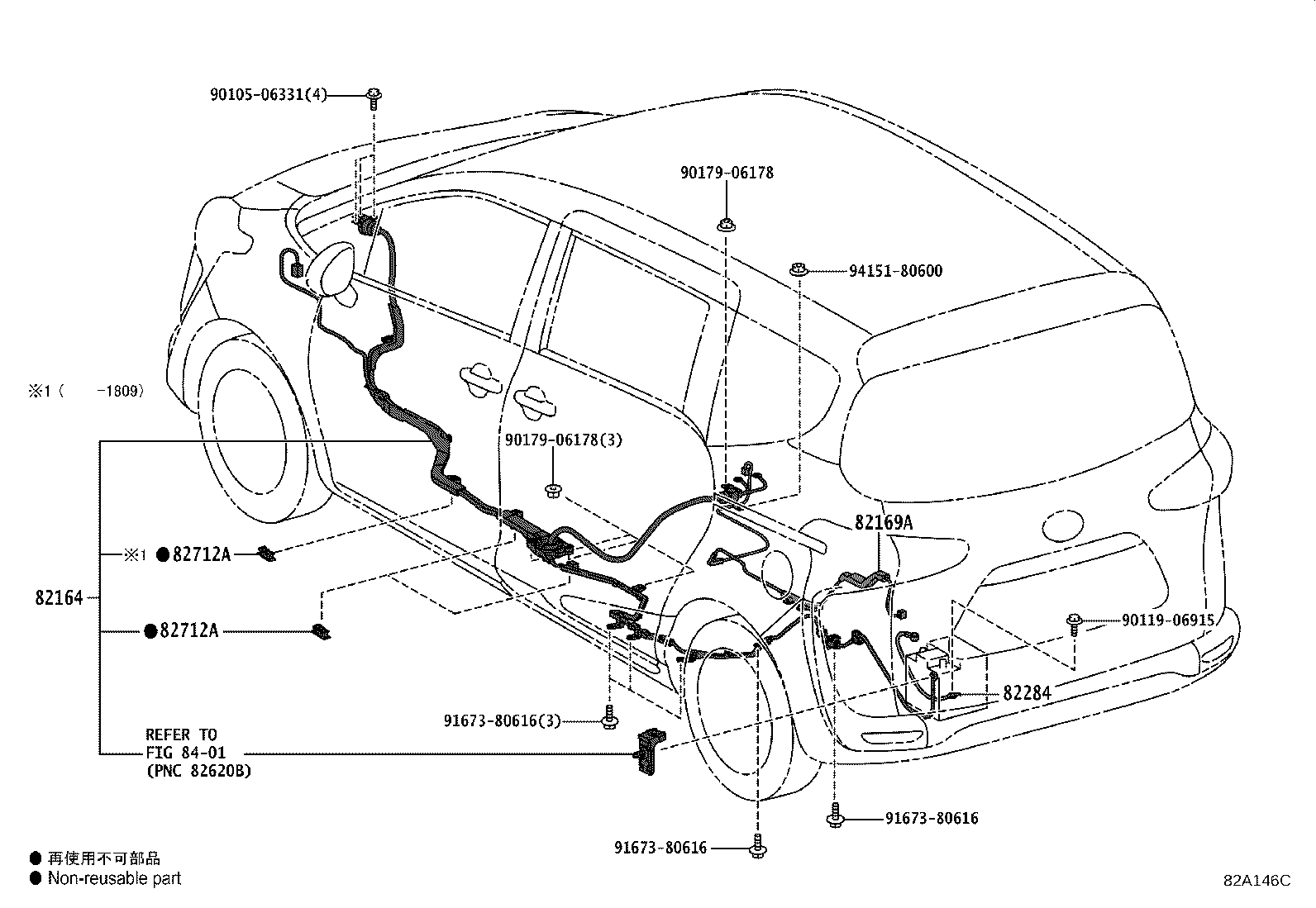

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82164 — Wire, Frame | ||||
| 82164-52200 |
Wire, Frame
2015-07 → 2018-09
ended
|
NHP170 | ¥42,300 | |
| 82164-52200 |
Wire, Frame
2018-09 → 2022-07
ended
|
NHP170 | ¥42,300 | |
| 82169A — Wire, Floor, NO.6 | ||||
| 82169-52020 note |
Wire, Floor, NO.6
2015-07 → 2018-09
ended
|
NHP170 G | ¥8,700 | |
| 82169-52021 note |
Wire, Floor, NO.6
2018-09 → 2022-07
ended
|
NHP170 FNBSG,FNGCR,G | ¥7,200 | |
| 82169-52021 note |
Wire, Floor, NO.6
2020-06 → 2022-07
ended
|
NHP170 FNBSX,GCERO,X | ¥7,200 | |
| 82284 — Wire, Earth | ||||
| 82163-52060 |
Wire, Earth
2015-07 → 2018-09
ended
|
NHP170 | ¥2,830 | |
| 82163-52061 |
Wire, Earth
2018-09 → 2022-07
ended
|
NHP170 | ¥1,970 | |
| 82712A — Support, Wiring Harness | ||||
| 82712-47270 |
Support, Wiring Harness
2015-07 → 2018-09
ended
|
NHP170 | ¥210 | |
| 82712-47270 |
Support, Wiring Harness
2018-09 → 2022-07
ended
|
NHP170 | ¥210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
