Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

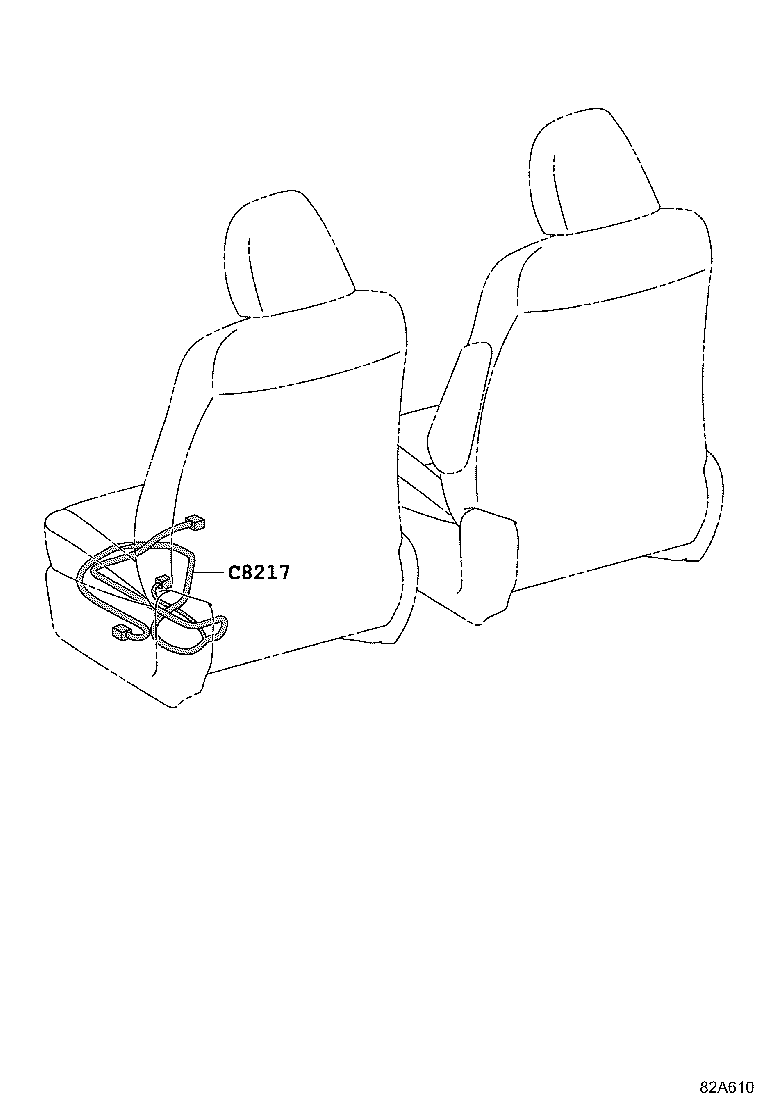

Exploded illustration 82A610 C8217 — WIRE, WELCAB SEAT MAIN (8 parts)
82A610 · 1 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
C8217 — Wire, Welcab Seat Main
C8217-D1500 note Wire, Welcab Seat Main
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,580
C8217-D1500 note Wire, Welcab Seat Main
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,580
C8217-D1500 note Wire, Welcab Seat Main
2015-12 → 2018-09 ended
NSP172 ¥1,580
C8217-D1500 note Wire, Welcab Seat Main
2015-12 → 2018-09 ended
NSP172 X ¥1,580
C8217-D1500 note Wire, Welcab Seat Main
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,580
C8217-D1500 note Wire, Welcab Seat Main
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,580
C8217-D1500 note Wire, Welcab Seat Main
2018-09 → 2022-07 ended
NSP172 ¥1,580
C8217-D1500 note Wire, Welcab Seat Main
2018-09 → 2022-07 ended
NSP172 WKX ¥1,580
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
