Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

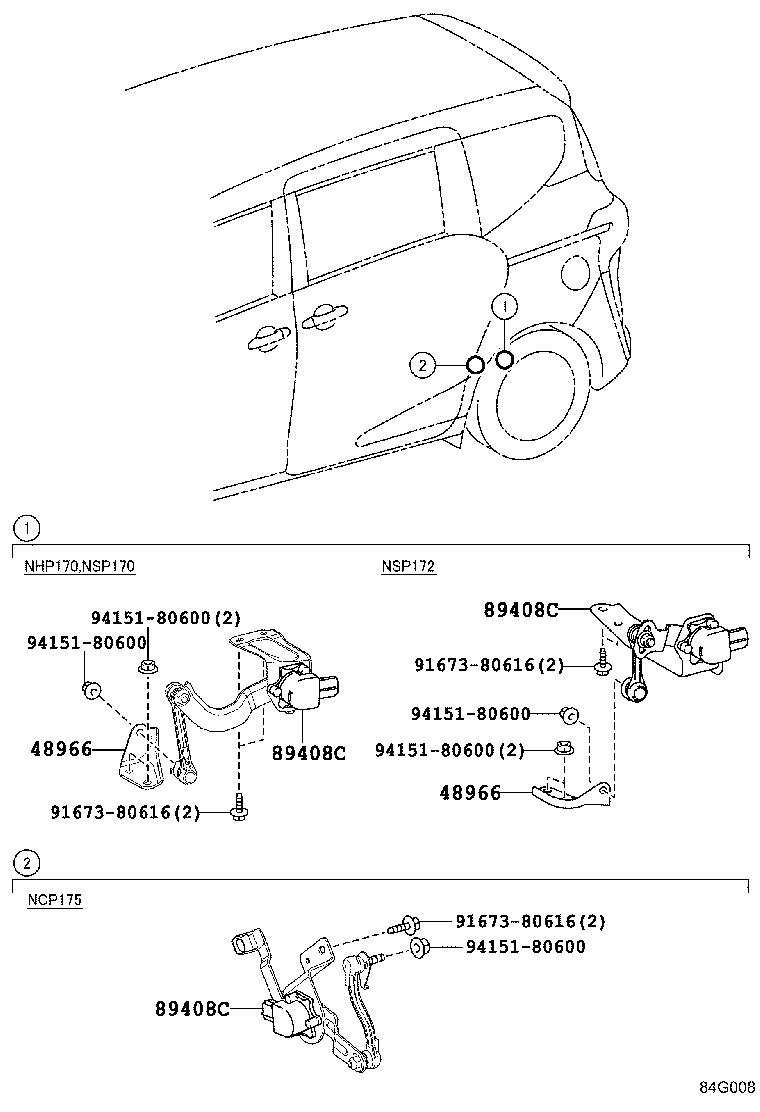

Exploded illustration 84G008 89408C — SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH (12 parts) 89408C — SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH (12 parts) 89408C — SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH (12 parts) 48966 — BRACKET, SENSOR CONNECTING, REAR (7 parts) 48966 — BRACKET, SENSOR CONNECTING, REAR (7 parts) 9167380616 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue
84G008 · 5 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
48966 — Bracket, Sensor Connecting, Rear
48966-52040 Bracket, Sensor Connecting, Rear
2015-06 → 2018-09 ended
NSP172 ¥350
48966-68010 note Bracket, Sensor Connecting, Rear
2015-06 → 2018-09 ended
NHP170,NSP170 ¥370
48966-68010 note Bracket, Sensor Connecting, Rear
2015-06 → 2018-09 ended
NHP170,NSP170 ¥370
48966-52040 Bracket, Sensor Connecting, Rear
2018-09 → 2022-07 ended
NSP172 ¥350
48966-68010 Bracket, Sensor Connecting, Rear
2018-09 → 2022-07 ended
NHP170,NSP170 FNGCR,GCERO ¥370
48966-68010 note Bracket, Sensor Connecting, Rear
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,X ¥370
48966-68010 note Bracket, Sensor Connecting, Rear
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG,FNBSX,G,X ¥370
89408C — Sensor Sub-assy, Height Control, Rear LH
89408-52010 note Sensor Sub-assy, Height Control, Rear LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥28,900
89408-52010 note Sensor Sub-assy, Height Control, Rear LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥28,900
89408-52020 Sensor Sub-assy, Height Control, Rear LH
2015-06 → 2018-09 ended
NSP172 ¥26,200
89408-52030 note Sensor Sub-assy, Height Control, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥28,900
89408-52030 note Sensor Sub-assy, Height Control, Rear LH
2015-06 → 2018-09 ended
NCP175 ¥28,900
89408-52010 Sensor Sub-assy, Height Control, Rear LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNGCR,GCERO ¥28,900
89408-52010 note Sensor Sub-assy, Height Control, Rear LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,X ¥28,900
89408-52010 note Sensor Sub-assy, Height Control, Rear LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG,FNBSX,G,X ¥28,900
89408-52020 Sensor Sub-assy, Height Control, Rear LH
2018-09 → 2022-07 ended
NSP172 ¥26,200
89408-52030 Sensor Sub-assy, Height Control, Rear LH
2018-09 → 2022-07 ended
NCP175 GCERO ¥28,900
89408-52030 note Sensor Sub-assy, Height Control, Rear LH
2018-09 → 2022-07 ended
NCP175 X ¥28,900
89408-52030 note Sensor Sub-assy, Height Control, Rear LH
2018-09 → 2022-07 ended
NCP175 G,X ¥28,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
