Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

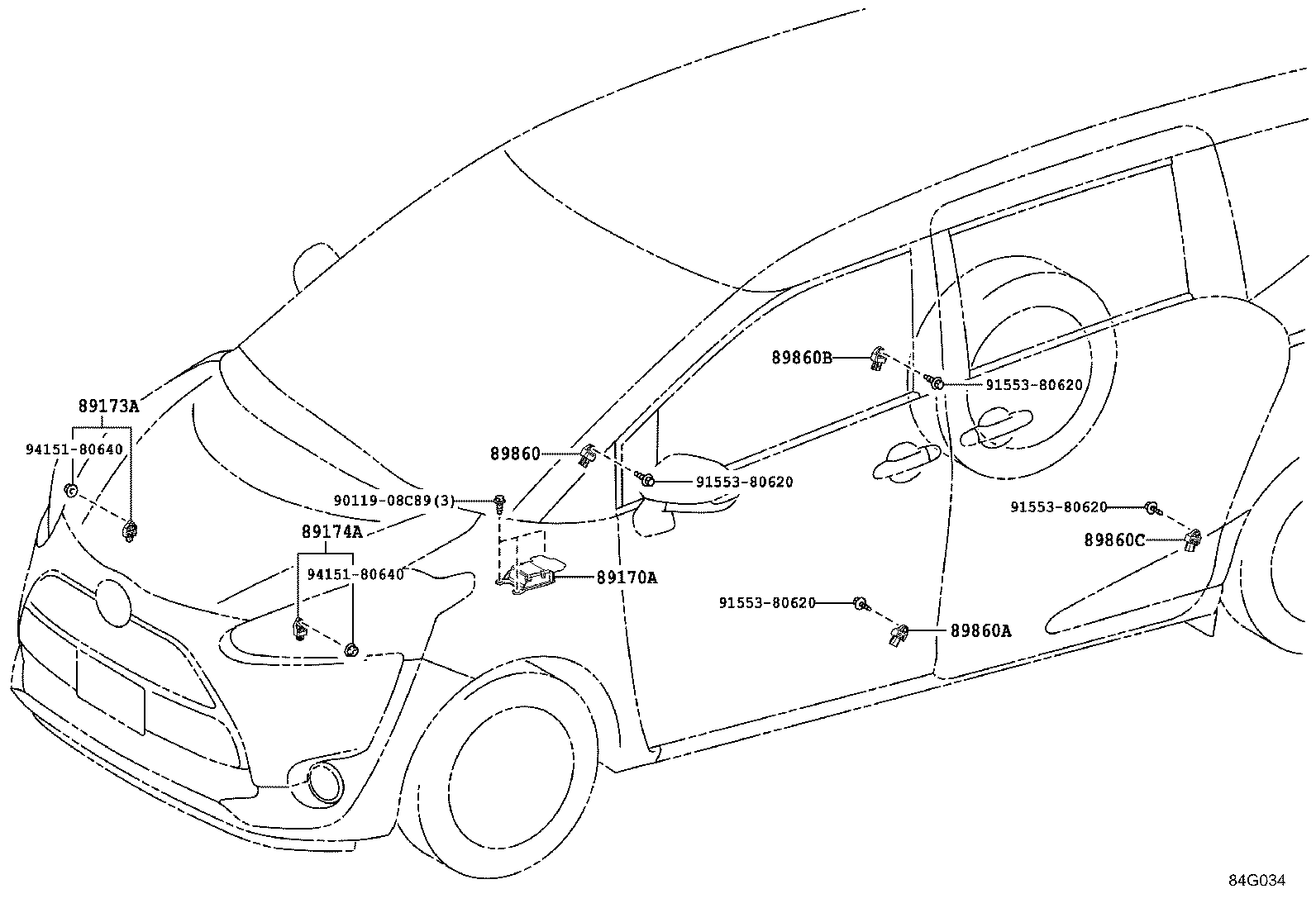

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89170A — Computer Assy, Airbag | ||||
| 89170-52P00 |
Computer Assy, Airbag
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥45,500 | |
| 89170-52P10 note |
Computer Assy, Airbag
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥54,700 | |
| 89170-52P10 note |
Computer Assy, Airbag
2015-12 → 2018-09
ended
|
NSP172 X | ¥54,700 | |
| 89170-52P10 note |
Computer Assy, Airbag
2015-06 → 2018-09
ended
|
NCP175;NSP172 G;NSP170 07S | ¥54,700 | |
| 89170-52P20 |
Computer Assy, Airbag
2015-07 → 2018-09
ended
|
NHP170 | ¥45,500 | |
| 89170-52P30 note |
Computer Assy, Airbag
2015-07 → 2018-09
ended
|
NHP170 | ¥54,700 | |
| 89170-52P30 note |
Computer Assy, Airbag
2015-07 → 2018-09
ended
|
NHP170 07S | ¥54,700 | |
| 89170-52K40 note |
Computer Assy, Airbag
2018-09 → 2022-07
ended
|
NSP172 WKX | ¥37,300 | |
| 89170-52K40 note |
Computer Assy, Airbag
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥37,300 | |
| 89170-52K40 note |
Computer Assy, Airbag
2018-09 → 2022-07
ended
|
NCP175,NSP17# G,WKG,X | ¥37,300 | |
| 89170-52K50 note |
Computer Assy, Airbag
2018-09 → 2022-07
ended
|
NHP170 | ¥37,300 | |
| 89170-52K50 note |
Computer Assy, Airbag
2018-09 → 2022-07
ended
|
NHP170 G,X | ¥37,300 | |
| 89170-52P00 |
Computer Assy, Airbag
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥45,500 | |
| 89170-52P20 |
Computer Assy, Airbag
2018-09 → 2022-07
ended
|
NHP170 | ¥45,500 | |
| 89173A — Sensor, Airbag, Front RH | ||||
| 89173-59305 |
Sensor, Airbag, Front RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89173-59305 |
Sensor, Airbag, Front RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89174A — Sensor, Airbag, Front LH | ||||
| 89173-59305 |
Sensor, Airbag, Front LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89173-59305 |
Sensor, Airbag, Front LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89860 — Sensor Assy, Side Airbag, RH | ||||
| 89831-28030 note |
Sensor Assy, Side Airbag, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, RH
2015-06 → 2018-09
ended
|
NCP175,NSP172;NHP170,NSP170 07S | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# G,WKG,WKX,X | ¥8,200 | |
| 89860A — Sensor Assy, Side Airbag, LH | ||||
| 89831-28030 note |
Sensor Assy, Side Airbag, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, LH
2015-06 → 2018-09
ended
|
NCP175,NSP172;NHP170,NSP170 07S | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# G,WKG,WKX,X | ¥8,200 | |
| 89860B — Sensor Assy, Side Airbag, RH, NO.2 | ||||
| 89831-28030 note |
Sensor Assy, Side Airbag, RH, NO.2
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, RH, NO.2
2015-06 → 2018-09
ended
|
NCP175,NSP172;NHP170,NSP170 07S | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, RH, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, RH, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# G,WKG,WKX,X | ¥8,200 | |
| 89860C — Sensor Assy, Side Airbag, LH, NO.2 | ||||
| 89831-28030 note |
Sensor Assy, Side Airbag, LH, NO.2
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, LH, NO.2
2015-06 → 2018-09
ended
|
NCP175,NSP172;NHP170,NSP170 07S | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, LH, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥8,200 | |
| 89831-28030 note |
Sensor Assy, Side Airbag, LH, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# G,WKG,WKX,X | ¥8,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
