Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

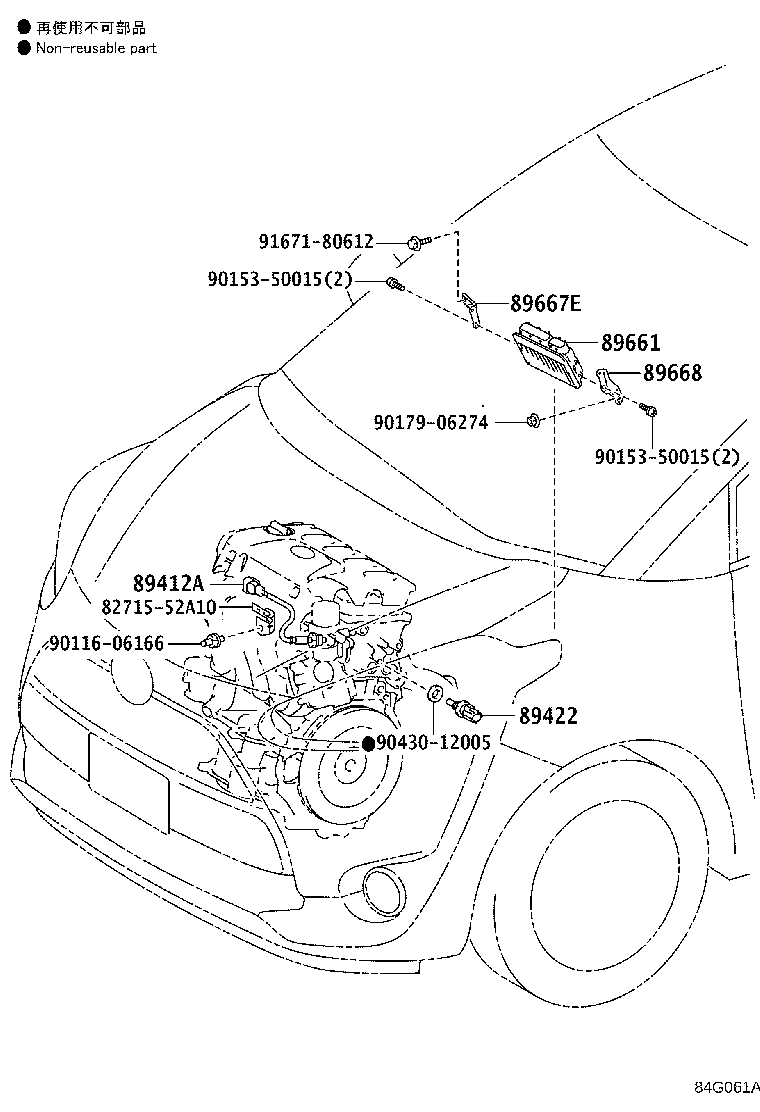

Exploded illustration 84G061A 89668 — BRACKET, ENGINE CONTROL COMPUTER, NO.2 (2 parts) 89661 — COMPUTER, ENGINE CONTROL (8 parts) 89667E — BRACKET, ENGINE CONTROL COMPUTER, NO.1 (2 parts) 9015350015 — not listed in this catalogue 9017906274 — not listed in this catalogue 9167180612 — not listed in this catalogue 9015350015 — not listed in this catalogue 9011606166 — not listed in this catalogue 8271552A10 — not listed in this catalogue 89412A — SENSOR, E.G.R GAS TEMPERATURE (2 parts) 89422 — SENSOR, WATER TEMPERATURE (FOR E.F.I.) (2 parts) 9043012005 — not listed in this catalogue
84G061A · 5 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
89412A — Sensor, E.G.R Gas Temperature
89412-35020 Sensor, E.G.R Gas Temperature
2015-06 → 2018-09 ended
NCP175 ¥6,500
89412-35020 Sensor, E.G.R Gas Temperature
2018-09 → 2022-07 ended
NCP175 ¥6,500
89422 — Sensor, Water Temperature (FOR E.F.I.)
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,410
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,410
89661 — Computer, Engine Control
89661-5C580 note Computer, Engine Control
2015-07 → 2018-09 ended
NHP170 ¥107,000
89661-5C590 note Computer, Engine Control
2015-06 → 2018-09 ended
NSP17# ¥107,000
89661-5C610 note Computer, Engine Control
2015-06 → 2018-09 ended
NCP175 ¥107,000
89661-5C550 note Computer, Engine Control
2018-09 → 2022-07 ended
NHP170 ¥89,100
89661-5C890 note Computer, Engine Control
2018-09 → 2020-06 ended
NSP17# ¥107,000
89661-5CA00 note Computer, Engine Control
2018-09 → 2020-06 ended
NCP175 ¥107,000
89661-5CD30 note Computer, Engine Control
2020-06 → 2022-07 ended
NSP17# ¥89,100
89661-5CD40 note Computer, Engine Control
2020-06 → 2022-07 ended
NCP175 ¥89,100
89667E — Bracket, Engine Control Computer, NO.1
89667-52340 Bracket, Engine Control Computer, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
89667-52340 Bracket, Engine Control Computer, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥280
89668 — Bracket, Engine Control Computer, NO.2
89668-52350 Bracket, Engine Control Computer, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
89668-52350 Bracket, Engine Control Computer, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
