Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

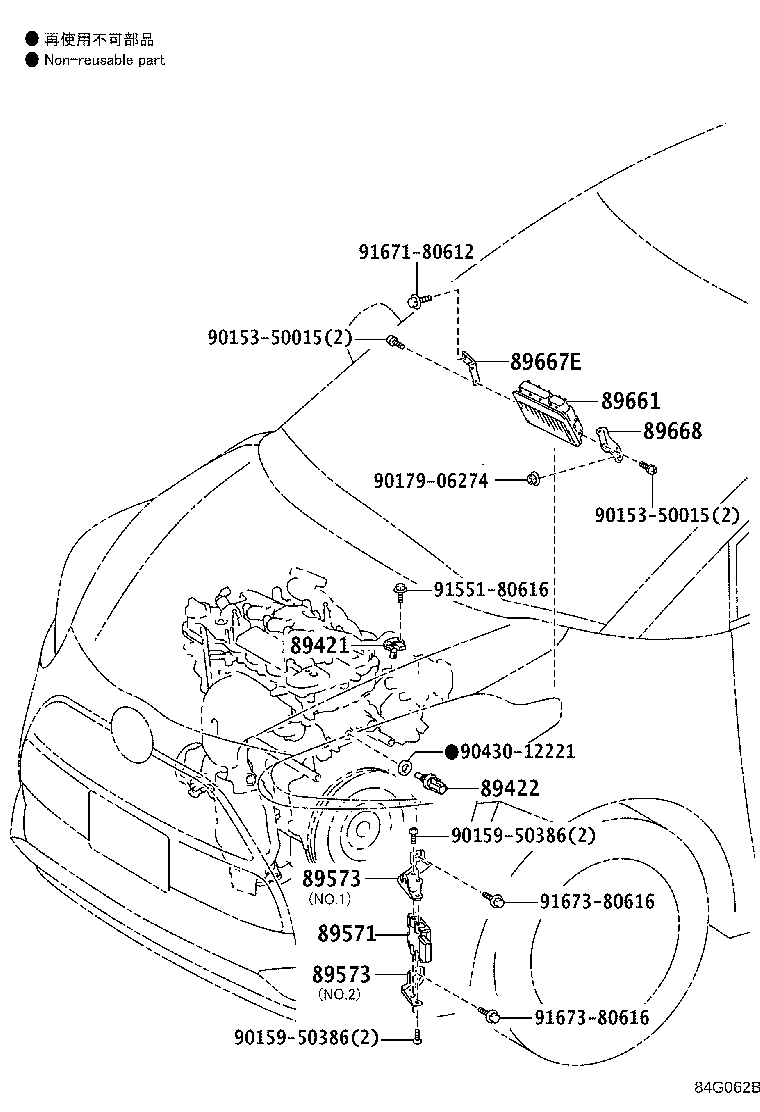

Exploded illustration 84G062B 89668 — BRACKET, ENGINE CONTROL COMPUTER, NO.2 (2 parts) 89661 — COMPUTER, ENGINE CONTROL (8 parts) 89667E — BRACKET, ENGINE CONTROL COMPUTER, NO.1 (2 parts) 9015350015 — not listed in this catalogue 9017906274 — not listed in this catalogue 9167180612 — not listed in this catalogue 9015350015 — not listed in this catalogue 89422 — SENSOR, WATER TEMPERATURE (FOR E.F.I.) (2 parts) 9043012221 — not listed in this catalogue 9155180616 — not listed in this catalogue 89421 — SENSOR ASSY, VACUUM (FOR E.F.I.) (2 parts) 89573 — BRACKET, FUEL PUMP CONTROL COMPUTER (4 parts) 89573 — BRACKET, FUEL PUMP CONTROL COMPUTER (4 parts) 89571 — COMPUTER, FUEL PUMP CONTROL (2 parts) 9015950386 — not listed in this catalogue 9015950386 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue
84G062B · 8 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
89421 — Sensor Assy, Vacuum (FOR E.F.I.)
89421-47010 Sensor Assy, Vacuum (FOR E.F.I.)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥5,900
89421-47010 Sensor Assy, Vacuum (FOR E.F.I.)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥5,900
89422 — Sensor, Water Temperature (FOR E.F.I.)
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,410
89422-33030 Sensor, Water Temperature (FOR E.F.I.)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,410
89571 — Computer, Fuel Pump Control
89571-34070 Computer, Fuel Pump Control
2015-06 → 2018-09 ended
NSP17# ¥9,900
89571-34070 Computer, Fuel Pump Control
2018-09 → 2022-07 ended
NSP17# ¥9,900
89573 — Bracket, Fuel Pump Control Computer
89573-52030 note Bracket, Fuel Pump Control Computer
2015-06 → 2018-09 ended
NSP17# ¥620
89573-52040 note Bracket, Fuel Pump Control Computer
2015-06 → 2018-09 ended
NSP17# ¥360
89573-52030 note Bracket, Fuel Pump Control Computer
2018-09 → 2022-07 ended
NSP17# ¥620
89573-52040 note Bracket, Fuel Pump Control Computer
2018-09 → 2022-07 ended
NSP17# ¥360
89661 — Computer, Engine Control
89661-5C580 note Computer, Engine Control
2015-07 → 2018-09 ended
NHP170 ¥107,000
89661-5C590 note Computer, Engine Control
2015-06 → 2018-09 ended
NSP17# ¥107,000
89661-5C610 note Computer, Engine Control
2015-06 → 2018-09 ended
NCP175 ¥107,000
89661-5C550 note Computer, Engine Control
2018-09 → 2022-07 ended
NHP170 ¥89,100
89661-5C890 note Computer, Engine Control
2018-09 → 2020-06 ended
NSP17# ¥107,000
89661-5CA00 note Computer, Engine Control
2018-09 → 2020-06 ended
NCP175 ¥107,000
89661-5CD30 note Computer, Engine Control
2020-06 → 2022-07 ended
NSP17# ¥89,100
89661-5CD40 note Computer, Engine Control
2020-06 → 2022-07 ended
NCP175 ¥89,100
89667E — Bracket, Engine Control Computer, NO.1
89667-52340 Bracket, Engine Control Computer, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
89667-52340 Bracket, Engine Control Computer, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥280
89668 — Bracket, Engine Control Computer, NO.2
89668-52350 Bracket, Engine Control Computer, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
89668-52350 Bracket, Engine Control Computer, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
