Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

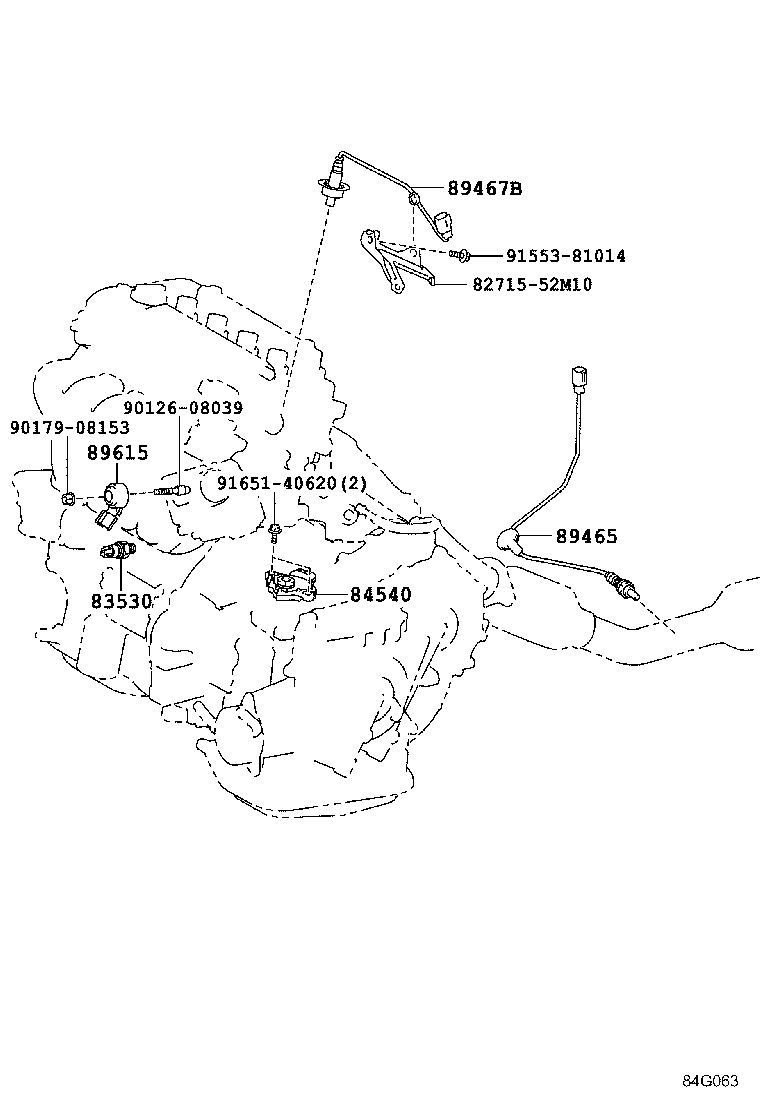

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,970 | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,970 | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,970 | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,970 | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-52070 |
Switch Assy, Neutral Start
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥7,600 | |
| 84540-52070 |
Switch Assy, Neutral Start
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥7,600 | |
| 89465 — Sensor, Oxygen | ||||
| 89465-52670 |
Sensor, Oxygen
2015-07 → 2018-09
ended
|
NHP170 | ¥6,500 | |
| 89465-52740 |
Sensor, Oxygen
2015-06 → 2018-09
ended
|
NSP17# | ¥6,500 | |
| 89465-52810 |
Sensor, Oxygen
2015-06 → 2018-09
ended
|
NCP175 | ¥7,100 | |
| 89465-52670 |
Sensor, Oxygen
2018-09 → 2022-07
ended
|
NHP170 | ¥6,500 | |
| 89465-52740 |
Sensor, Oxygen
2018-09 → 2022-07
ended
|
NSP17# | ¥6,500 | |
| 89465-52810 |
Sensor, Oxygen
2018-09 → 2022-07
ended
|
NCP175 | ¥7,100 | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-52080 |
Sensor, Air Fuel Ratio
2015-07 → 2018-09
ended
|
NHP170 | ¥9,900 | |
| 89467-52120 |
Sensor, Air Fuel Ratio
2015-06 → 2018-09
ended
|
NCP175 | ¥9,900 | |
| 89467-52240 |
Sensor, Air Fuel Ratio
2015-06 → 2018-09
ended
|
NSP17# | ¥9,900 | |
| 89467-52080 |
Sensor, Air Fuel Ratio
2018-09 → 2022-07
ended
|
NHP170 | ¥9,900 | |
| 89467-52120 |
Sensor, Air Fuel Ratio
2018-09 → 2022-07
ended
|
NCP175 | ¥9,900 | |
| 89467-52240 |
Sensor, Air Fuel Ratio
2018-09 → 2022-07
ended
|
NSP17# | ¥9,900 | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,370 | |
| 89615-20090 |
Sensor, Knock Control
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
