Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

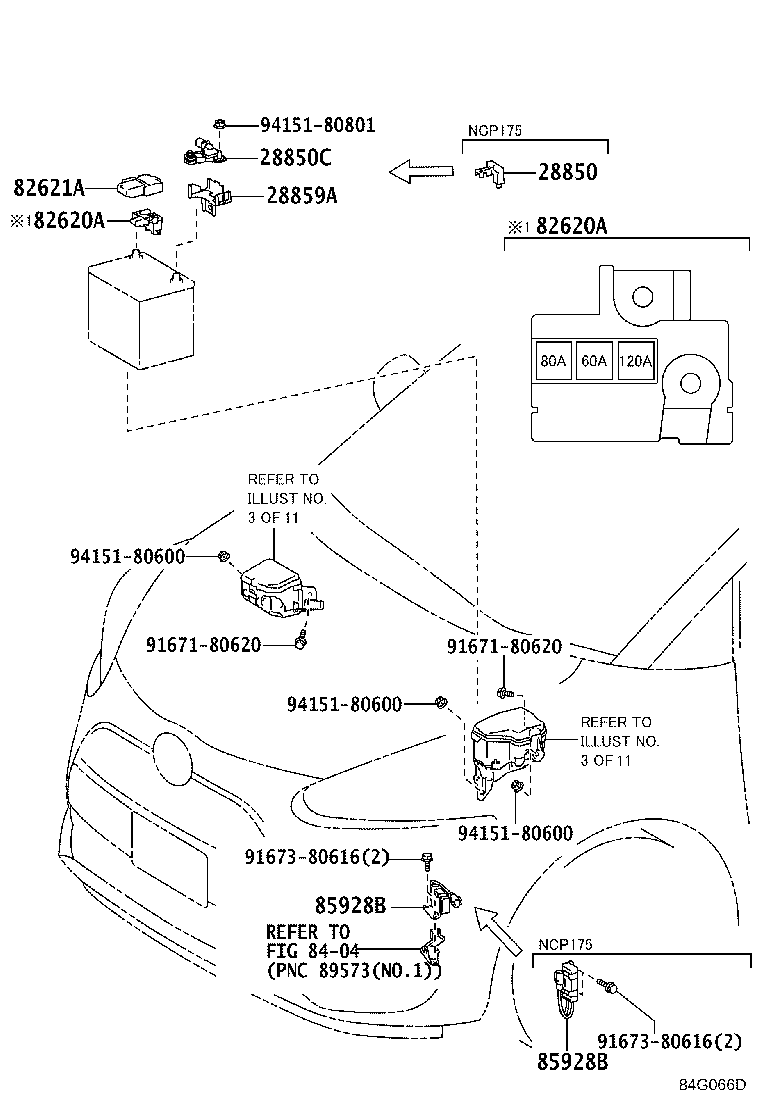

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850 — Sensor Assy, Battery Current | ||||
| 28850-40010 |
Sensor Assy, Battery Current
2015-06 → 2018-09
ended
|
1NZFE NCP175 | ¥5,500 | |
| 28850-40010 |
Sensor Assy, Battery Current
2018-09 → 2022-07
ended
|
1NZFE NCP175 | ¥5,500 | |
| 28850C — Sensor Assy, Battery State | ||||
| 28850-36030 |
Sensor Assy, Battery State
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥7,400 | |
| 28850-36030 |
Sensor Assy, Battery State
2018-09 → 2022-07
ended
|
1NZFXE,2NRFKE NHP170,NSP17# | ¥7,400 | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-47020 |
Holder, Battery Current Sensor
2015-06 → 2018-09
ended
|
2NRFKE NSP17# | ¥490 | |
| 28859-21040 |
Holder, Battery Current Sensor
2018-09 → 2022-07
ended
|
1NZFXE NHP170 | ¥520 | |
| 28859-47020 |
Holder, Battery Current Sensor
2018-09 → 2022-07
ended
|
2NRFKE NSP17# | ¥490 | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-52060 |
Block Assy, Fusible Link
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥840 | |
| 82620-52091 |
Block Assy, Fusible Link
2015-07 → 2018-09
ended
|
NHP170 | ¥2,210 | |
| 82620-52060 |
Block Assy, Fusible Link
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥840 | |
| 82620-52091 |
Block Assy, Fusible Link
2018-09 → 2022-07
ended
|
NHP170 | ¥2,210 | |
| 82621A — Cover, Fusible Link | ||||
| 82621-52150 |
Cover, Fusible Link
2015-06 → 2016-01
ended
|
NCP175,NSP17# | ¥870 | |
| 82621-52160 |
Cover, Fusible Link
2016-02 → 2018-09
ended
|
NCP175,NSP17# | ¥750 | |
| 82621-52160 |
Cover, Fusible Link
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥750 | |
| 85928B — Resistor, Cooling Fan | ||||
| 85928-52032 |
Resistor, Cooling Fan
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥4,730 | |
| 85928-52032 |
Resistor, Cooling Fan
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥4,730 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
