Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

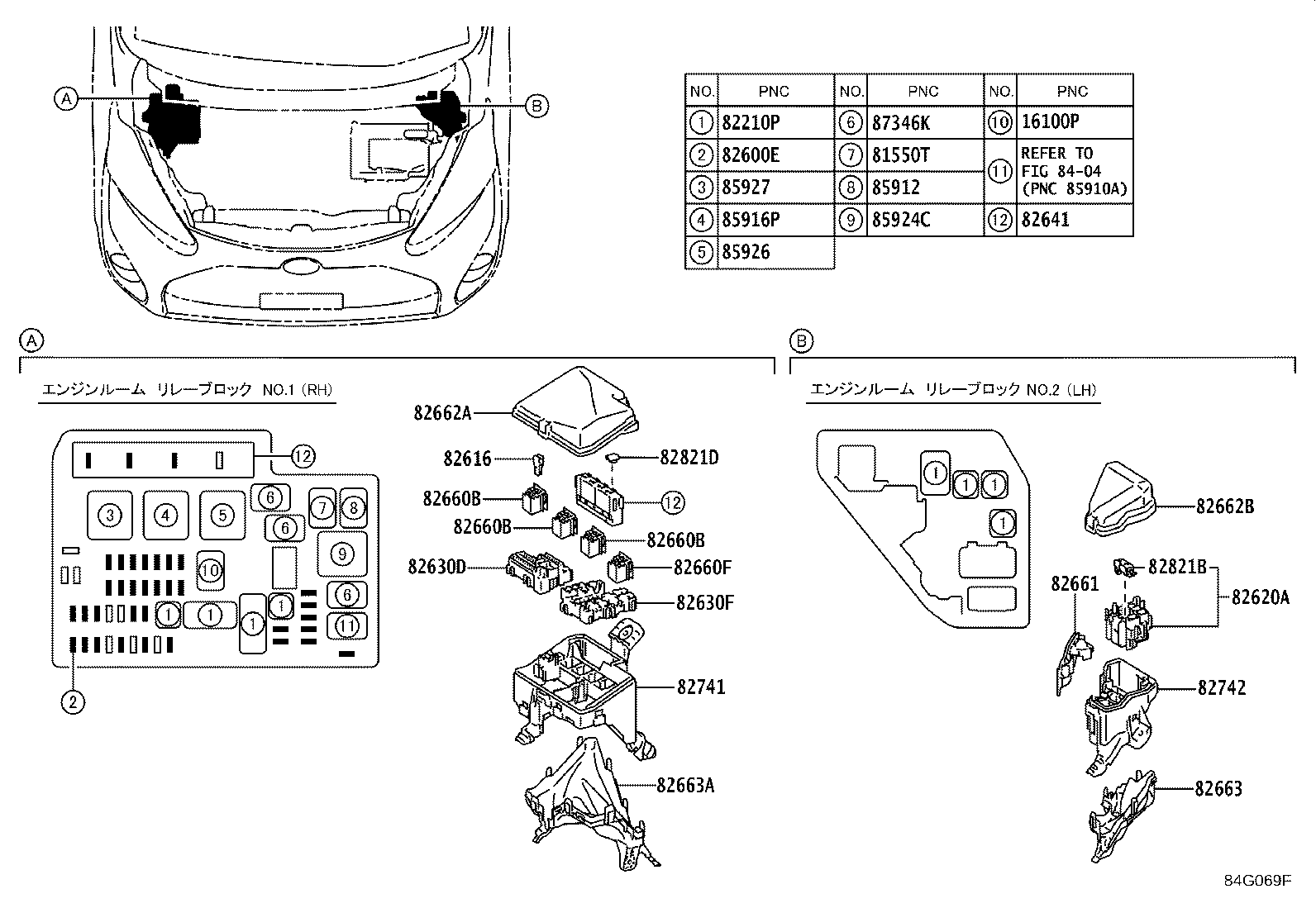

Exploded illustration 84G069F 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (4 parts) 82620A — BLOCK ASSY, FUSIBLE LINK (4 parts) 82821B — COVER, CONNECTOR (3 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (4 parts) 82660B — BLOCK ASSY, RELAY (2 parts) 82660B — BLOCK ASSY, RELAY (2 parts) 82660B — BLOCK ASSY, RELAY (2 parts) 82660F — BLOCK ASSY, RELAY (2 parts) 82630F — HOLDER, FUSE (4 parts) 82630D — HOLDER, FUSE (4 parts) 82663 — COVER, RELAY BLOCK, LOWER (4 parts) 82661 — COVER, RELAY BLOCK, NO.1 (2 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (4 parts) 82742 — BLOCK, ENGINE ROOM RELAY, NO.2 (4 parts) 82741 — BLOCK, ENGINE ROOM RELAY (4 parts) 82616 — PULLER, FUSE (2 parts) 85927 — RELAY, COOLING FAN (4 parts) 82600E — ENGINE ROOM FUSE (14 parts) 82210P — ENGINE ROOM FUSIBLE LINK (14 parts) 85916P — RELAY, HEADLAMP (2 parts) 85926 — RELAY, HEADLAMP DIMMER (2 parts) 16100P — RELAY, WATER PUMP (2 parts) 82641 — RELAY, INTEGRATION NO.1 (6 parts) 87346K — RELAY, PTC HEATER (4 parts) 85912 — RELAY, DEFOGGER (3 parts) 81550T — RELAY, BACK UP LAMP (2 parts) 8404 — not listed in this catalogue 85924C — RELAY, IGCT (2 parts) 82821D — COVER, CONNECTOR (2 parts)
84G069F · 28 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
16100P — Relay, Water Pump
90987-02027 Relay, Water Pump
2015-07 → 2018-09 ended
1NZFXE NHP170 ¥2,930
90987-02027 Relay, Water Pump
2018-09 → 2022-07 ended
1NZFXE NHP170 ¥2,930
81550T — Relay, Back UP Lamp
90987-02027 Relay, Back UP Lamp
2015-07 → 2018-09 ended
NHP170 ¥2,930
90987-02027 Relay, Back UP Lamp
2018-09 → 2022-07 ended
NHP170 ¥2,930
82210P — Engine Room Fusible Link
90982-08246 note Engine Room Fusible Link
2015-07 → 2018-09 ended
NHP170 ¥440
90982-08294 note Engine Room Fusible Link
2015-07 → 2018-09 ended
NHP170 ¥390
90982-08295 note Engine Room Fusible Link
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥390
90982-08296 note Engine Room Fusible Link
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥390
90982-08301 note Engine Room Fusible Link
2015-06 → 2018-09 ended
NCP175,NSP17# ¥390
90982-08302 note Engine Room Fusible Link
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥390
90982-08305 note Engine Room Fusible Link
2015-06 → 2018-09 ended
NCP175,NSP17# ¥390
90982-08246 note Engine Room Fusible Link
2018-09 → 2022-07 ended
NHP170 ¥440
90982-08294 note Engine Room Fusible Link
2018-09 → 2022-07 ended
NHP170 ¥390
90982-08295 note Engine Room Fusible Link
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥390
90982-08296 note Engine Room Fusible Link
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥390
90982-08301 note Engine Room Fusible Link
2018-09 → 2022-07 ended
NCP175,NSP17# ¥390
90982-08302 note Engine Room Fusible Link
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥390
90982-08305 note Engine Room Fusible Link
2018-09 → 2022-07 ended
NCP175,NSP17# ¥390
82600E — Engine Room Fuse
90982-09019 note Engine Room Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09020 note Engine Room Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09021 note Engine Room Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09022 note Engine Room Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09023 note Engine Room Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09024 note Engine Room Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09025 note Engine Room Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90982-09019 note Engine Room Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09020 note Engine Room Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09021 note Engine Room Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09022 note Engine Room Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09023 note Engine Room Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09024 note Engine Room Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09025 note Engine Room Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥210
82616-58010 Puller, Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥210
82620A — Block Assy, Fusible Link
82620-52060 Block Assy, Fusible Link
2015-06 → 2018-09 ended
NCP175,NSP17# ¥840
82620-52091 Block Assy, Fusible Link
2015-07 → 2018-09 ended
NHP170 ¥2,210
82620-52060 Block Assy, Fusible Link
2018-09 → 2022-07 ended
NCP175,NSP17# ¥840
82620-52091 Block Assy, Fusible Link
2018-09 → 2022-07 ended
NHP170 ¥2,210
82630D — Holder, Fuse
82631-52030 Holder, Fuse
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,850
82631-52050 Holder, Fuse
2015-07 → 2018-09 ended
NHP170 ¥2,090
82631-52030 Holder, Fuse
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,850
82631-52050 Holder, Fuse
2018-09 → 2022-07 ended
NHP170 ¥2,090
82630F — Holder, Fuse
82631-52040 Holder, Fuse
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,210
82631-52060 Holder, Fuse
2015-07 → 2018-09 ended
NHP170 ¥2,160
82631-52040 Holder, Fuse
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,210
82631-52060 Holder, Fuse
2018-09 → 2022-07 ended
NHP170 ¥2,160
82641 — Relay, Integration NO.1
82641-47020 Relay, Integration NO.1
2015-07 → 2018-09 ended
NHP170 ¥5,400
82641-52020 Relay, Integration NO.1
2015-06 → 2018-09 ended
NCP175 ¥5,400
82641-52030 Relay, Integration NO.1
2015-06 → 2018-09 ended
NSP17# ¥5,400
82641-47020 Relay, Integration NO.1
2018-09 → 2022-07 ended
NHP170 ¥5,400
82641-52020 Relay, Integration NO.1
2018-09 → 2022-07 ended
NCP175 ¥5,400
82641-52030 Relay, Integration NO.1
2018-09 → 2022-07 ended
NSP17# ¥5,400
82660B — Block Assy, Relay
82660-0H070 Block Assy, Relay
2015-07 → 2018-09 ended
NHP170 ¥530
82660-0H070 Block Assy, Relay
2018-09 → 2022-07 ended
NHP170 ¥530
82660F — Block Assy, Relay
82660-52010 Block Assy, Relay
2015-07 → 2018-09 ended
NHP170 ¥530
82660-52010 Block Assy, Relay
2018-09 → 2022-07 ended
NHP170 ¥530
82661 — Cover, Relay Block, NO.1
82661-52030 Cover, Relay Block, NO.1
2015-07 → 2018-09 ended
NHP170 ¥480
82661-52030 Cover, Relay Block, NO.1
2018-09 → 2022-07 ended
NHP170 ¥480
82662A — Cover, Relay Block, Upper, NO.1
82662-52A40 Cover, Relay Block, Upper, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,820
82662-52A50 Cover, Relay Block, Upper, NO.1
2015-07 → 2018-09 ended
NHP170 ¥2,140
82662-52B20 Cover, Relay Block, Upper, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,420
82662-52B30 Cover, Relay Block, Upper, NO.1
2018-09 → 2022-07 ended
NHP170 ¥1,790
82662B — Cover, Relay Block, Upper, NO.2
82662-52A30 Cover, Relay Block, Upper, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,240
82662-52A60 Cover, Relay Block, Upper, NO.2
2015-07 → 2018-09 ended
NHP170 ¥1,070
82662-52A60 Cover, Relay Block, Upper, NO.2
2018-09 → 2022-07 ended
NHP170 ¥1,070
82662-52B10 Cover, Relay Block, Upper, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,030
82663 — Cover, Relay Block, Lower
82663-52080 Cover, Relay Block, Lower
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,540
82663-52100 Cover, Relay Block, Lower
2015-07 → 2018-09 ended
NHP170 ¥1,080
82663-52080 Cover, Relay Block, Lower
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,540
82663-52100 Cover, Relay Block, Lower
2018-09 → 2022-07 ended
NHP170 ¥1,080
82663A — Cover, Relay Block, Lower, NO.2
82663-52090 Cover, Relay Block, Lower, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,050
82663-52110 Cover, Relay Block, Lower, NO.2
2015-07 → 2018-09 ended
NHP170 ¥1,900
82663-52090 Cover, Relay Block, Lower, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,050
82663-52110 Cover, Relay Block, Lower, NO.2
2018-09 → 2022-07 ended
NHP170 ¥1,900
82741 — Block, Engine Room Relay
82741-12130 Block, Engine Room Relay
2015-06 → 2018-09 ended
NCP175,NSP17# ¥3,100
82741-52100 Block, Engine Room Relay
2015-07 → 2018-09 ended
NHP170 ¥3,720
82741-12130 Block, Engine Room Relay
2018-09 → 2022-07 ended
NCP175,NSP17# ¥3,100
82741-52100 Block, Engine Room Relay
2018-09 → 2022-07 ended
NHP170 ¥3,720
82742 — Block, Engine Room Relay, NO.2
82741-52080 Block, Engine Room Relay, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,080
82741-52090 Block, Engine Room Relay, NO.2
2015-07 → 2018-09 ended
NHP170 ¥2,250
82741-52080 Block, Engine Room Relay, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,080
82741-52090 Block, Engine Room Relay, NO.2
2018-09 → 2022-07 ended
NHP170 ¥2,250
82821B — Cover, Connector
82821-52270 Cover, Connector
2015-07 → 2018-09 ended
NHP170 ¥90
82821-52270 Cover, Connector
2018-09 → 2020-06 ended
NHP170 GCERO ¥90
82821-52270 Cover, Connector
2018-09 → 2022-07 ended
NHP170 FNBSG,FNBSX,G,X ¥90
82821D — Cover, Connector
82821-47090 Cover, Connector
2015-07 → 2018-09 ended
NHP170 ¥10
82821-47090 Cover, Connector
2018-09 → 2022-07 ended
NHP170 ¥10
85912 — Relay, Defogger
90987-02027 Relay, Defogger
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,930
90987-04004 Relay, Defogger
2015-07 → 2018-09 ended
NHP170 ¥2,810
90987-02027 Relay, Defogger
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,930
85916P — Relay, Headlamp
90987-02025 Relay, Headlamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,930
90987-02025 Relay, Headlamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,930
85924C — Relay, Igct
90987-02025 Relay, Igct
2015-07 → 2018-09 ended
NHP170 ¥2,930
90987-02025 Relay, Igct
2018-09 → 2022-07 ended
NHP170 ¥2,930
85926 — Relay, Headlamp Dimmer
90987-02025 Relay, Headlamp Dimmer
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,930
90987-02025 Relay, Headlamp Dimmer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,930
85927 — Relay, Cooling Fan
90987-02025 Relay, Cooling Fan
2015-07 → 2018-09 ended
NHP170 ¥2,930
90987-02027 Relay, Cooling Fan
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,930
90987-02025 Relay, Cooling Fan
2018-09 → 2022-07 ended
NHP170 ¥2,930
90987-02027 Relay, Cooling Fan
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,930
87346K — Relay, Ptc Heater
90987-02027 note Relay, Ptc Heater
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,930
90987-02027 note Relay, Ptc Heater
2015-07 → 2018-09 ended
NHP170 ¥2,930
90987-02027 note Relay, Ptc Heater
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,930
90987-02027 note Relay, Ptc Heater
2018-09 → 2022-07 ended
NHP170 ¥2,930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
