Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

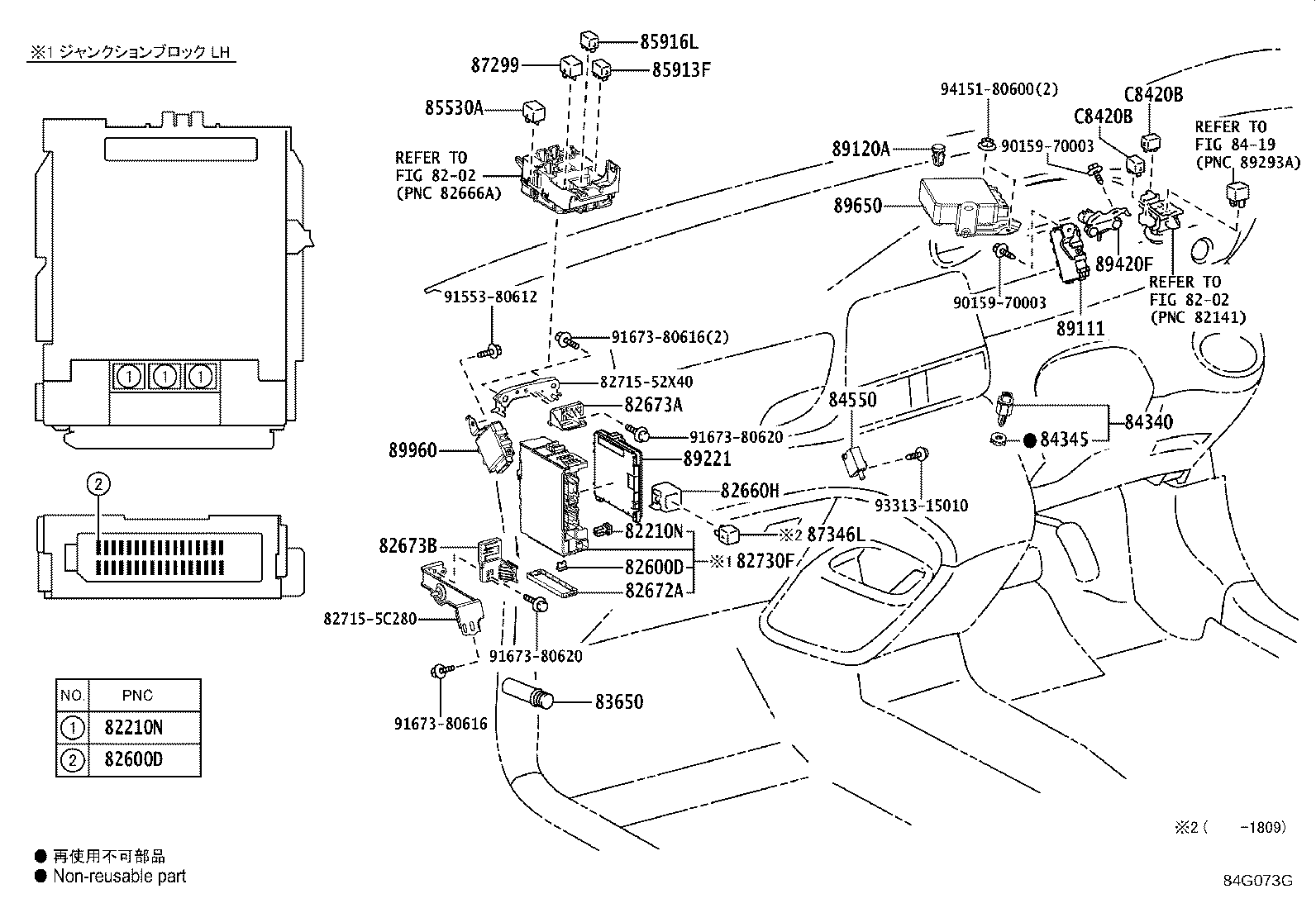

Exploded illustration 84G073G 8202 — not listed in this catalogue 82673A — BRACKET, JUNCTION BLOCK, NO.1 (2 parts) 82673B — BRACKET, JUNCTION BLOCK, NO.2 (2 parts) 89960 — COMPUTER ASSY, HEADLAMP LEVELING (12 parts) 83650 — FUSEE (2 parts) 84340 — SWITCH ASSY, STOP LAMP (4 parts) 84345 — ADJUSTER, STOP LAMP SWITCH MOUNTING (2 parts) 84550 — SWITCH ASSY, PARKING BRAKE (2 parts) 85530A — RELAY, POWER OUTLET SOCKET (1 parts) 85916L — RELAY, REAR FOG LAMP (10 parts) 87299 — RELAY, HEATER (3 parts) 87346L — RELAY, PTC HEATER (2 parts) 82660H — BLOCK ASSY, RELAY (2 parts) 89221 — COMPUTER, MULTIPLEX NETWORK BODY (47 parts) 89120A — SENSOR, AUTOMATIC LIGHT CONTROL (6 parts) 89420F — SENSOR ASSY, VACUUM (2 parts) 89650 — COMPUTER ASSY, POWER STEERING (4 parts) 8271552X40 — not listed in this catalogue 827155C280 — not listed in this catalogue 9015970003 — not listed in this catalogue 9155380612 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380620 — not listed in this catalogue 9167380620 — not listed in this catalogue 9331315010 — not listed in this catalogue 9415180600 — not listed in this catalogue 82600D — INSTRUMENT PANEL FUSE (12 parts) 82210N — INSTRUMENT PANEL FUSIBLE LINK (2 parts) 82730F — BLOCK ASSY, JUNCTION, LH (3 parts) 82210N — INSTRUMENT PANEL FUSIBLE LINK (2 parts) 82600D — INSTRUMENT PANEL FUSE (12 parts) 82672A — COVER, JUNCTION BLOCK (2 parts) C8420B — RELAY, WHEEL CHAIR CONTROL SWITCH, NO.2 (4 parts) 8202 — not listed in this catalogue C8420B — RELAY, WHEEL CHAIR CONTROL SWITCH, NO.2 (4 parts) 8419 — not listed in this catalogue 89111 — COMPUTER, NETWORK GATEWAY (1 parts) 9015970003 — not listed in this catalogue 85913F — RELAY, STEERING HEATER (2 parts)
84G073G · 26 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
129 parts on this figure
Part number Description Fitment Price
82210N — Instrument Panel Fusible Link
90982-08306 note Instrument Panel Fusible Link
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥390
90982-08306 note Instrument Panel Fusible Link
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥390
82600D — Instrument Panel Fuse
90982-09019 note Instrument Panel Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09020 note Instrument Panel Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09021 note Instrument Panel Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09022 note Instrument Panel Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09023 note Instrument Panel Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09024 note Instrument Panel Fuse
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90982-09019 note Instrument Panel Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09020 note Instrument Panel Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09021 note Instrument Panel Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09022 note Instrument Panel Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09023 note Instrument Panel Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
90982-09024 note Instrument Panel Fuse
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
82660H — Block Assy, Relay
82660-37070 Block Assy, Relay
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,680
82660-37070 Block Assy, Relay
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,680
82672A — Cover, Junction Block
82672-52110 Cover, Junction Block
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
82672-52110 Cover, Junction Block
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥300
82673A — Bracket, Junction Block, NO.1
82673-52040 Bracket, Junction Block, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥670
82673-52040 Bracket, Junction Block, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥670
82673B — Bracket, Junction Block, NO.2
82673-52140 Bracket, Junction Block, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
82673-52140 Bracket, Junction Block, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥700
82730F — Block Assy, Junction, LH
82730-52Q90 Block Assy, Junction, LH
2015-06 → 2015-10 ended
NCP175,NHP170,NSP17# ¥21,000
82730-52Q91 Block Assy, Junction, LH
2015-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥14,500
82730-52Q92 Block Assy, Junction, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥14,500
83650 — Fusee
90986-01005 Fusee
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
90986-01005 Fusee
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
84340 — Switch Assy, Stop Lamp
84340-49075 note Switch Assy, Stop Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,390
84340-49075 note Switch Assy, Stop Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,390
84340-49085 Switch Assy, Stop Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,390
84340-19085 Switch Assy, Stop Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,570
84345 — Adjuster, Stop Lamp Switch Mounting
84345-51010 Adjuster, Stop Lamp Switch Mounting
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
84345-51010 Adjuster, Stop Lamp Switch Mounting
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
84550 — Switch Assy, Parking Brake
84550-30080 Switch Assy, Parking Brake
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,210
84550-30080 Switch Assy, Parking Brake
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,210
85530A — Relay, Power Outlet Socket
90987-02027 Relay, Power Outlet Socket
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,930
85913F — Relay, Steering Heater
90987-02027 note Relay, Steering Heater
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥2,930
90987-02027 note Relay, Steering Heater
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥2,930
85916L — Relay, Rear Fog Lamp
90987-02027 note Relay, Rear Fog Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2016-07 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,930
90987-02027 note Relay, Rear Fog Lamp
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,930
87299 — Relay, Heater
90987-02025 Relay, Heater
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥2,930
90987-02025 Relay, Heater
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥2,930
90987-02025 note Relay, Heater
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥2,930
87346L — Relay, Ptc Heater
90987-02025 note Relay, Ptc Heater
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,930
90987-02025 note Relay, Ptc Heater
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥2,930
89111 — Computer, Network Gateway
89100-52040 Computer, Network Gateway
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,200
89120A — Sensor, Automatic Light Control
89121-30020 note Sensor, Automatic Light Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,010
89121-30020 note Sensor, Automatic Light Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,010
89121-30020 note Sensor, Automatic Light Control
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥4,010
89121-30020 note Sensor, Automatic Light Control
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥4,010
89121-30020 Sensor, Automatic Light Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥4,010
89121-30020 Sensor, Automatic Light Control
2021-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥4,010
89221 — Computer, Multiplex Network Body
89220-52600 Computer, Multiplex Network Body
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥29,000
89220-52610 note Computer, Multiplex Network Body
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥29,000
89220-52610 note Computer, Multiplex Network Body
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥29,000
89220-52C30 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NSP172 WKX ¥35,200
89220-52C30 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥35,200
89220-52C30 Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥35,200
89220-52C40 Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥35,200
89220-52C40 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NSP172 WKX ¥35,200
89220-52C40 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NSP172 WKX ¥35,200
89220-52C40 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥35,200
89220-52C40 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥35,200
89220-52C40 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥35,200
89220-52C50 Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥29,000
89220-52C60 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥29,000
89220-52C60 note Computer, Multiplex Network Body
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥29,000
89220-52E50 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52E50 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NSP172 WKX ¥29,300
89220-52E60 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NSP172 WKX ¥29,300
89220-52E60 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NSP172 WKX ¥29,300
89220-52E60 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52E60 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52E70 Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52E80 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52E80 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52F10 Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥29,300
89220-52F20 Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥29,300
89220-52F20 note Computer, Multiplex Network Body
2020-06 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥29,300
89220-52G90 Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52G91 Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52J00 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52J00 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52J01 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52J01 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥24,100
89220-52J10 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52J10 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NSP172 WKX ¥29,300
89220-52J11 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NSP172 WKX ¥29,300
89220-52J11 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52J20 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52J20 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NSP172 WKX ¥29,300
89220-52J20 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52J20 note Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NSP172 WKX ¥29,300
89220-52J21 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52J21 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥29,300
89220-52J21 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NSP172 WKX ¥29,300
89220-52J21 note Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NSP172 WKX ¥29,300
89220-52J30 Computer, Multiplex Network Body
2021-06 → 2021-08 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥29,300
89220-52J31 Computer, Multiplex Network Body
2021-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥29,300
89420F — Sensor Assy, Vacuum
89420-52090 Sensor Assy, Vacuum
2015-06 → 2018-09 ended
NSP17# ¥6,500
89420-52090 Sensor Assy, Vacuum
2018-09 → 2022-07 ended
NSP17# ¥6,500
89650 — Computer Assy, Power Steering
89650-52A20 note Computer Assy, Power Steering
2015-06 → 2018-09 ended
NCP175,NSP17# ¥41,100
89650-52A40 note Computer Assy, Power Steering
2015-07 → 2018-09 ended
NHP170 ¥41,100
89650-52F60 note Computer Assy, Power Steering
2018-09 → 2022-07 ended
NCP175,NSP17# ¥34,200
89650-52F70 note Computer Assy, Power Steering
2018-09 → 2022-07 ended
NHP170 ¥34,200
89960 — Computer Assy, Headlamp Leveling
89960-52700 note Computer Assy, Headlamp Leveling
2015-06 → 2018-09 ended
NHP170,NSP170 ¥26,600
89960-52700 note Computer Assy, Headlamp Leveling
2015-06 → 2018-09 ended
NHP170,NSP170 ¥26,600
89960-52710 note Computer Assy, Headlamp Leveling
2015-06 → 2018-09 ended
NCP175 ¥26,600
89960-52710 note Computer Assy, Headlamp Leveling
2015-06 → 2018-09 ended
NCP175 ¥26,600
89960-52860 note Computer Assy, Headlamp Leveling
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X ¥12,400
89960-52860 note Computer Assy, Headlamp Leveling
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥12,400
89960-52860 Computer Assy, Headlamp Leveling
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥12,400
89960-52870 note Computer Assy, Headlamp Leveling
2018-09 → 2022-07 ended
NSP172 WKX ¥10,300
89960-52870 note Computer Assy, Headlamp Leveling
2018-09 → 2022-07 ended
NSP172 ¥10,300
89960-52B40 Computer Assy, Headlamp Leveling
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥22,200
89960-52B40 note Computer Assy, Headlamp Leveling
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥22,200
89960-52B40 note Computer Assy, Headlamp Leveling
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,X ¥22,200
C8420B — Relay, Wheel Chair Control Switch, NO.2
90987-02027 note Relay, Wheel Chair Control Switch, NO.2
2015-06 → 2018-09 ended
NSP172 X ¥2,930
90987-02027 Relay, Wheel Chair Control Switch, NO.2
2015-06 → 2018-09 ended
NSP172 ¥2,930
90987-02027 note Relay, Wheel Chair Control Switch, NO.2
2018-09 → 2022-07 ended
NSP172 WKX ¥2,930
90987-02027 Relay, Wheel Chair Control Switch, NO.2
2018-09 → 2022-07 ended
NSP172 ¥2,930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
