Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

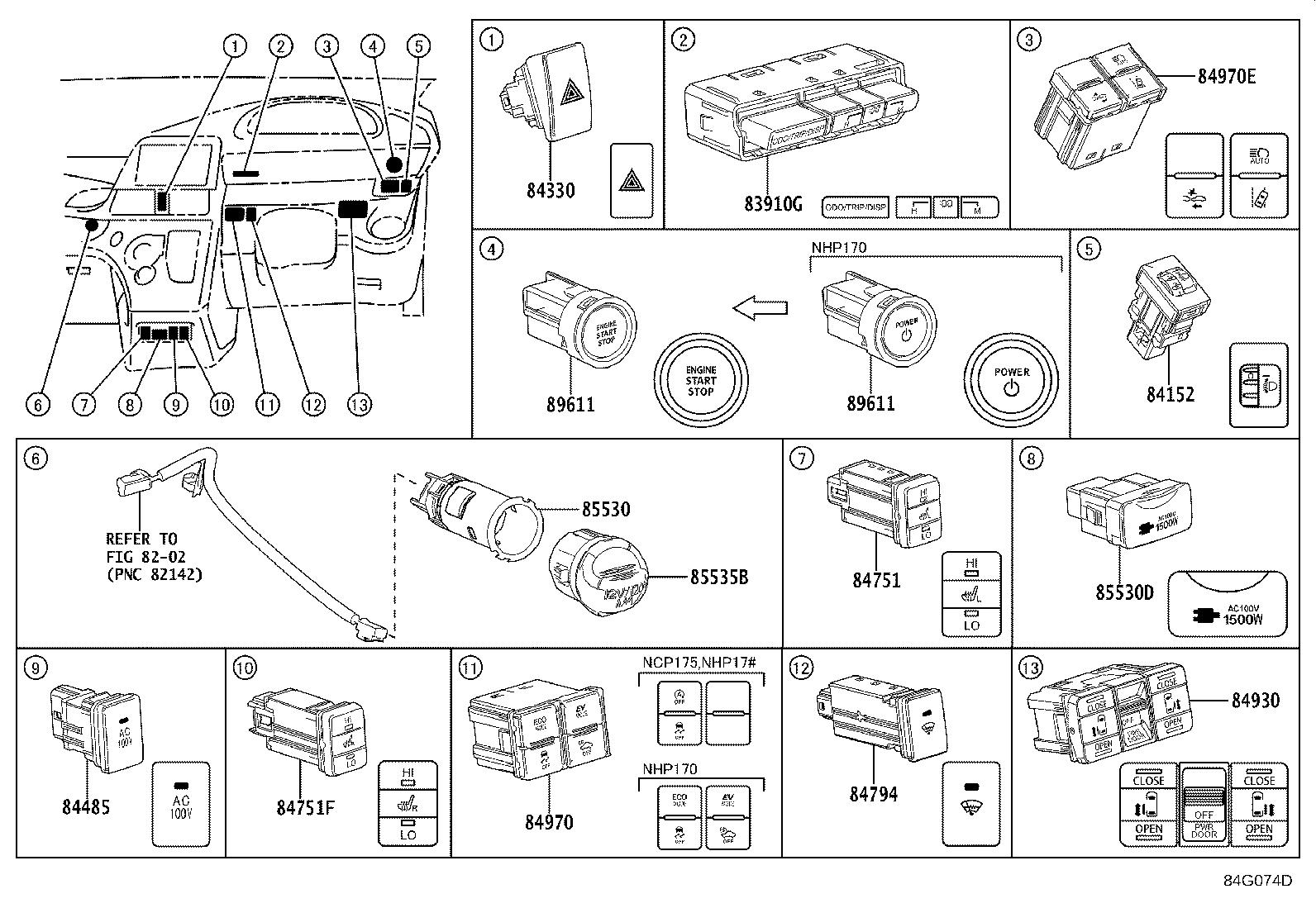

Exploded illustration 84G074D 84330 — SWITCH ASSY, HAZARD WARNING SIGNAL (2 parts) 89611 — SWITCH, PUSH START (17 parts) 85530 — SOCKET ASSY, POWER OUTLET, NO.1 (2 parts) 84930 — SWITCH ASSY, DOOR CONTROL (5 parts) 85535B — COVER, POWER OUTLET SOCKET, NO.1 (2 parts) 89611 — SWITCH, PUSH START (17 parts) 84152 — SWITCH, HEADLAMP LEVELING (11 parts) 84751 — SWITCH, SEAT HEATER (3 parts) 85530D — SOCKET ASSY, POWER OUTLET, NO.2 (7 parts) 84485 — SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) (3 parts) 84751F — SWITCH, SEAT HEATER (15 parts) 84970 — SWITCH ASSY, COMBINATION (6 parts) 84794 — SWITCH, FR WIPER DEICER (2 parts) 84970E — SWITCH ASSY, COMBINATION NO.2 (9 parts) 83910G — CLOCK ASSY (6 parts) 8202 — not listed in this catalogue
84G074D · 15 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
83910G — Clock Assy
84975-52290 Clock Assy
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥4,510
84975-52300 Clock Assy
2015-06 → 2018-09 ended
NHP170;NCP175,NSP17# G ¥3,910
84975-52300 note Clock Assy
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥3,910
84975-52290 Clock Assy
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥4,510
84975-52300 note Clock Assy
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥3,910
84975-52300 Clock Assy
2018-09 → 2022-07 ended
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥3,910
84152 — Switch, Headlamp Leveling
84152-52161 Switch, Headlamp Leveling
2015-06 → 2015-12 ended
NCP175,NHP170,NSP17# ¥4,480
84152-52161 note Switch, Headlamp Leveling
2015-06 → 2015-12 ended
NCP175,NHP170,NSP17# ¥4,480
84152-52161 note Switch, Headlamp Leveling
2015-06 → 2015-12 ended
NHP170 07S;NSP17# (05S,07S) G ¥4,480
84152-52161 note Switch, Headlamp Leveling
2015-06 → 2015-12 ended
NCP175,NHP170,NSP17# ¥4,480
84152-52170 Switch, Headlamp Leveling
2016-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,730
84152-52170 note Switch, Headlamp Leveling
2016-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,730
84152-52170 note Switch, Headlamp Leveling
2016-01 → 2018-09 ended
NHP170 07S;NSP17# (05S,07S) G ¥3,730
84152-52170 note Switch, Headlamp Leveling
2016-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,730
84152-52170 Switch, Headlamp Leveling
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥3,730
84152-52170 note Switch, Headlamp Leveling
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥3,730
84152-52170 note Switch, Headlamp Leveling
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥3,730
84330 — Switch Assy, Hazard Warning Signal
84332-52160 Switch Assy, Hazard Warning Signal
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,940
84332-52160 Switch Assy, Hazard Warning Signal
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,940
84485 — Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84485-52011 note Switch, Power Outlet(AC100V ACCESSORY SOCKET)
2015-07 → 2018-09 ended
NHP170 G ¥3,330
84485-52011 note Switch, Power Outlet(AC100V ACCESSORY SOCKET)
2018-09 → 2022-07 ended
NHP170 FNBSG,FNGCR,G ¥3,330
84485-52011 note Switch, Power Outlet(AC100V ACCESSORY SOCKET)
2020-06 → 2022-07 ended
NHP170 FNBSX,GCERO,X ¥3,330
84751 — Switch, Seat Heater
84751-28042 note Switch, Seat Heater
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,510
84751-28042 note Switch, Seat Heater
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥4,510
84751-28042 note Switch, Seat Heater
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥4,510
84751F — Switch, Seat Heater
84751-52082 note Switch, Seat Heater
2015-06 → 2018-09 ended
NSP172 X ¥4,100
84751-52082 note Switch, Seat Heater
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,100
84751-52082 note Switch, Seat Heater
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥4,100
84751-52082 note Switch, Seat Heater
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥4,100
84751-52082 note Switch, Seat Heater
2015-12 → 2018-09 ended
NSP172 ¥4,100
84751-52082 note Switch, Seat Heater
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥4,100
84751-52082 note Switch, Seat Heater
2020-06 → 2022-07 ended
NSP172 WKG ¥4,100
84751-52082 note Switch, Seat Heater
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥4,100
84751-52082 note Switch, Seat Heater
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥4,100
84751-52082 note Switch, Seat Heater
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥4,100
84751-52082 note Switch, Seat Heater
2018-09 → 2020-06 ended
NSP172 WKX ¥4,100
84751-52082 note Switch, Seat Heater
2018-09 → 2020-06 ended
NSP172 ¥4,100
84751-52082 note Switch, Seat Heater
2018-09 → 2020-06 ended
NSP172 WKX ¥4,100
84751-52082 note Switch, Seat Heater
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥4,100
84751-52082 note Switch, Seat Heater
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥4,100
84794 — Switch, FR Wiper Deicer
84794-35011 note Switch, FR Wiper Deicer
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,550
84794-35011 note Switch, FR Wiper Deicer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,550
84930 — Switch Assy, Door Control
84930-28160 Switch Assy, Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥3,730
84930-28160 note Switch Assy, Door Control
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥3,730
84930-28170 Switch Assy, Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥5,800
84930-28160 Switch Assy, Door Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥3,730
84930-28170 Switch Assy, Door Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥5,800
84970 — Switch Assy, Combination
84970-52020 Switch Assy, Combination
2015-06 → 2018-09 ended
NSP17# ¥5,200
84970-52030 Switch Assy, Combination
2015-06 → 2018-09 ended
NCP175 ¥3,900
84970-52040 Switch Assy, Combination
2015-07 → 2018-09 ended
NHP170 ¥8,000
84970-52020 Switch Assy, Combination
2018-09 → 2022-07 ended
NSP17# ¥5,200
84970-52030 Switch Assy, Combination
2018-09 → 2022-07 ended
NCP175 ¥3,900
84970-52170 Switch Assy, Combination
2018-09 → 2022-07 ended
NHP170 ¥6,200
84970E — Switch Assy, Combination NO.2
84970-52010 note Switch Assy, Combination NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,200
84970-52010 note Switch Assy, Combination NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,200
84970-52010 Switch Assy, Combination NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥6,200
84970-52010 note Switch Assy, Combination NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥6,200
84970-52010 note Switch Assy, Combination NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥6,200
84970-52160 note Switch Assy, Combination NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥6,600
84970-52160 note Switch Assy, Combination NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥6,600
84970-52160 note Switch Assy, Combination NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥6,600
84970-52180 note Switch Assy, Combination NO.2
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥3,900
85530 — Socket Assy, Power Outlet, NO.1
85530-52010 Socket Assy, Power Outlet, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,750
85530-52010 Socket Assy, Power Outlet, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,750
85530D — Socket Assy, Power Outlet, NO.2
85530-75010-A1 note Socket Assy, Power Outlet, NO.2
2015-07 → 2018-09 ended
NHP170 G ¥1,940
85530-75010-C0 note Socket Assy, Power Outlet, NO.2
2015-07 → 2018-09 ended
NHP170 G ¥1,750
85530-75010-A1 note Socket Assy, Power Outlet, NO.2
2020-06 → 2022-07 ended
NHP170 X ¥1,940
85530-75010-A1 note Socket Assy, Power Outlet, NO.2
2018-09 → 2022-07 ended
NHP170 G ¥1,940
85530-75010-C0 note Socket Assy, Power Outlet, NO.2
2018-09 → 2021-03 ended
NHP170 FNBSG,G ¥1,750
85530-75010-C0 note Socket Assy, Power Outlet, NO.2
2020-06 → 2021-03 ended
NHP170 FNBSX,FNGCR,GCERO,X ¥1,750
85530-75010-C1 note Socket Assy, Power Outlet, NO.2
2021-03 → 2022-07 ended
NHP170 ¥1,750
85535B — Cover, Power Outlet Socket, NO.1
85535-52052 Cover, Power Outlet Socket, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥270
85535-52052 Cover, Power Outlet Socket, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥270
89611 — Switch, Push Start
89611-30141 note Switch, Push Start
2015-07 → 2016-04 ended
NHP170 X ¥14,600
89611-30141 Switch, Push Start
2015-07 → 2016-04 ended
NHP170 G ¥14,600
89611-30142 note Switch, Push Start
2016-05 → 2018-09 ended
NHP170 X ¥10,100
89611-30142 Switch, Push Start
2016-05 → 2018-09 ended
NHP170 G ¥10,100
89611-52033 note Switch, Push Start
2015-06 → 2016-04 ended
NSP172 X ¥14,600
89611-52033 note Switch, Push Start
2015-06 → 2016-04 ended
NCP175,NSP170 X ¥14,600
89611-52033 Switch, Push Start
2015-06 → 2016-04 ended
NCP175,NSP17# G ¥14,600
89611-52034 Switch, Push Start
2016-05 → 2018-09 ended
NCP175,NSP17# G ¥10,100
89611-52034 note Switch, Push Start
2016-05 → 2018-09 ended
NCP175,NSP170 X ¥10,100
89611-52034 note Switch, Push Start
2016-05 → 2018-09 ended
NSP172 X ¥10,100
89611-30142 Switch, Push Start
2018-09 → 2021-11 ended
NHP170 FNBSG,FNGCR,G,GCERO ¥10,100
89611-30142 note Switch, Push Start
2018-09 → 2021-11 ended
NHP170 FNBSX,X ¥10,100
89611-30143 Switch, Push Start
2021-12 → 2022-07 ended
NHP170 FNBSG,FNGCR,G,GCERO ¥10,100
89611-30143 note Switch, Push Start
2021-12 → 2022-07 ended
NHP170 FNBSX,X ¥10,100
89611-52034 Switch, Push Start
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥10,100
89611-52034 note Switch, Push Start
2018-09 → 2022-07 ended
NCP175,NSP170 FNBSX,X ¥10,100
89611-52034 note Switch, Push Start
2018-09 → 2022-07 ended
NSP172 WKX ¥10,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
