Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

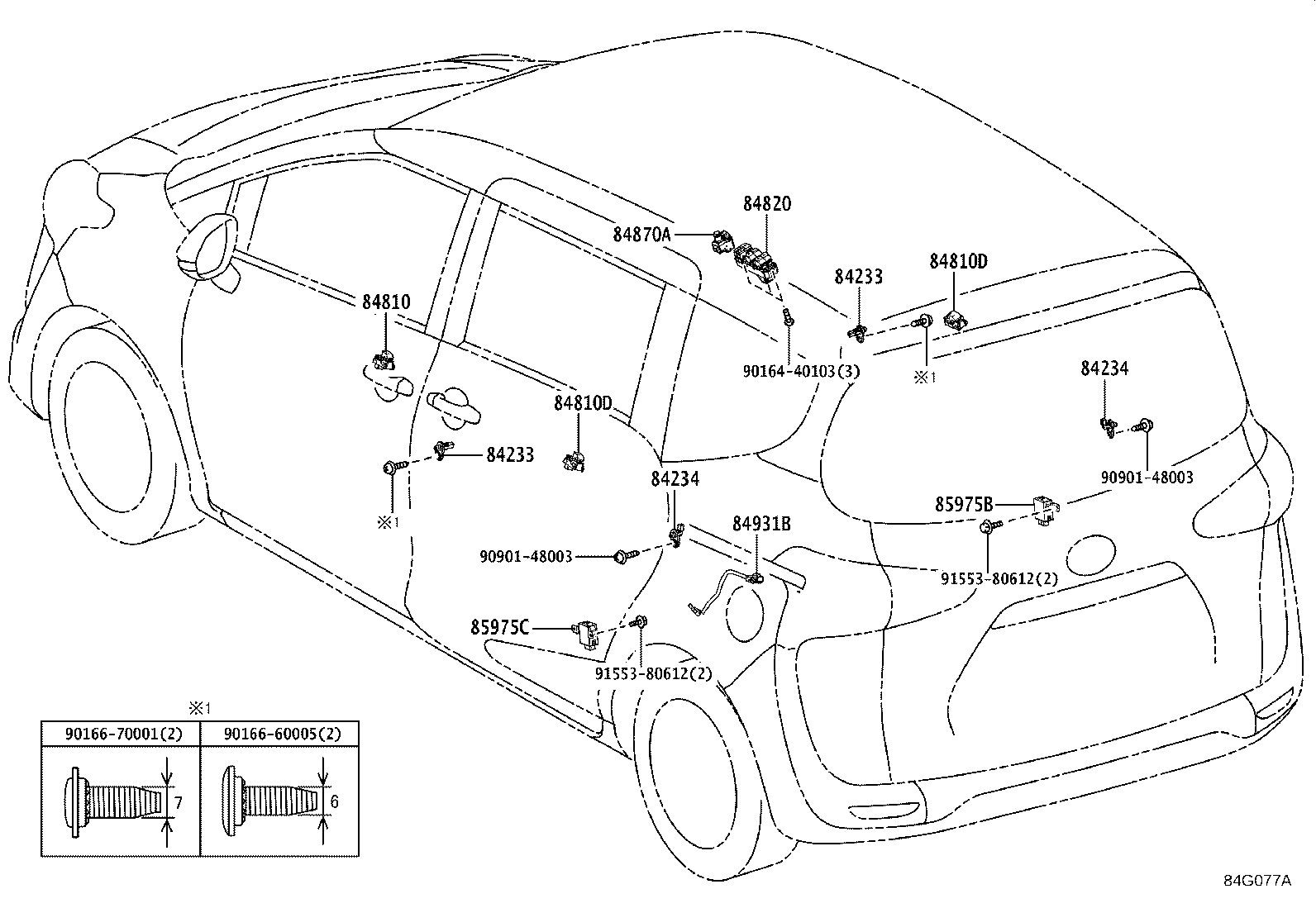

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-52010 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥660 | |
| 84231-52010 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥660 | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-52020 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥660 | |
| 84231-52020 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥660 | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-52080 |
Switch Assy, Power Window Regulator
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,070 | |
| 84810-52080 |
Switch Assy, Power Window Regulator
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,070 | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-52080 |
Switch Assy, Power Window Regulator, Rear
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,070 | |
| 84810-52080 |
Switch Assy, Power Window Regulator, Rear
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,070 | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-52340 |
Master Switch Assy, Power Window Regulator
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥15,500 | |
| 84820-52340 |
Master Switch Assy, Power Window Regulator
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥15,500 | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84872-52100 |
Switch Assy, Outer Mirror
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥4,800 | |
| 84872-52110 note |
Switch Assy, Outer Mirror
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥4,970 | |
| 84872-52060 |
Switch Assy, Outer Mirror
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥4,800 | |
| 84872-52060 note |
Switch Assy, Outer Mirror
2018-09 → 2022-07
ended
|
NSP172 WKX | ¥4,800 | |
| 84872-52060 note |
Switch Assy, Outer Mirror
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSX,X | ¥4,800 | |
| 84872-52100 |
Switch Assy, Outer Mirror
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# FNBSX,WKX,X | ¥4,800 | |
| 84931B — Switch, Door Control | ||||
| 84931-28070 |
Switch, Door Control
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,270 | |
| 84931-28070 note |
Switch, Door Control
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥2,270 | |
| 84931-28070 |
Switch, Door Control
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,270 | |
| 85975B — Relay, Slide Door Closer, RH | ||||
| 85975-52050 |
Relay, Slide Door Closer, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# X | ¥6,600 | |
| 85975-52050 |
Relay, Slide Door Closer, RH
2018-09 → 2020-06
ended
|
NCP175,NHP170,NSP17# FNBSX,WKX,X | ¥6,600 | |
| 85975-52070 |
Relay, Slide Door Closer, RH
2020-06 → 2022-07
ended
|
NCP175,NHP170,NSP17# FNBSX,WKX,X | ¥6,000 | |
| 85975C — Relay, Slide Door Closer, LH | ||||
| 85975-52050 note |
Relay, Slide Door Closer, LH
2015-06 → 2018-09
ended
|
NSP172 X | ¥6,600 | |
| 85975-52050 note |
Relay, Slide Door Closer, LH
2015-06 → 2018-09
ended
|
NCP175,NSP170 X | ¥6,600 | |
| 85975-52050 note |
Relay, Slide Door Closer, LH
2015-12 → 2018-09
ended
|
NSP172 X | ¥6,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
