Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

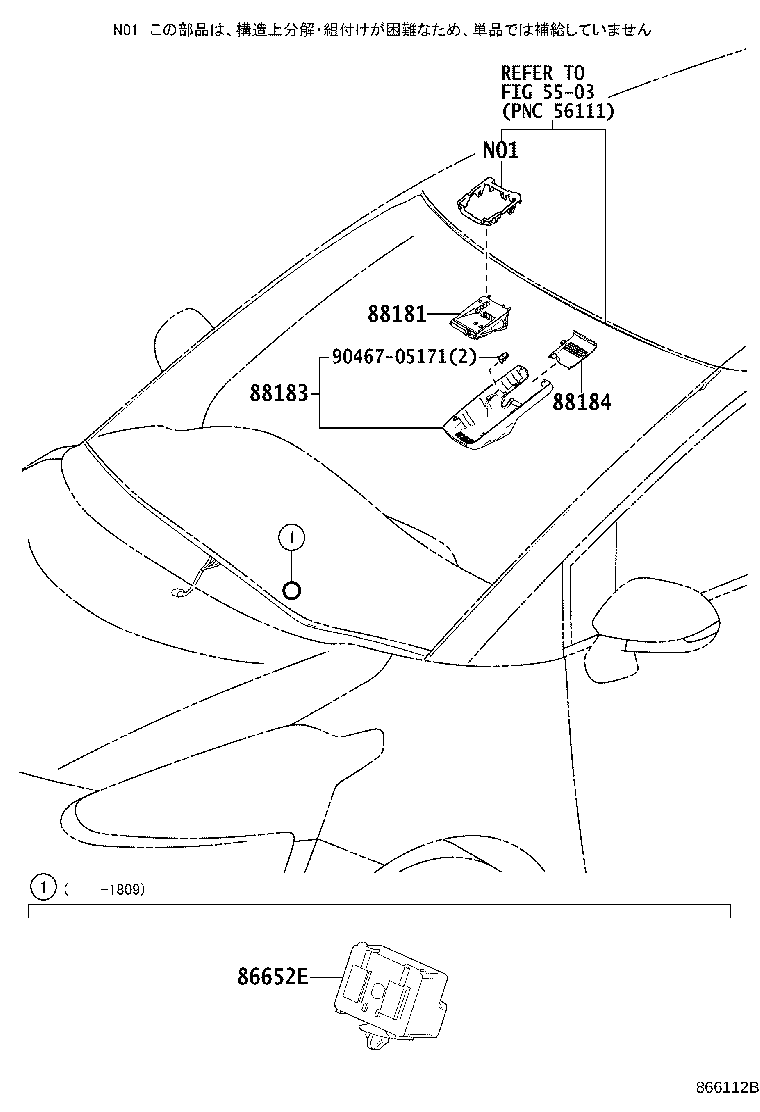

Exploded illustration 866112B 5503 — not listed in this catalogue 88183 — COVER, PRE-COLLISION CITY (3 parts) 9046705171 — not listed in this catalogue 86652E — BUZZER, PRE-COLLISION CITY (1 parts) 88181 — SENSOR, PRE-COLLISION CITY (7 parts) 88184 — COVER, PRE-COLLISION CITY, 2ND (3 parts)
866112B · 4 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
86652E — Buzzer, Pre-collision City
86652-50010 note Buzzer, Pre-collision City
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,400
88181 — Sensor, Pre-collision City
88181-0W010 note Sensor, Pre-collision City
2015-06 → 2017-02 ended
NCP175,NHP170,NSP17# ¥133,000
88181-0W010 note Sensor, Pre-collision City
2017-02 → 2017-03 ended
NCP175,NHP170,NSP17# ¥133,000
88181-52070 note Sensor, Pre-collision City
2017-02 → 2018-01 ended
NCP175,NHP170,NSP17# ¥133,000
88181-52070 note Sensor, Pre-collision City
2017-03 → 2018-01 ended
NCP175,NHP170,NSP17# ¥133,000
88181-52070 note Sensor, Pre-collision City
2018-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥133,000
88181-52120 Sensor, Pre-collision City
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥66,600
88181-52120 note Sensor, Pre-collision City
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥66,600
88183 — Cover, Pre-collision City
88183-52010 note Cover, Pre-collision City
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,570
88183-52010 Cover, Pre-collision City
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥2,570
88183-52010 note Cover, Pre-collision City
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,570
88184 — Cover, Pre-collision City, 2ND
88184-52010 note Cover, Pre-collision City, 2ND
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥830
88184-52010 Cover, Pre-collision City, 2ND
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥830
88184-52010 note Cover, Pre-collision City, 2ND
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥830
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
