Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

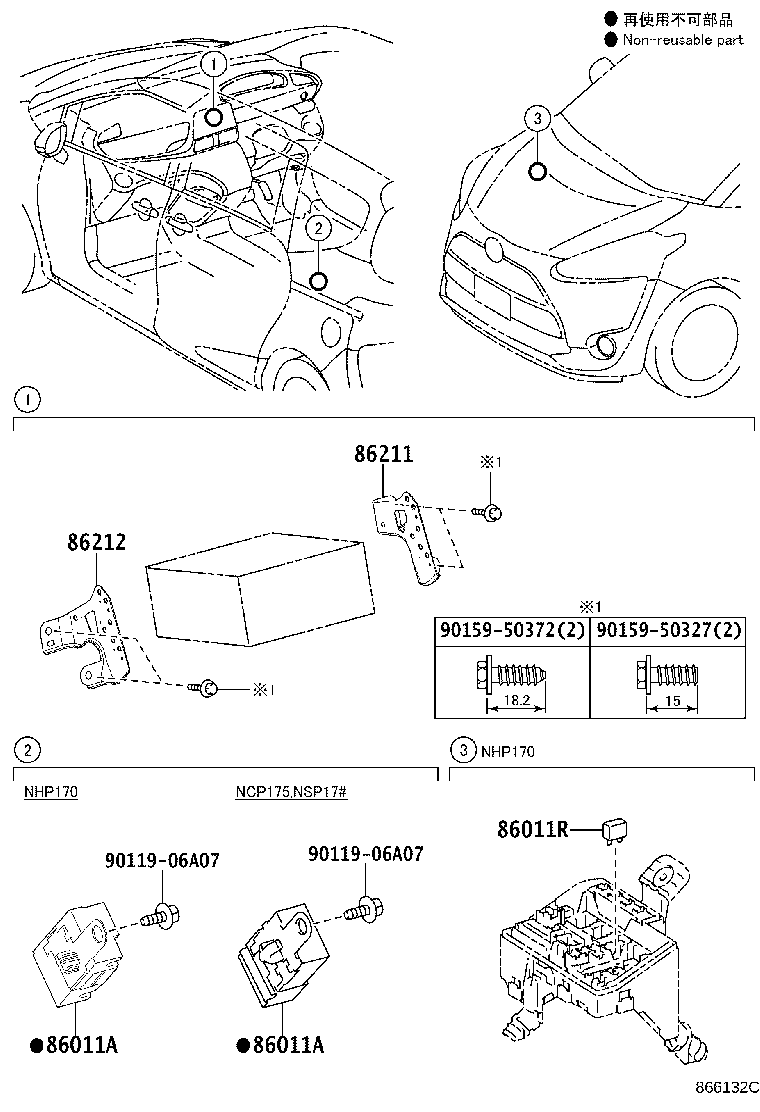

Exploded illustration 866132C 86011A — CONDENSER, RADIO SETTING (4 parts) 86011R — CONDENSER, RADIO SETTING (2 parts) 86211 — BRACKET, RADIO, NO.1 (2 parts) 86212 — BRACKET, RADIO, NO.2 (2 parts) 9011906A07 — not listed in this catalogue 86011A — CONDENSER, RADIO SETTING (4 parts) 9011906A07 — not listed in this catalogue 9015950327 — not listed in this catalogue 9015950372 — not listed in this catalogue
866132C · 5 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
10 parts on this figure
Part number Description Fitment Price
86011A — Condenser, Radio Setting
90980-04189 Condenser, Radio Setting
2015-06 → 2018-09 ended
NCP175,NSP17# ¥700
90980-04204 Condenser, Radio Setting
2015-07 → 2018-09 ended
NHP170 ¥1,150
90980-04189 Condenser, Radio Setting
2018-09 → 2022-07 ended
NCP175,NSP17# ¥700
90980-04204 Condenser, Radio Setting
2018-09 → 2022-07 ended
NHP170 ¥1,150
86011R — Condenser, Radio Setting
90980-04161 Condenser, Radio Setting
2015-07 → 2018-09 ended
NHP170 ¥850
90980-04161 Condenser, Radio Setting
2018-09 → 2022-07 ended
NHP170 ¥850
86211 — Bracket, Radio, NO.1
86211-52330 Bracket, Radio, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
86211-52330 Bracket, Radio, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥380
86212 — Bracket, Radio, NO.2
86212-52330 Bracket, Radio, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥430
86212-52330 Bracket, Radio, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥430
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
