Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

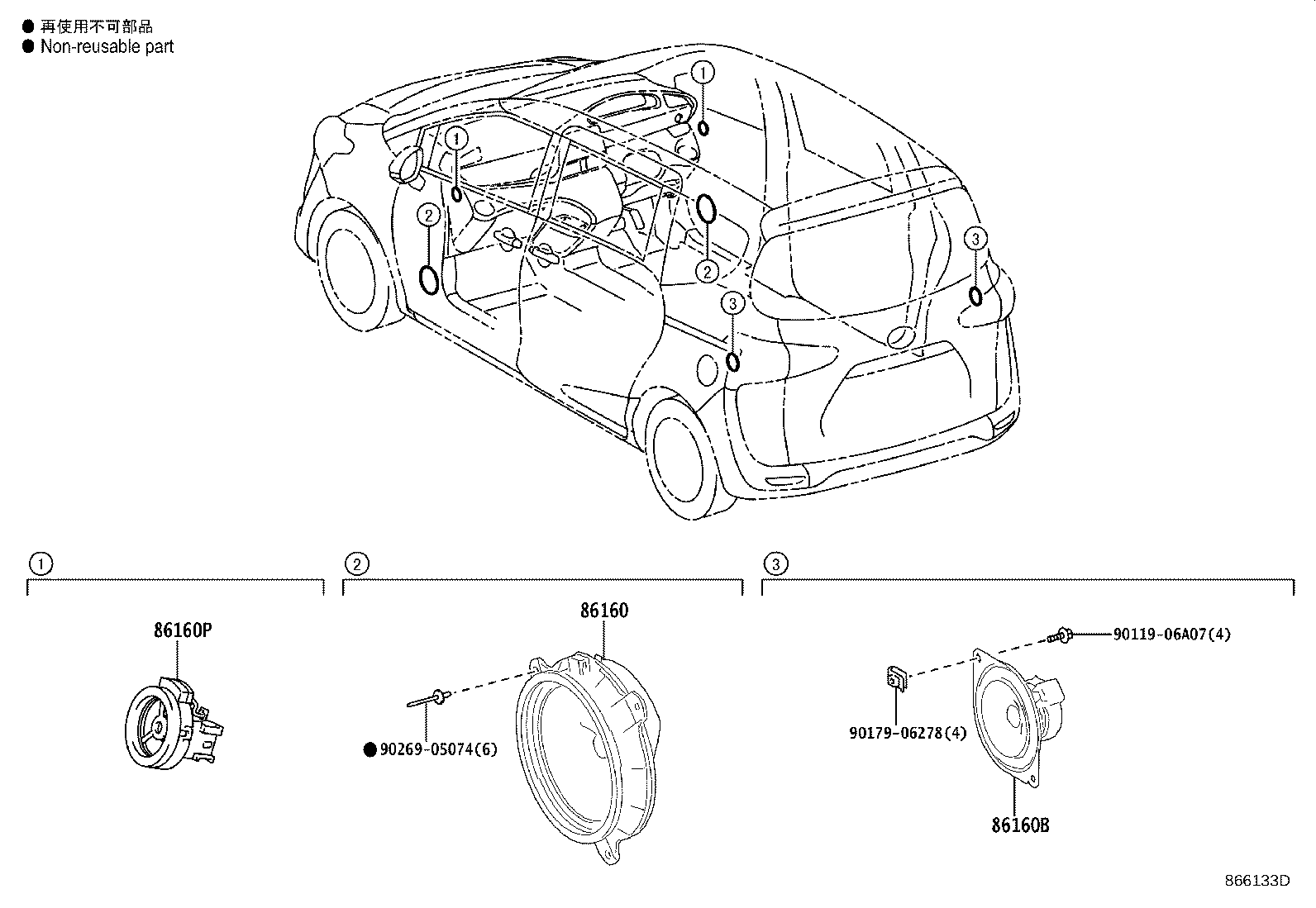

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-52300 |
Speaker Assy, Front NO.1
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥7,000 | |
| 86160-30E00 |
Speaker Assy, Front NO.1
2019-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥6,300 | |
| 86160-52300 |
Speaker Assy, Front NO.1
2018-09 → 2019-09
ended
|
NCP175,NHP170,NSP17# | ¥7,000 | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-52110 |
Speaker Assy, Rear
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥5,200 | |
| 86160-52110 note |
Speaker Assy, Rear
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥5,200 | |
| 86160-52110 |
Speaker Assy, Rear
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥5,200 | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-52170 note |
Speaker Assy, Front NO.2
2018-09 → 2021-06
ended
|
NCP175,NHP170,NSP17# FNBSX,WKX,X | ¥2,210 | |
| 86160-52170 |
Speaker Assy, Front NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNGCR,GCERO | ¥2,210 | |
| 86160-52170 note |
Speaker Assy, Front NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X | ¥2,210 | |
| 86160-52170 note |
Speaker Assy, Front NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# FNBSG,G,WKG | ¥2,210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
