Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

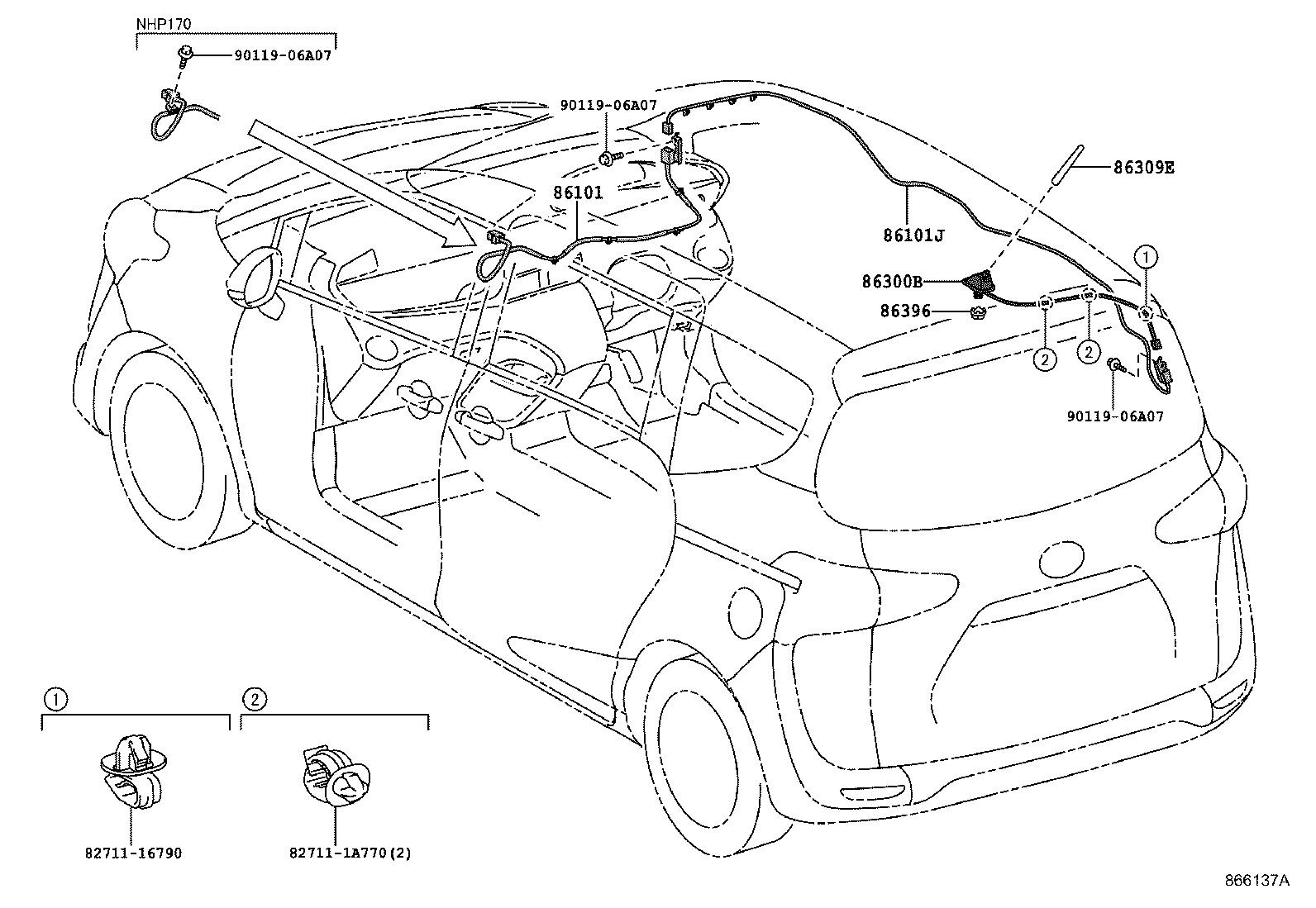

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-52C20 |
Cord Sub-assy, Antenna
2015-07 → 2018-09
ended
|
NHP170 | ¥3,960 | |
| 86101-52C30 |
Cord Sub-assy, Antenna
2015-06 → 2018-09
ended
|
NCP175,NSP17# | ¥3,440 | |
| 86101-52C20 |
Cord Sub-assy, Antenna
2018-09 → 2022-07
ended
|
NHP170 | ¥3,960 | |
| 86101-52C30 |
Cord Sub-assy, Antenna
2018-09 → 2022-07
ended
|
NCP175,NSP17# | ¥3,440 | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-52C10 |
Cord Sub-assy, Antenna, NO.2
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥4,460 | |
| 86101-52C10 |
Cord Sub-assy, Antenna, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥4,460 | |
| 86300B — Antenna Assy, Amplifier, NO.1 | ||||
| 86300-52660 |
Antenna Assy, Amplifier, NO.1
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥6,300 | |
| 86300-52660 |
Antenna Assy, Amplifier, NO.1
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥6,300 | |
| 86309E — Pole Sub-assy, Roof Antenna | ||||
| 86309-47060 |
Pole Sub-assy, Roof Antenna
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,060 | |
| 86309-47060 |
Pole Sub-assy, Roof Antenna
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,060 | |
| 86396 — Nut, Antenna | ||||
| 86396-47010 |
Nut, Antenna
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥430 | |
| 86396-47010 |
Nut, Antenna
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥430 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
