Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

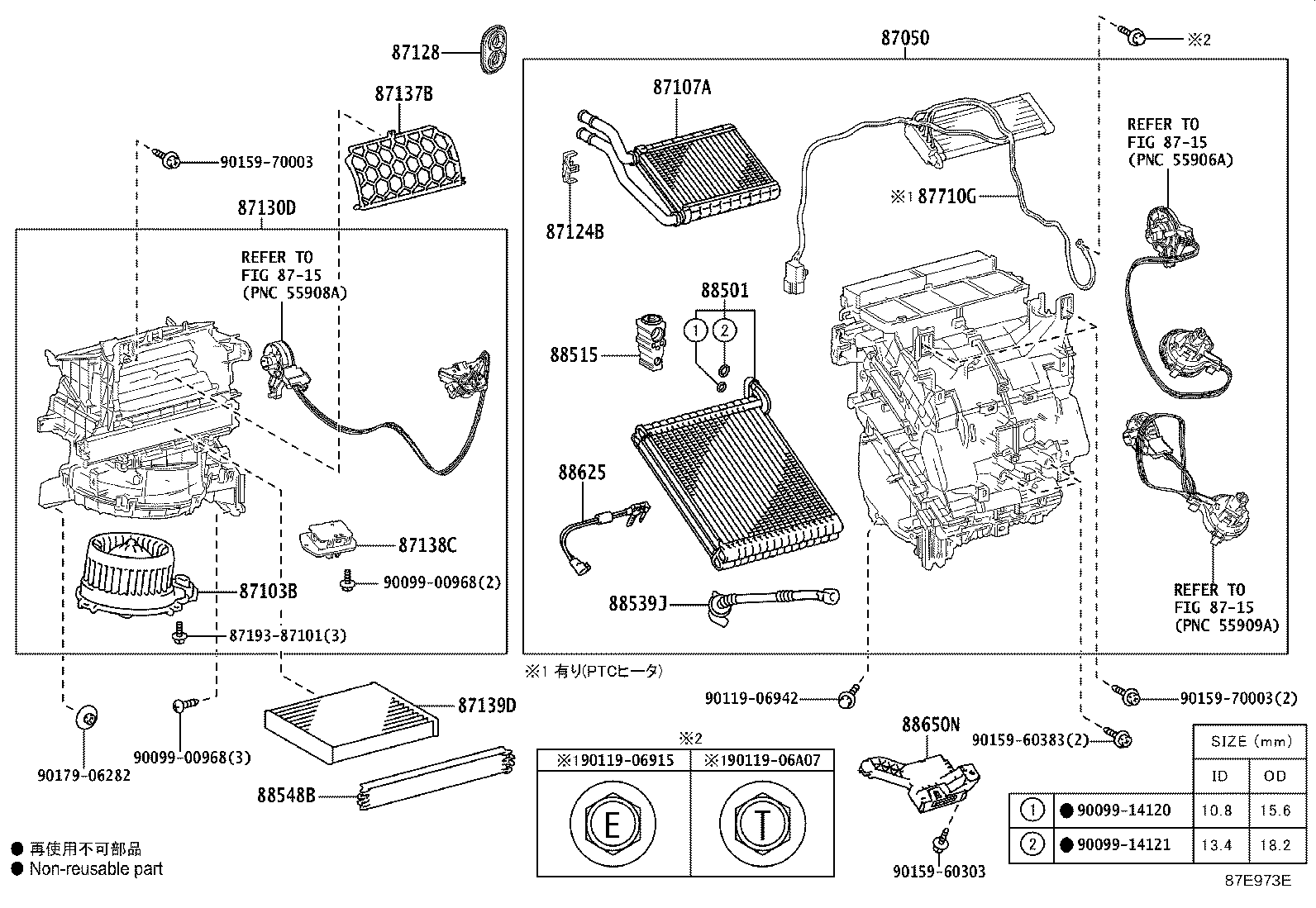

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-52301 note |
Radiator Assy, Air Conditioner
2015-07 → 2018-09
ended
|
NHP170 | ¥98,500 | |
| 87050-52341 |
Radiator Assy, Air Conditioner
2015-07 → 2018-09
ended
|
NHP170 | ¥63,800 | |
| 87050-52341 note |
Radiator Assy, Air Conditioner
2015-07 → 2018-09
ended
|
NHP170 | ¥63,800 | |
| 87050-52420 |
Radiator Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥83,500 | |
| 87050-52430 note |
Radiator Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥103,000 | |
| 87050-52440 |
Radiator Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NCP175 G | ¥77,000 | |
| 87050-52450 note |
Radiator Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NCP175 G | ¥96,100 | |
| 87050-52480 |
Radiator Assy, Air Conditioner
2015-06 → 2018-04
ended
|
NSP17# G | ¥113,000 | |
| 87050-52481 |
Radiator Assy, Air Conditioner
2018-05 → 2018-09
ended
|
NSP17# G | ¥93,200 | |
| 87050-52490 note |
Radiator Assy, Air Conditioner
2015-06 → 2018-04
ended
|
NSP17# G | ¥89,100 | |
| 87050-52491 note |
Radiator Assy, Air Conditioner
2018-05 → 2018-09
ended
|
NSP17# G | ¥74,200 | |
| 87050-52301 note |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NHP170 | ¥98,500 | |
| 87050-52341 |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NHP170 | ¥63,800 | |
| 87050-52420 |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | ¥83,500 | |
| 87050-52430 note |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | ¥103,000 | |
| 87050-52440 |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175 G,GCERO | ¥77,000 | |
| 87050-52450 note |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175 G,GCERO | ¥96,100 | |
| 87050-52481 |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥93,200 | |
| 87050-52491 note |
Radiator Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥74,200 | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-12110 |
Motor Sub-assy, Blower W/Fan
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | — | |
| 87103-52200 |
Motor Sub-assy, Blower W/Fan
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | — | |
| 87103-12110 |
Motor Sub-assy, Blower W/Fan
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | — | |
| 87103-52200 |
Motor Sub-assy, Blower W/Fan
2018-09 → 2022-07
ended
|
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-52070 |
Unit Sub-assy, Heater Radiator
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | — | |
| 87107-52070 |
Unit Sub-assy, Heater Radiator
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | — | |
| 87124B — Clamp, Heater | ||||
| 87124-33070 |
Clamp, Heater
2020-06 → 2022-07
ended
|
NCP175,NSP17# | ¥0 | |
| 87128 — Grommet, Heater | ||||
| 90480-01696 |
Grommet, Heater
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | — | |
| 90480-01696 |
Grommet, Heater
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | — | |
| 87130D — Blower Assy | ||||
| 87130-52190 |
Blower Assy
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | — | |
| 87130-52220 |
Blower Assy
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | ¥0 | |
| 87130-52190 |
Blower Assy
2018-09 → 2022-07
ended
|
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | — | |
| 87130-52220 |
Blower Assy
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | ¥0 | |
| 87137B — Cover, Heater Blower | ||||
| 87137-52010 |
Cover, Heater Blower
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | — | |
| 87137-52010 |
Cover, Heater Blower
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | — | |
| 87138C — Resistor, Blower | ||||
| 87138-52030 |
Resistor, Blower
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | — | |
| 87138-52030 |
Resistor, Blower
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | — | |
| 87139D — Element, Air Refiner | ||||
| 87139-50100 note |
Element, Air Refiner
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥4,000 | |
| 87139-52040 note |
Element, Air Refiner
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,000 | |
| 87139-50100 note |
Element, Air Refiner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥4,000 | |
| 87139-52040 note |
Element, Air Refiner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,000 | |
| 87710G — Quick Heater Assy | ||||
| 87710-12030 note |
Quick Heater Assy
2015-06 → 2018-09
ended
|
NCP175,NSP17# | — | |
| 87710-52080 note |
Quick Heater Assy
2015-07 → 2018-09
ended
|
NHP170 | — | |
| 87710-12030 note |
Quick Heater Assy
2018-09 → 2022-07
ended
|
NCP175,NSP17# | — | |
| 87710-52080 note |
Quick Heater Assy
2018-09 → 2022-07
ended
|
NHP170 | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-12520 |
Evaporator Sub-assy, Cooler, NO.1
2015-06 → 2018-09
ended
|
NCP175;NSP17# X | — | |
| 88501-52120 |
Evaporator Sub-assy, Cooler, NO.1
2015-07 → 2018-09
ended
|
NHP170 | — | |
| 88501-52130 |
Evaporator Sub-assy, Cooler, NO.1
2015-06 → 2018-09
ended
|
NSP17# G | — | |
| 88501-12520 |
Evaporator Sub-assy, Cooler, NO.1
2018-09 → 2022-07
ended
|
NSP170 FNBSX,X;NCP175,NSP172 G,GCERO,WKX,X | — | |
| 88501-52120 |
Evaporator Sub-assy, Cooler, NO.1
2018-09 → 2022-07
ended
|
NHP170 | — | |
| 88501-52130 |
Evaporator Sub-assy, Cooler, NO.1
2018-09 → 2022-07
ended
|
NSP17# FNBSG,FNGCR,G,GCERO,WKG | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-52090 |
Valve, Cooler Expansion
2015-06 → 2018-02
ended
|
NSP17# G | ¥8,400 | |
| 88515-52090 |
Valve, Cooler Expansion
2015-06 → 2018-09
ended
|
NCP175;NSP17# X | ¥8,400 | |
| 88515-52100 |
Valve, Cooler Expansion
2018-03 → 2018-05
ended
|
NSP17# G | ¥8,400 | |
| 88515-52110 |
Valve, Cooler Expansion
2018-05 → 2018-09
ended
|
NSP17# G | ¥8,400 | |
| 88515-68010 |
Valve, Cooler Expansion
2015-07 → 2018-09
ended
|
NHP170 | ¥8,400 | |
| 88515-26140 |
Valve, Cooler Expansion
2019-11 → 2022-07
ended
|
NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥6,300 | |
| 88515-48110 |
Valve, Cooler Expansion
2019-12 → 2022-07
ended
|
NHP170 | ¥6,300 | |
| 88515-48120 |
Valve, Cooler Expansion
2019-11 → 2022-07
ended
|
NSP170 FNBSX,X;NCP175,NSP172 G,GCERO,WKX,X | ¥6,300 | |
| 88515-52090 |
Valve, Cooler Expansion
2018-09 → 2019-10
ended
|
NSP170 FNBSX,X;NCP175,NSP172 G,GCERO,WKX,X | ¥8,400 | |
| 88515-52110 |
Valve, Cooler Expansion
2018-09 → 2019-10
ended
|
NSP17# FNBSG,G,GCERO,WKG | ¥8,400 | |
| 88515-68010 |
Valve, Cooler Expansion
2018-09 → 2019-11
ended
|
NHP170 | ¥8,400 | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-52030 |
Hose, Drain Cooler
2015-06 → 2018-04
ended
|
NCP175,NHP170,NSP17# | — | |
| 88539-52060 |
Hose, Drain Cooler
2018-05 → 2018-09
ended
|
NCP175,NHP170,NSP17# | — | |
| 88539-52060 |
Hose, Drain Cooler
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | — | |
| 88548B — Case, Air Filter | ||||
| 88548-52040 |
Case, Air Filter
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥0 | |
| 88548-52040 |
Case, Air Filter
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥0 | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88620-12090 |
Thermistor, Cooler, NO.1
2015-06 → 2018-09
ended
|
NSP17# G | — | |
| 88620-52010 |
Thermistor, Cooler, NO.1
2015-06 → 2018-09
ended
|
NSP17# X;NCP175,NHP170 | — | |
| 88620-12090 |
Thermistor, Cooler, NO.1
2018-09 → 2022-07
ended
|
NSP17# FNBSG,FNGCR,G,GCERO,WKG | — | |
| 88620-52010 |
Thermistor, Cooler, NO.1
2018-09 → 2022-07
ended
|
NSP170 FNBSX,X;NCP175,NHP170,NSP172 FNBSG,FNBSX,FNGCR,G,GCERO,WKX,X | — | |
| 88650N — Amplifier Assy, Air Conditioner | ||||
| 88650-52B20 |
Amplifier Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | — | |
| 88650-52B30 note |
Amplifier Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NCP175,NSP17# X | — | |
| 88650-52B40 |
Amplifier Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NCP175,NSP17# G | — | |
| 88650-52B50 |
Amplifier Assy, Air Conditioner
2015-07 → 2018-09
ended
|
NHP170 | — | |
| 88650-52B20 |
Amplifier Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | — | |
| 88650-52B30 note |
Amplifier Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSX,WKX,X | — | |
| 88650-52B40 |
Amplifier Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | — | |
| 88650-52E40 |
Amplifier Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NHP170 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
