Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

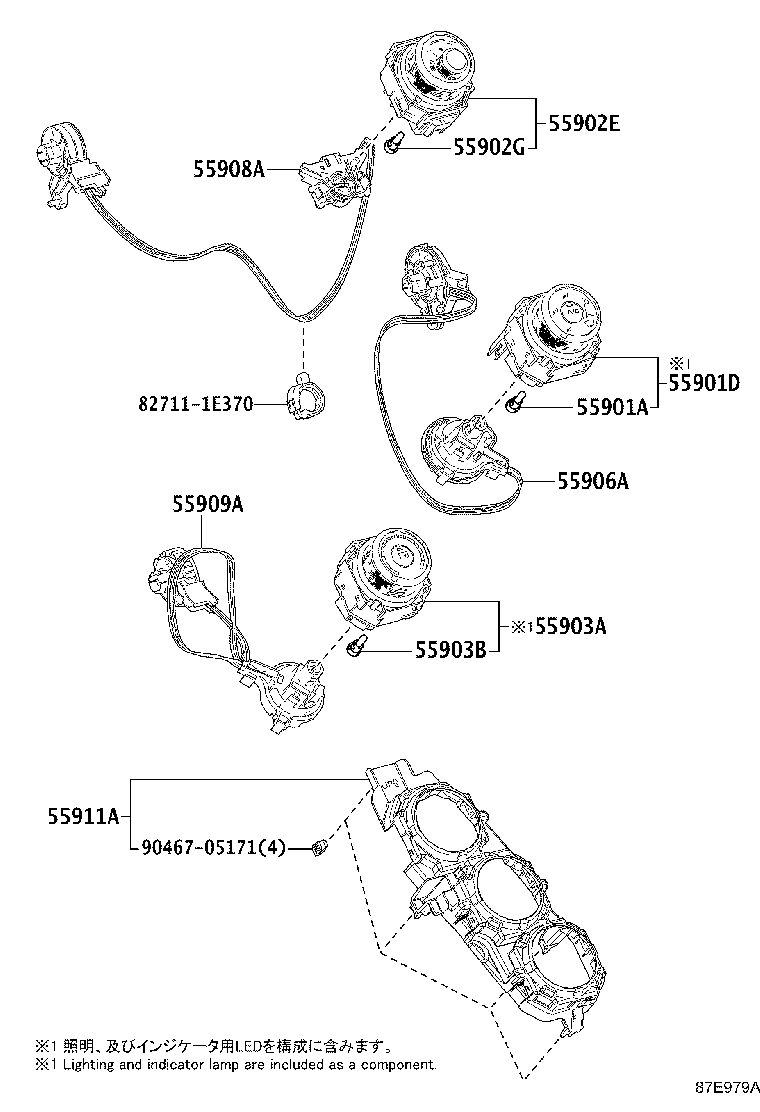

Exploded illustration 87E979A 55901A — BULB, HEATER CONTROL SUB-ASSY, NO.1 (2 parts) 55901D — CONTROL SUB-ASSY, HEATER, NO.1 (2 parts) 55902E — CONTROL SUB-ASSY, HEATER, NO.2 (2 parts) 55902G — BULB, HEATER CONTROL SUB-ASSY, NO.2 (2 parts) 55903A — CONTROL SUB-ASSY, HEATER, NO.3 (4 parts) 55903B — BULB, HEATER CONTROL SUB-ASSY, NO.3 (2 parts) 55906A — CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL (2 parts) 55908A — CABLE SUB-ASSY, AIR INLET DAMPER CONTROL (2 parts) 55909A — CABLE SUB-ASSY, AIRMIX DAMPER CONTROL (2 parts) 55911A — BASE, HEATER CONTROL (2 parts) 827111E370 — not listed in this catalogue 9046705171 — not listed in this catalogue
87E979A · 10 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
55901A — Bulb, Heater Control Sub-assy, NO.1
90010-01142 Bulb, Heater Control Sub-assy, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥330
90010-01142 Bulb, Heater Control Sub-assy, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥330
55901D — Control Sub-assy, Heater, NO.1
55901-52370 Control Sub-assy, Heater, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥2,320
55901-52370 Control Sub-assy, Heater, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥2,320
55902E — Control Sub-assy, Heater, NO.2
55902-52210 Control Sub-assy, Heater, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥1,930
55902-52210 Control Sub-assy, Heater, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥1,930
55902G — Bulb, Heater Control Sub-assy, NO.2
90010-01142 Bulb, Heater Control Sub-assy, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥330
90010-01142 Bulb, Heater Control Sub-assy, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥330
55903A — Control Sub-assy, Heater, NO.3
55903-52640 note Control Sub-assy, Heater, NO.3
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥2,260
55903-52700 Control Sub-assy, Heater, NO.3
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥1,970
55903-52640 note Control Sub-assy, Heater, NO.3
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥2,260
55903-52700 Control Sub-assy, Heater, NO.3
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥1,970
55903B — Bulb, Heater Control Sub-assy, NO.3
90010-01142 Bulb, Heater Control Sub-assy, NO.3
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥330
90010-01142 Bulb, Heater Control Sub-assy, NO.3
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥330
55906A — Cable Sub-assy, Defroster Damper Control
55906-52132 Cable Sub-assy, Defroster Damper Control
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥770
55906-52132 Cable Sub-assy, Defroster Damper Control
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥770
55908A — Cable Sub-assy, Air Inlet Damper Control
55908-52130 Cable Sub-assy, Air Inlet Damper Control
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥770
55908-52130 Cable Sub-assy, Air Inlet Damper Control
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥770
55909A — Cable Sub-assy, Airmix Damper Control
55909-52140 Cable Sub-assy, Airmix Damper Control
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥840
55909-52140 Cable Sub-assy, Airmix Damper Control
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥840
55911A — Base, Heater Control
55911-52030 Base, Heater Control
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥1,570
55911-52030 Base, Heater Control
2018-09 → 2022-07 ended
NCP175,NSP17# FNBSX,WKX,X ¥1,570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
