Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

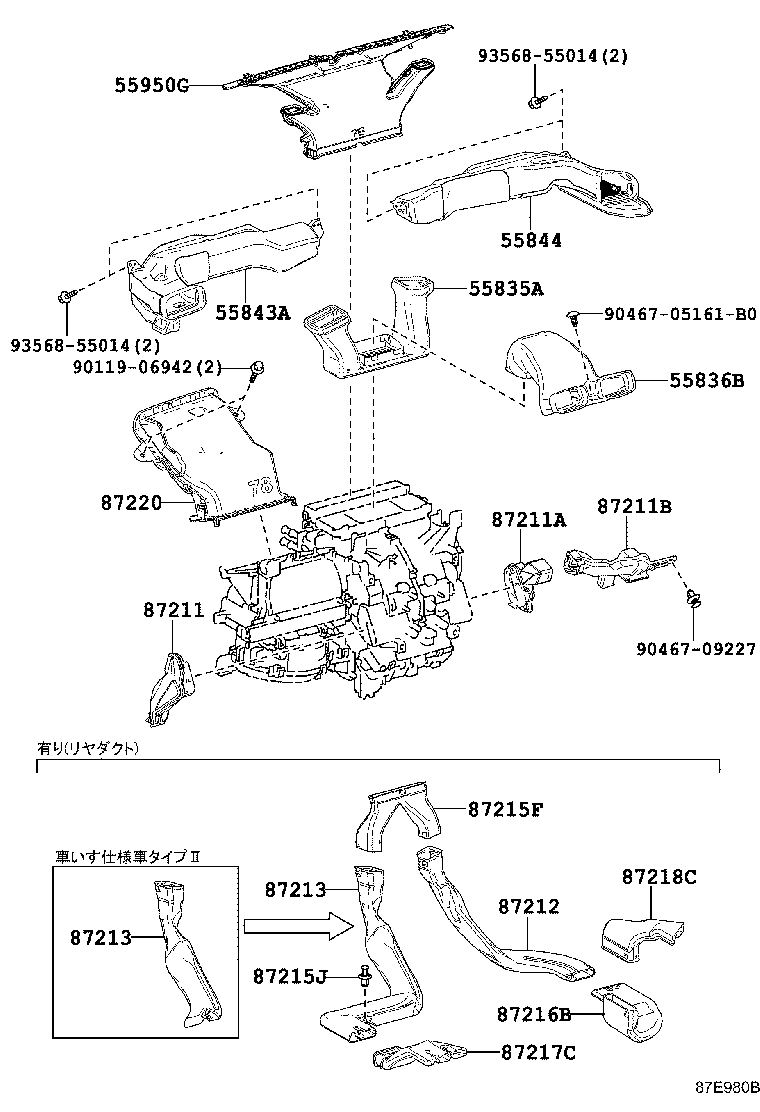

Exploded illustration 87E980B 55835A — DUCT, HEATER TO REGISTER, CENTER (2 parts) 55836B — DUCT, HEATER TO RESISTER, CENTER, NO.2 (2 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (2 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (2 parts) 55950G — NOZZLE ASSY, DEFROSTER (2 parts) 87211 — DUCT, AIR, NO.1 (2 parts) 87211A — DUCT, AIR, NO.2 (3 parts) 87211B — DUCT, AIR, NO.3 (2 parts) 87215F — DUCT, AIR, REAR NO.3 (6 parts) 87217C — DUCT, AIR, REAR NO.5 (2 parts) 87212 — DUCT, AIR, REAR NO.1 (6 parts) 87213 — DUCT, AIR, REAR NO.2 (6 parts) 87213 — DUCT, AIR, REAR NO.2 (6 parts) 87215J — CLIP (FOR AIR REAR DUCT) (4 parts) 87216B — DUCT, AIR, REAR NO.4 (4 parts) 87218C — DUCT, AIR, REAR NO.6 (4 parts) 87220 — DUCT ASSY, AIR (2 parts) 9011906942 — not listed in this catalogue 9046705161B0 — not listed in this catalogue 9046709227 — not listed in this catalogue 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue
87E980B · 17 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
55835A — Duct, Heater TO Register, Center
55835-52080 Duct, Heater TO Register, Center
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,550
55835-52080 Duct, Heater TO Register, Center
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,550
55836B — Duct, Heater TO Resister, Center, NO.2
55836-52100 Duct, Heater TO Resister, Center, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,230
55836-52100 Duct, Heater TO Resister, Center, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,230
55843A — Duct, Heater TO Register, NO.1
55086-52030 Duct, Heater TO Register, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,970
55086-52030 Duct, Heater TO Register, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,970
55844 — Duct, Heater TO Register, NO.2
55084-52130 Duct, Heater TO Register, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,910
55084-52130 Duct, Heater TO Register, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,910
55950G — Nozzle Assy, Defroster
55950-52230 Nozzle Assy, Defroster
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,430
55950-52230 Nozzle Assy, Defroster
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,430
87211 — Duct, Air, NO.1
87211-52200 Duct, Air, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
87211-52200 Duct, Air, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
87211A — Duct, Air, NO.2
87211-52191 Duct, Air, NO.2
2015-06 → 2017-06 ended
NCP175,NHP170,NSP17# —
87211-52192 Duct, Air, NO.2
2017-07 → 2018-09 ended
NCP175,NHP170,NSP17# —
87211-52192 Duct, Air, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
87211B — Duct, Air, NO.3
87211-52211 Duct, Air, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
87211-52211 Duct, Air, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
87212 — Duct, Air, Rear NO.1
87212-52140 Duct, Air, Rear NO.1
2015-06 → 2018-09 ended
NCP175 ¥2,690
87212-52140 note Duct, Air, Rear NO.1
2015-06 → 2018-09 ended
NSP172 X ¥2,690
87212-52140 note Duct, Air, Rear NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥2,690
87212-52140 Duct, Air, Rear NO.1
2018-09 → 2022-07 ended
NCP175 ¥2,690
87212-52140 note Duct, Air, Rear NO.1
2018-09 → 2022-07 ended
NSP172 WKX ¥2,690
87212-52140 note Duct, Air, Rear NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥2,690
87213 — Duct, Air, Rear NO.2
87213-52080 Duct, Air, Rear NO.2
2015-06 → 2018-09 ended
NCP175 ¥3,830
87213-52080 note Duct, Air, Rear NO.2
2015-06 → 2018-09 ended
NHP170,NSP17# ¥3,830
87213-52100 note Duct, Air, Rear NO.2
2015-06 → 2018-09 ended
NSP172 X ¥2,400
87213-52080 note Duct, Air, Rear NO.2
2018-09 → 2022-07 ended
NHP170,NSP17# ¥3,830
87213-52080 Duct, Air, Rear NO.2
2018-09 → 2022-07 ended
NCP175 ¥3,830
87213-52100 note Duct, Air, Rear NO.2
2018-09 → 2022-07 ended
NSP172 WKX ¥2,400
87215F — Duct, Air, Rear NO.3
87215-52050 Duct, Air, Rear NO.3
2015-06 → 2018-09 ended
NCP175 ¥940
87215-52050 note Duct, Air, Rear NO.3
2015-06 → 2018-09 ended
NSP172 X ¥940
87215-52050 note Duct, Air, Rear NO.3
2015-06 → 2018-09 ended
NHP170,NSP17# ¥940
87215-52050 Duct, Air, Rear NO.3
2018-09 → 2022-07 ended
NCP175 ¥940
87215-52050 note Duct, Air, Rear NO.3
2018-09 → 2022-07 ended
NSP172 WKX ¥940
87215-52050 note Duct, Air, Rear NO.3
2018-09 → 2022-07 ended
NHP170,NSP17# ¥940
87215J — Clip (FOR AIR REAR DUCT)
90467-07214 Clip (FOR AIR REAR DUCT)
2015-06 → 2018-09 ended
NCP175 ¥70
90467-07214 note Clip (FOR AIR REAR DUCT)
2015-06 → 2018-09 ended
NHP170,NSP17# ¥70
90467-07214 note Clip (FOR AIR REAR DUCT)
2018-09 → 2022-07 ended
NHP170,NSP17# ¥70
90467-07214 Clip (FOR AIR REAR DUCT)
2018-09 → 2022-07 ended
NCP175 ¥70
87216B — Duct, Air, Rear NO.4
87216-52070 note Duct, Air, Rear NO.4
2015-06 → 2018-09 ended
NSP172 X ¥1,550
87216-52070 note Duct, Air, Rear NO.4
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,550
87216-52070 note Duct, Air, Rear NO.4
2018-09 → 2022-07 ended
NSP172 WKX ¥1,550
87216-52070 note Duct, Air, Rear NO.4
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,550
87217C — Duct, Air, Rear NO.5
87217-52050 note Duct, Air, Rear NO.5
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,030
87217-52050 note Duct, Air, Rear NO.5
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,030
87218C — Duct, Air, Rear NO.6
87218-52010 note Duct, Air, Rear NO.6
2015-06 → 2018-09 ended
NSP172 X ¥950
87218-52010 note Duct, Air, Rear NO.6
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥950
87218-52010 note Duct, Air, Rear NO.6
2018-09 → 2022-07 ended
NSP172 WKX ¥950
87218-52010 note Duct, Air, Rear NO.6
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥950
87220 — Duct Assy, Air
87220-52060 Duct Assy, Air
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
87220-52060 Duct Assy, Air
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
