Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

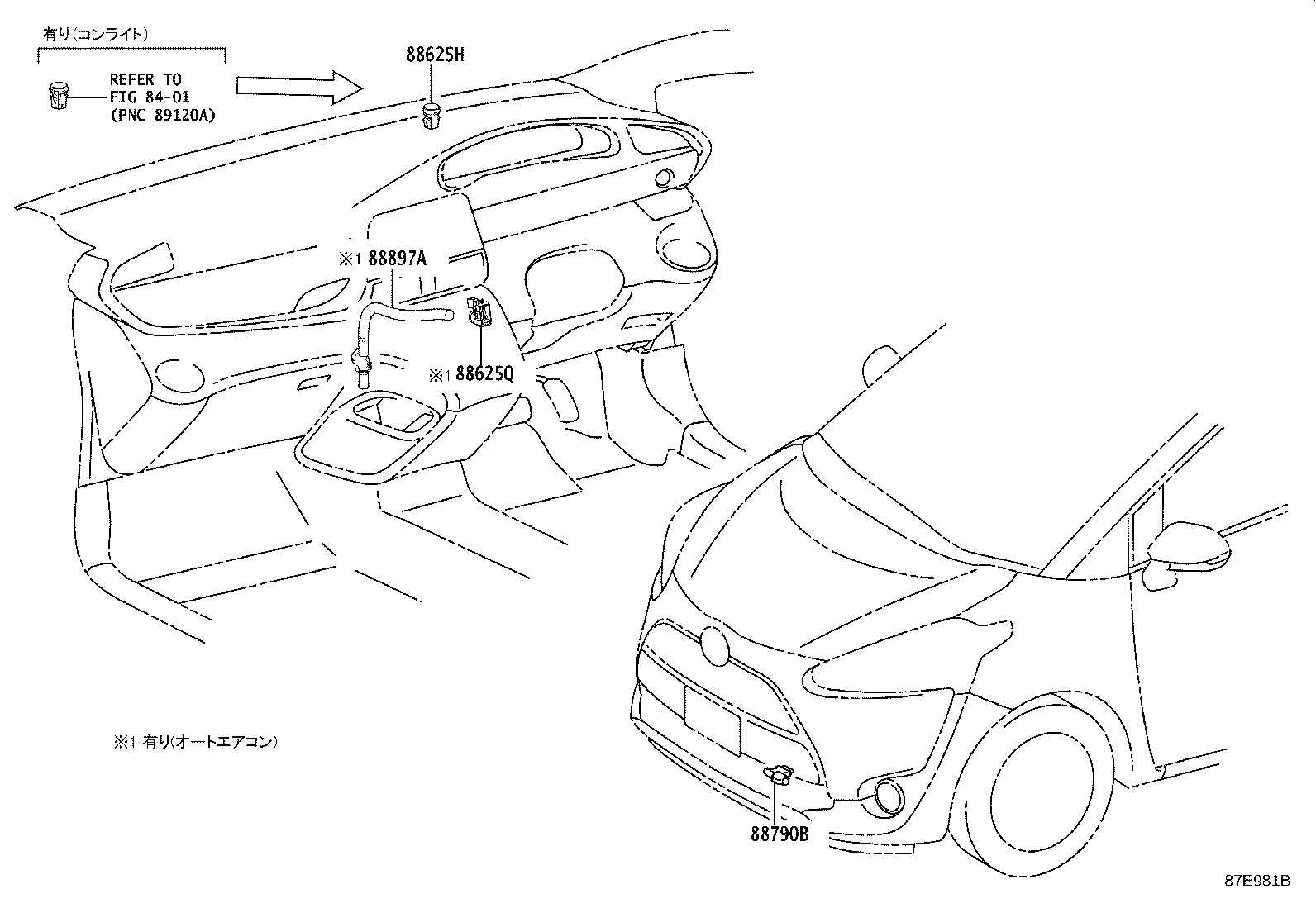

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88625H — Thermistor, Cooler (SOLAR SENSOR) | ||||
| 88625-52130 |
Thermistor, Cooler (SOLAR SENSOR)
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | — | |
| 88625-52130 |
Thermistor, Cooler (SOLAR SENSOR)
2018-09 → 2021-06
ended
|
NHP170 FNBSG,FNBSX,G,X;NCP175,NSP17# FNBSG,G,WKG | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2018-09 → 2022-07
ended
|
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | — | |
| 88790B — Thermistor Assy | ||||
| 88790-28100 |
Thermistor Assy
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥0 | |
| 88790-28100 |
Thermistor Assy
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥0 | |
| 88897A — Pipe, Aspirator | ||||
| 88505-52030 |
Pipe, Aspirator
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | — | |
| 88505-52030 |
Pipe, Aspirator
2018-09 → 2022-07
ended
|
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
