Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

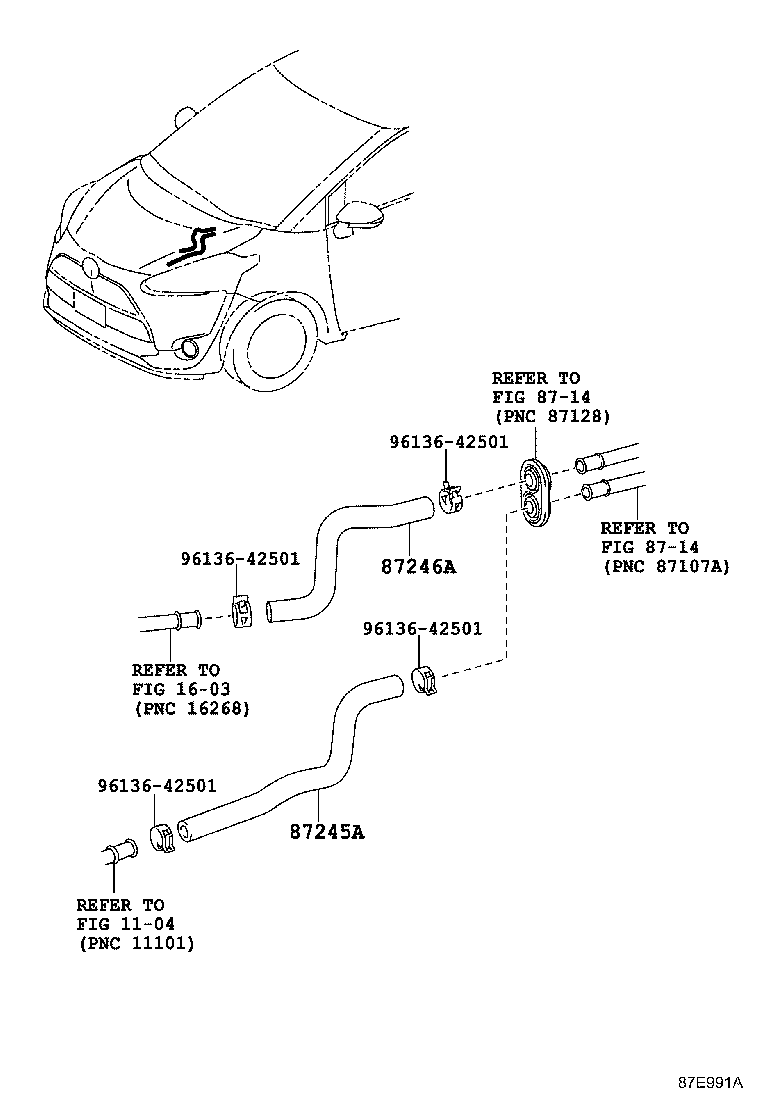

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87209-52192 |
Hose, Heater Water, Inlet A
2015-06 → 2018-09
ended
|
NCP175 | ¥3,640 | |
| 87209-52300 |
Hose, Heater Water, Inlet A
2015-07 → 2018-09
ended
|
NHP170 | ¥1,020 | |
| 87245-52300 |
Hose, Heater Water, Inlet A
2015-06 → 2018-09
ended
|
NSP17# | ¥1,510 | |
| 87209-52192 |
Hose, Heater Water, Inlet A
2018-09 → 2022-07
ended
|
NCP175 | ¥3,640 | |
| 87209-52300 |
Hose, Heater Water, Inlet A
2018-09 → 2022-07
ended
|
NHP170 | ¥1,020 | |
| 87245-52300 |
Hose, Heater Water, Inlet A
2018-09 → 2022-07
ended
|
NSP17# | ¥1,510 | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-52110 |
Hose, Heater Water, Outlet A
2015-06 → 2018-09
ended
|
NCP175 | ¥1,070 | |
| 87245-52270 |
Hose, Heater Water, Outlet A
2015-07 → 2018-09
ended
|
NHP170 | ¥820 | |
| 87245-52330 |
Hose, Heater Water, Outlet A
2015-06 → 2018-09
ended
|
NSP17# | ¥730 | |
| 87245-52110 |
Hose, Heater Water, Outlet A
2018-09 → 2022-07
ended
|
NCP175 | ¥1,070 | |
| 87245-52270 |
Hose, Heater Water, Outlet A
2018-09 → 2022-07
ended
|
NHP170 | ¥820 | |
| 87245-52330 |
Hose, Heater Water, Outlet A
2018-09 → 2022-07
ended
|
NSP17# | ¥730 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
