Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

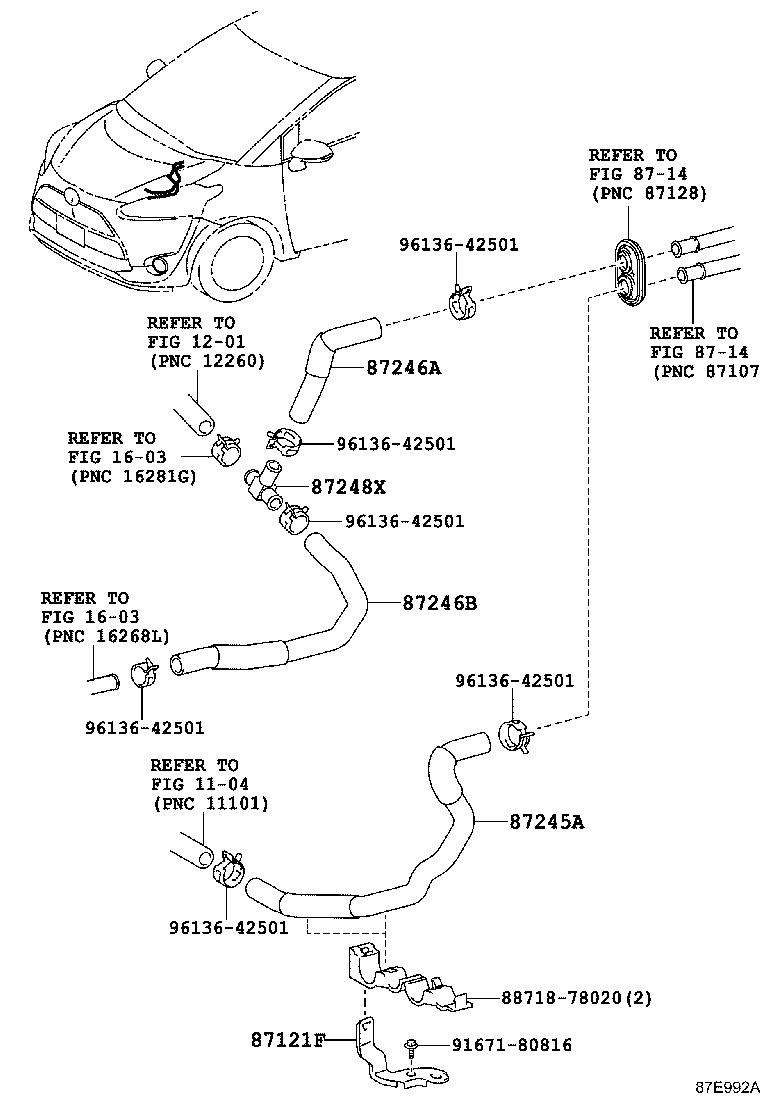

Exploded illustration 87E992A 87245A — HOSE, HEATER WATER, INLET A (6 parts) 87246A — HOSE, HEATER WATER, OUTLET A (6 parts) 87248X — PIPE, HEATER WATER (2 parts) 87121F — BRACKET, HEATER (2 parts) 87246B — HOSE, HEATER WATER, OUTLET B (2 parts) 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1201 — not listed in this catalogue 1104 — not listed in this catalogue 8714 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9167180816 — not listed in this catalogue 8871878020 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613642501 — not listed in this catalogue 8714 — not listed in this catalogue
87E992A · 5 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
87121F — Bracket, Heater
87121-52070 Bracket, Heater
2015-06 → 2018-09 ended
NSP17# —
87121-52070 Bracket, Heater
2018-09 → 2022-07 ended
NSP17# —
87245A — Hose, Heater Water, Inlet A
87209-52192 Hose, Heater Water, Inlet A
2015-06 → 2018-09 ended
NCP175 ¥3,640
87209-52300 Hose, Heater Water, Inlet A
2015-07 → 2018-09 ended
NHP170 ¥1,020
87245-52300 Hose, Heater Water, Inlet A
2015-06 → 2018-09 ended
NSP17# ¥1,510
87209-52192 Hose, Heater Water, Inlet A
2018-09 → 2022-07 ended
NCP175 ¥3,640
87209-52300 Hose, Heater Water, Inlet A
2018-09 → 2022-07 ended
NHP170 ¥1,020
87245-52300 Hose, Heater Water, Inlet A
2018-09 → 2022-07 ended
NSP17# ¥1,510
87246A — Hose, Heater Water, Outlet A
87245-52110 Hose, Heater Water, Outlet A
2015-06 → 2018-09 ended
NCP175 ¥1,070
87245-52270 Hose, Heater Water, Outlet A
2015-07 → 2018-09 ended
NHP170 ¥820
87245-52330 Hose, Heater Water, Outlet A
2015-06 → 2018-09 ended
NSP17# ¥730
87245-52110 Hose, Heater Water, Outlet A
2018-09 → 2022-07 ended
NCP175 ¥1,070
87245-52270 Hose, Heater Water, Outlet A
2018-09 → 2022-07 ended
NHP170 ¥820
87245-52330 Hose, Heater Water, Outlet A
2018-09 → 2022-07 ended
NSP17# ¥730
87246B — Hose, Heater Water, Outlet B
87245-52360 Hose, Heater Water, Outlet B
2015-06 → 2018-09 ended
NSP17# ¥1,070
87245-52360 Hose, Heater Water, Outlet B
2018-09 → 2022-07 ended
NSP17# ¥1,070
87248X — Pipe, Heater Water
87248-26880 Pipe, Heater Water
2015-06 → 2018-09 ended
NSP17# ¥0
87248-26880 Pipe, Heater Water
2018-09 → 2022-07 ended
NSP17# ¥0
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
