Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

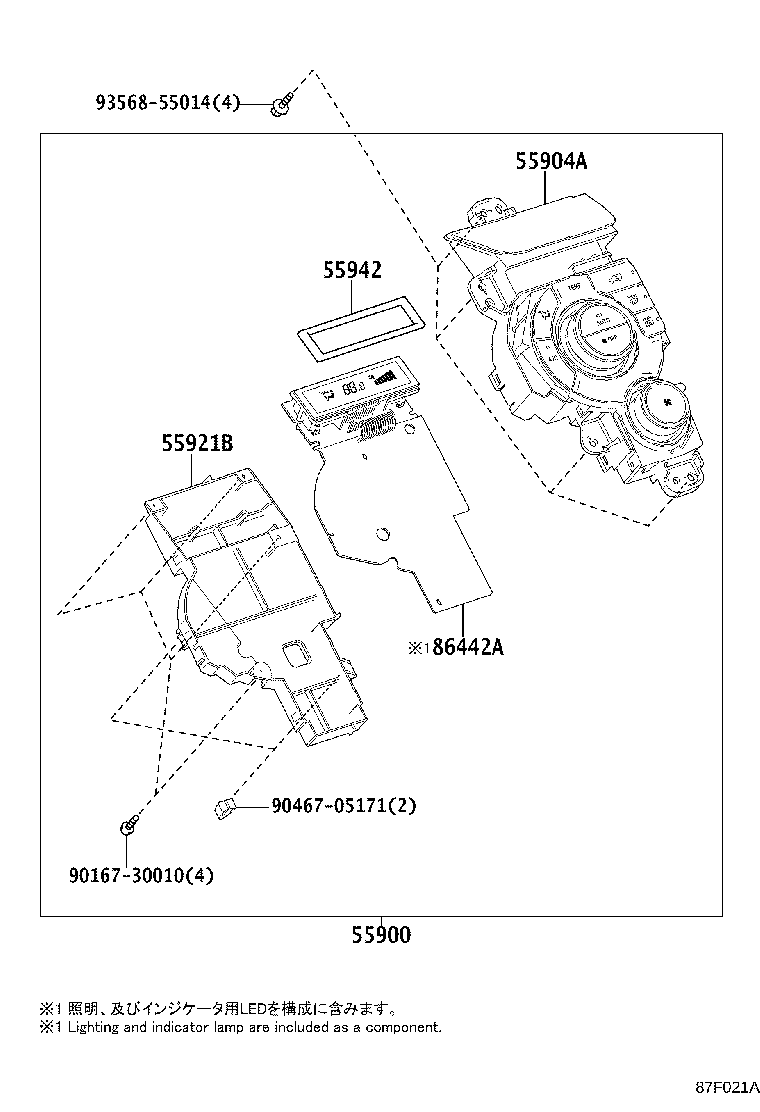

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55900 — Control Assy, Air Conditioner | ||||
| 55900-52890-A0 note |
Control Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | ¥39,900 | |
| 55900-52890-C0 note |
Control Assy, Air Conditioner
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | ¥39,900 | |
| 55900-52891-A0 note |
Control Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NHP170 G,X;NCP175,NSP17# G,WKG | ¥33,200 | |
| 55900-52891-C0 note |
Control Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,G | ¥33,200 | |
| 55900-52891-C0 note |
Control Assy, Air Conditioner
2018-09 → 2022-07
ended
|
NHP170 FNBSX,FNGCR,GCERO,X;NCP175,NSP17# FNGCR,GCERO,WKG | ¥33,200 | |
| 55904A — Housing Sub-assy, Heater Control | ||||
| 55904-52060-A0 note |
Housing Sub-assy, Heater Control
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | ¥16,300 | |
| 55904-52060-C0 note |
Housing Sub-assy, Heater Control
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | ¥16,300 | |
| 55904-52060-A0 note |
Housing Sub-assy, Heater Control
2018-09 → 2022-07
ended
|
NHP170 G,X;NCP175,NSP17# G,WKG | ¥16,300 | |
| 55904-52060-C0 note |
Housing Sub-assy, Heater Control
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSG,G | ¥16,300 | |
| 55904-52060-C0 note |
Housing Sub-assy, Heater Control
2018-09 → 2022-07
ended
|
NHP170 FNBSX,FNGCR,GCERO,X;NCP175,NSP17# FNGCR,GCERO,WKG | ¥16,300 | |
| 55921B — Retainer, Heater Control | ||||
| 55921-52060 |
Retainer, Heater Control
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | ¥1,400 | |
| 55921-52060 |
Retainer, Heater Control
2018-09 → 2022-07
ended
|
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥1,400 | |
| 55942 — Guard, Heater Control | ||||
| 55942-52020 |
Guard, Heater Control
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | ¥280 | |
| 55942-52020 |
Guard, Heater Control
2018-09 → 2022-07
ended
|
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥280 | |
| 86442A — Board, Heater Control Switch | ||||
| 86442-52070 |
Board, Heater Control Switch
2015-06 → 2018-09
ended
|
NHP170;NCP175,NSP17# G | ¥22,700 | |
| 86442-52071 |
Board, Heater Control Switch
2018-09 → 2022-07
ended
|
NHP170;NCP175,NSP17# FNBSG,FNGCR,G,GCERO,WKG | ¥18,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
