Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

65 part groups · 13 illustrations

Illustrations

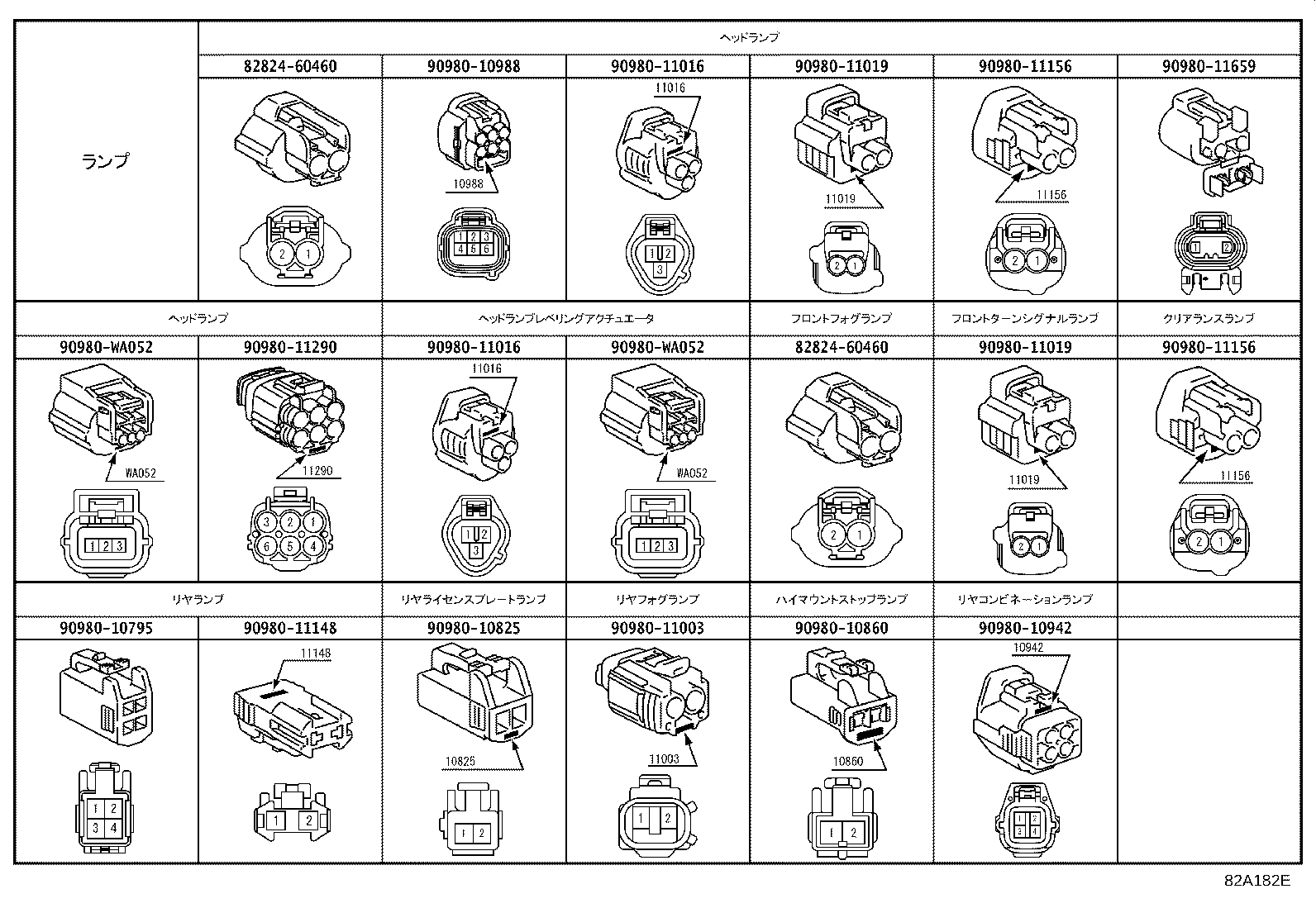

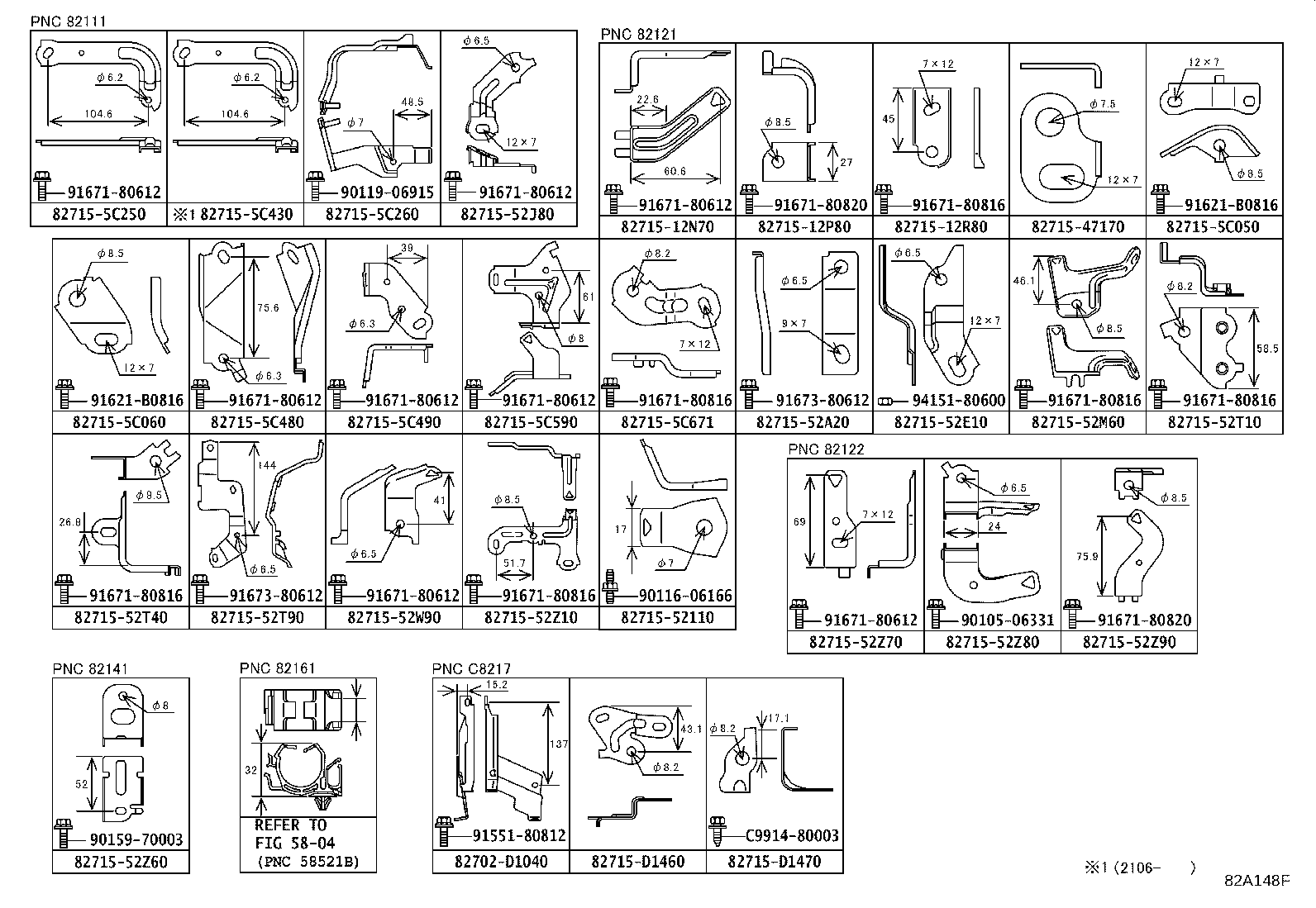

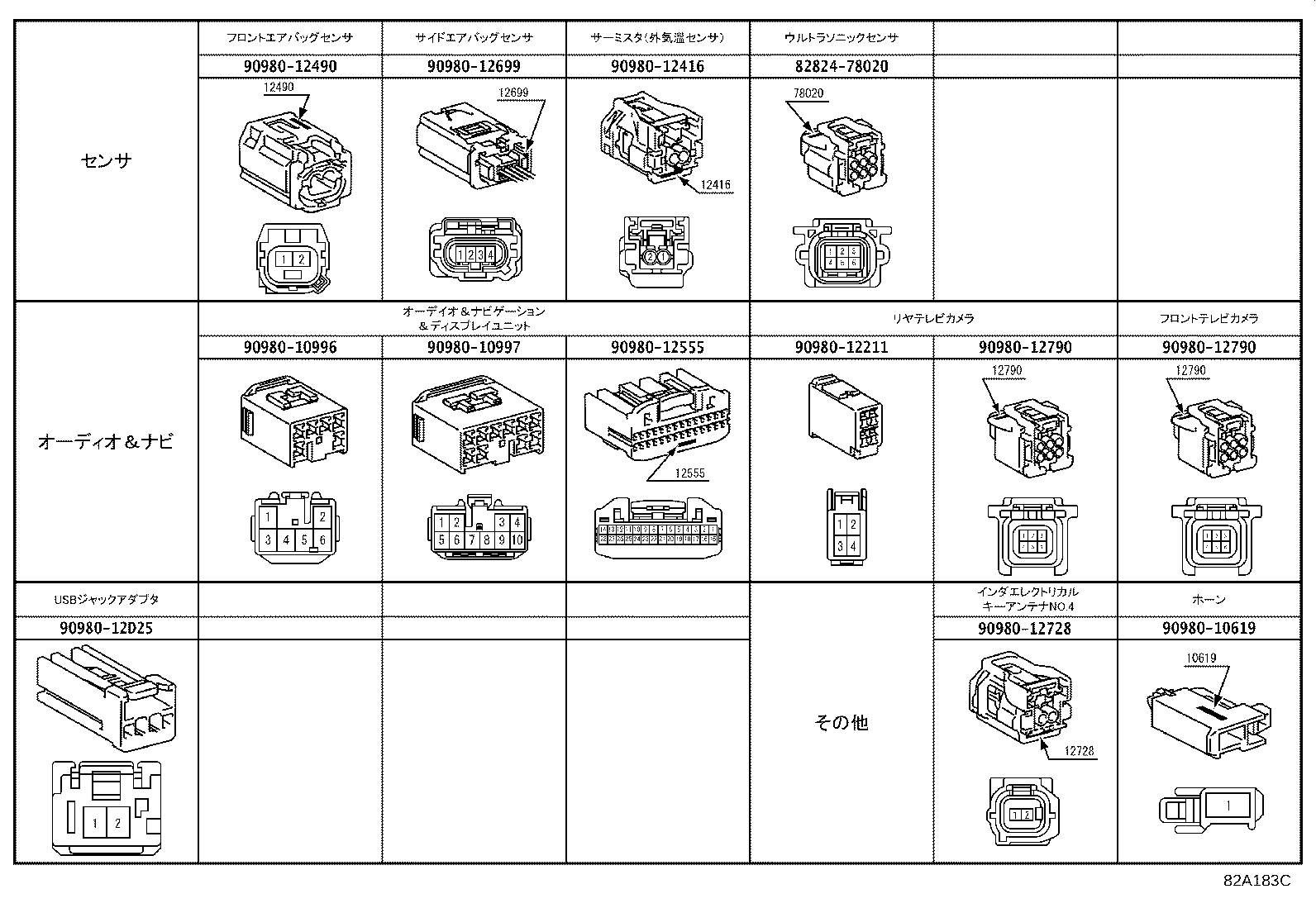

Figure 82A138E 82A138E 2015-06 → — Figure 82A139H 82A139H 2015-07 → — Figure 82A140 82A140 2015-06 → — Figure 82A144A 82A144A 2015-06 → — Figure 82A141 82A141 2015-07 → — Figure 82A142A 82A142A 2015-06 → — Figure 82A143A 82A143A 2015-06 → — Figure 82A145I 82A145I 2015-06 → — Figure 82A146C 82A146C 2015-07 → — Figure 82A610 82A610 2015-12 → — Figure 82A148F 82A148F 2015-06 → — Figure 82A182E 82A182E 2015-06 → — Figure 82A183C 82A183C 2015-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82156 Wire, Slide Door
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82164C Wire, Floor, NO.4
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82214C Wire, Room Lamp
82219A Wire, Sensor
82284 Wire, Earth
82504 Wire Sub-assy, Floor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82669A Cover, Connector Holder Block, Lower
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82821A Cover, Connector
82823T Cap, Alternator Terminal
82825 Protector, Wiring Harness
C8211 Wire, Switch TO Power Lift Motor
C8213 Wire, Power Lift Motor TO Body
C8217 Wire, Welcab Seat Main
C8231 Wire, Tecs Frame
C8269 Cable, Power Supply
C8543 Resistor, Emergency
C8639 Cover, Fuse
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
