Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Height Control (AUTO-LEVELER)

22 part groups · 2 illustrations

Illustrations

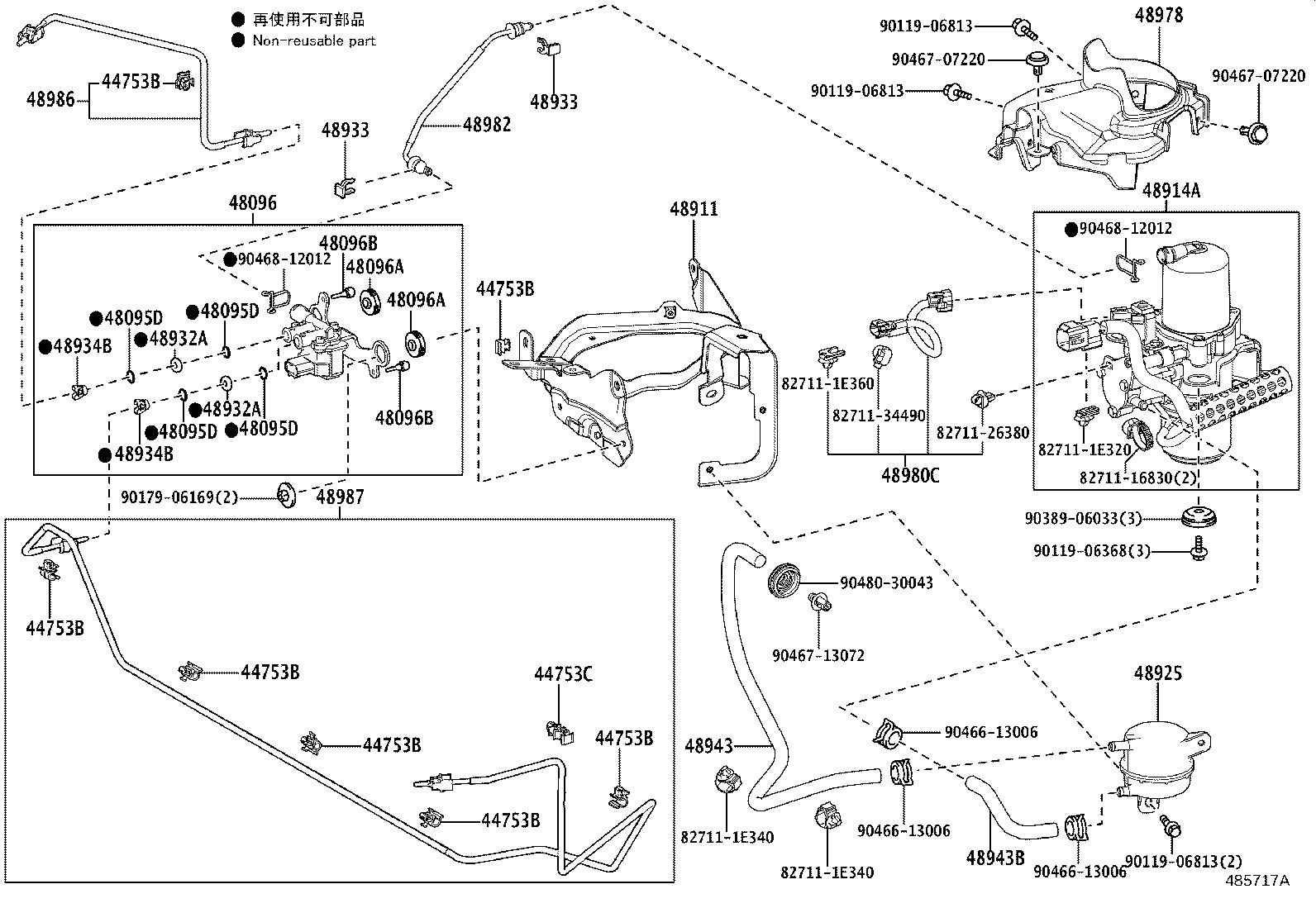

Figure 485716A 485716A 2022-07 → — Figure 485717A 485717A 2022-07 → —

Part groups

PNCDescription
44753B Clamp, Height Control Tube, NO.1
44753C Clamp, Height Control Tube, NO.2
48095D Ring, O(FOR HEIGHT CONTROL VALVE)
48096 Valve Sub-assy, Height Control, NO.2
48096A Bush, NO.2(FOR HEIGHT CONTROL VALVE)
48096B Cushion, NO.2(FOR HEIGHT CONTROL VALVE)
48911 Bracket, Height Control Compressor
48913B Cover, Height Control Pump
48914A Compressor, Height Control, NO.1
48925 Filter, Height Control
48932A Plate, Height Control Tube
48933 Holder, Air Connector Clip
48934B Connector, Height Control Tube
48943 Hose, Height Control, NO.1
48943B Hose, Height Control, NO.2
48945 Bracket, Height Control Hose, RH
48978 Cover, Height Control Compressor
48980C Harness Assy, Height Control Valve
48982 Tube, Height Control, NO.2
48986 Tube, Height Control, NO.6
48987 Tube, Height Control, NO.7
489A3 Bracket, Height Control Protector, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
