Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

31 part groups · 2 illustrations

Illustrations

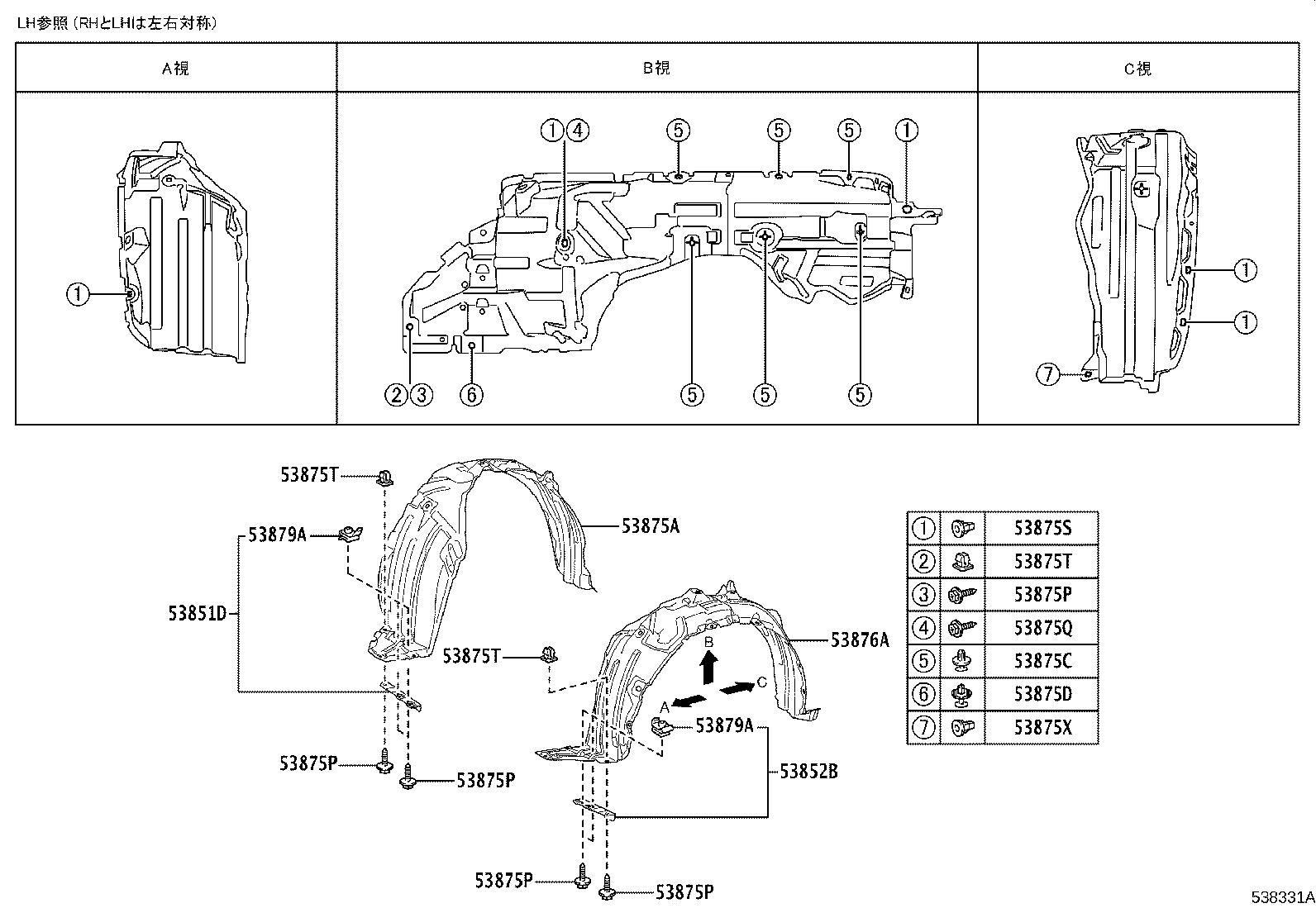

Figure 538330A 538330A 2022-07 → — Figure 538331A 538331A 2022-07 → —

Part groups

PNCDescription
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53155C Seal, Radiator Grille, NO.1
53156H Seal, Radiator Grille, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53807D Reinforcement Sub-assy, Front Fender, Top RH
53808D Reinforcement Sub-assy, Front Fender, Top LH
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858B Retainer, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53866A Clip(FOR FRONT FENDER TO COWL SIDE SEAL)
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875P Screw, NO.1
53875Q Screw, NO.2
53875S Grommet, NO.1
53875T Grommet, NO.2
53875X Grommet, NO.3
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
