Toyota Sienta
2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan
Supported model
Data version 2022-07

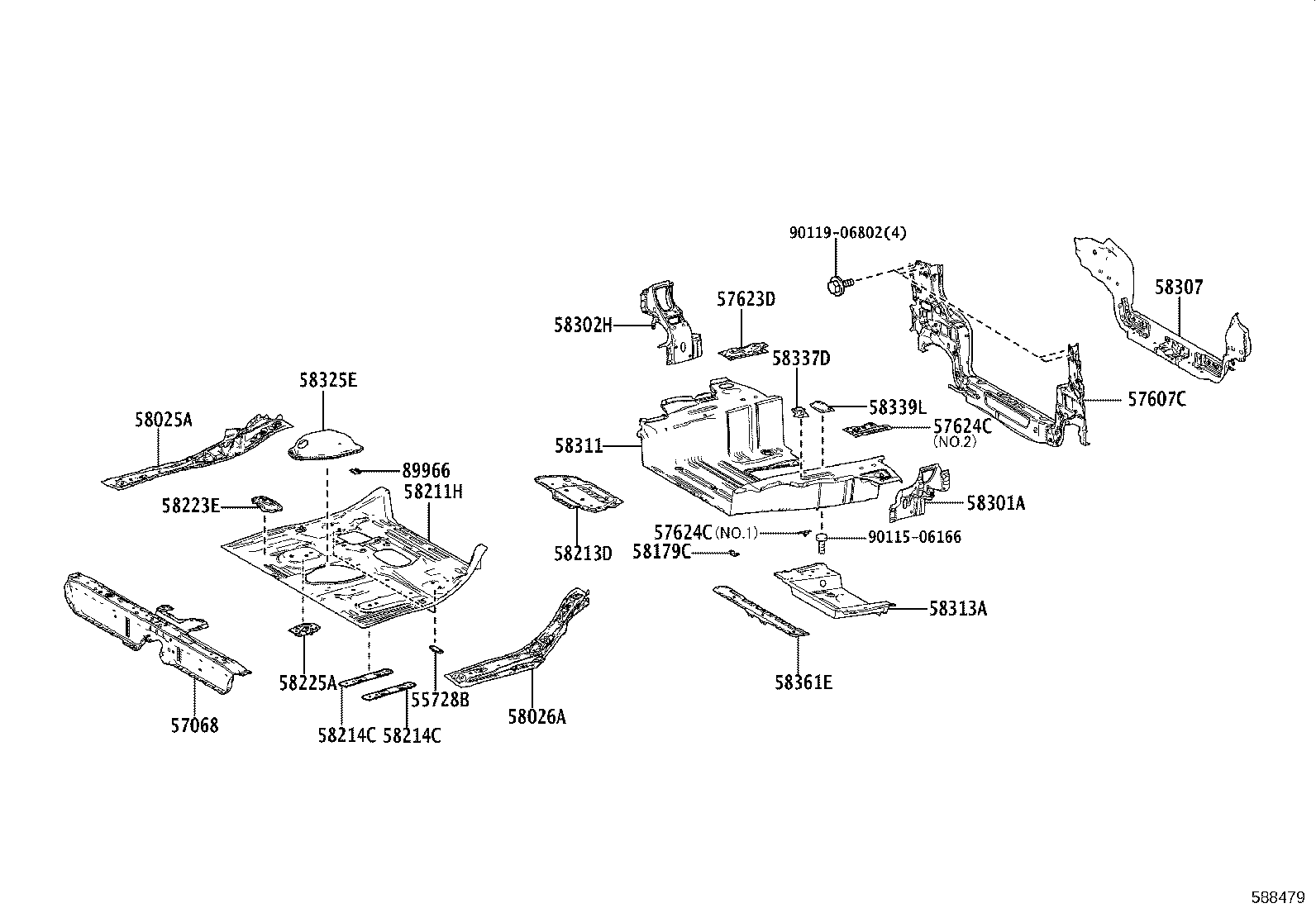

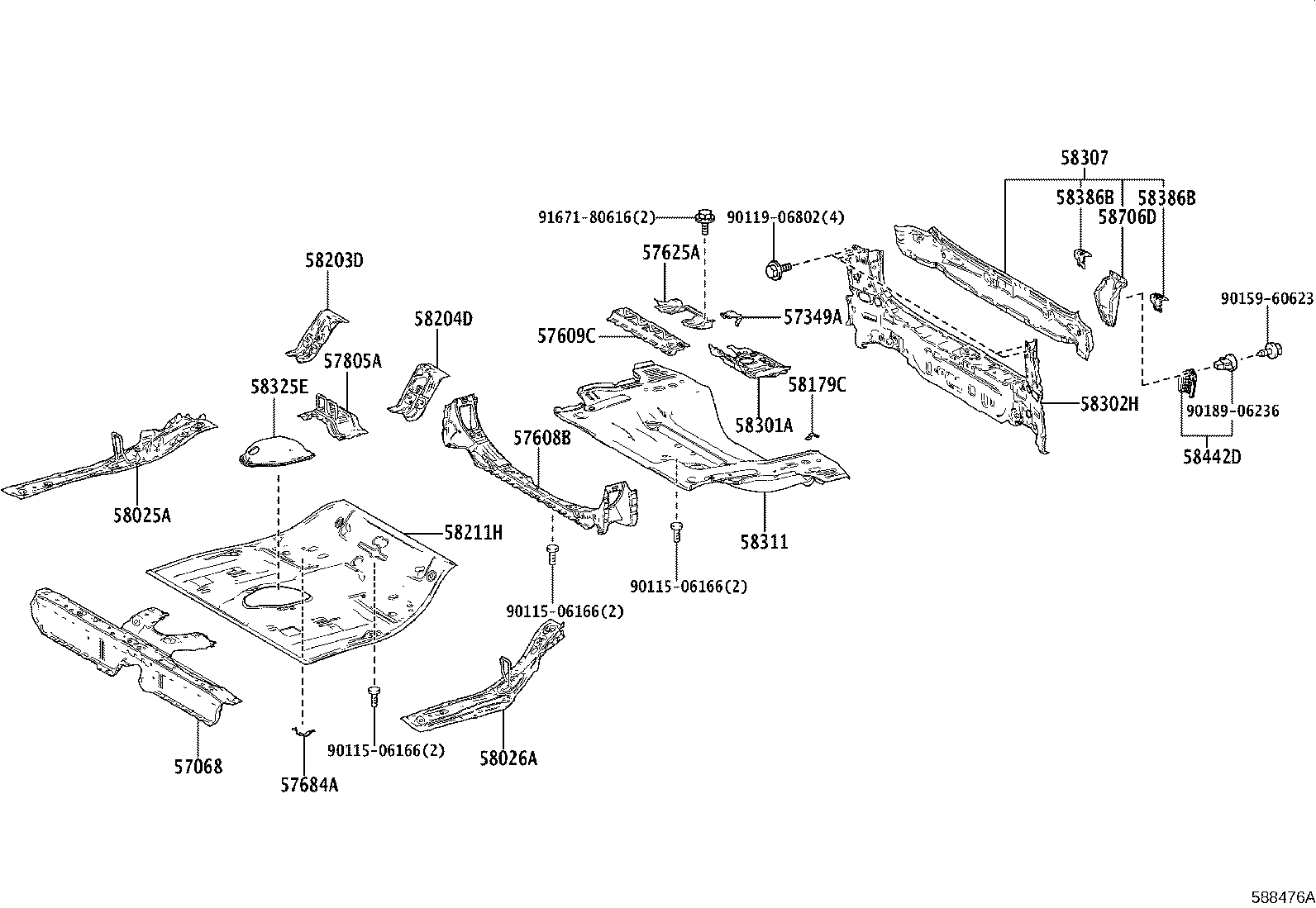

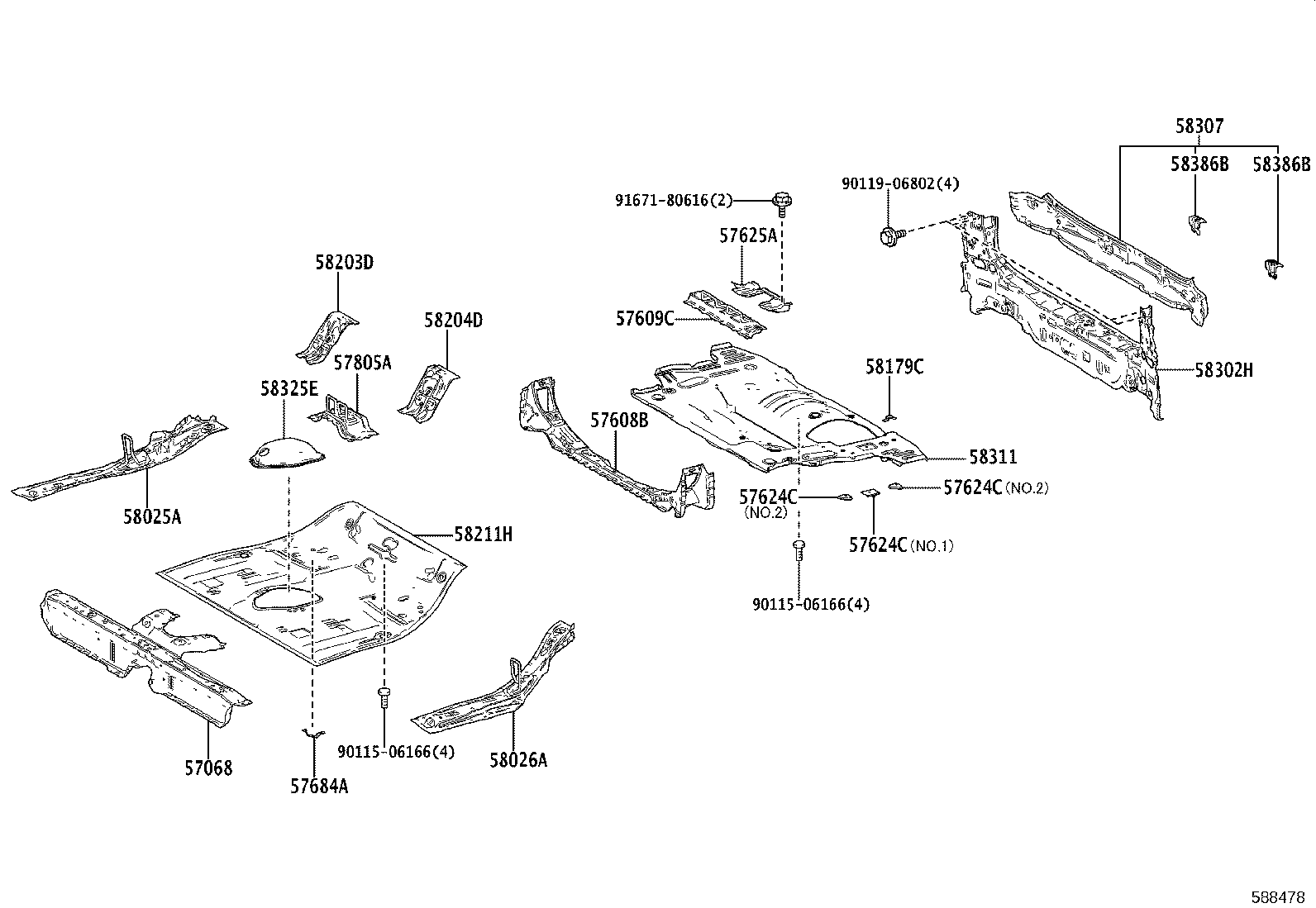

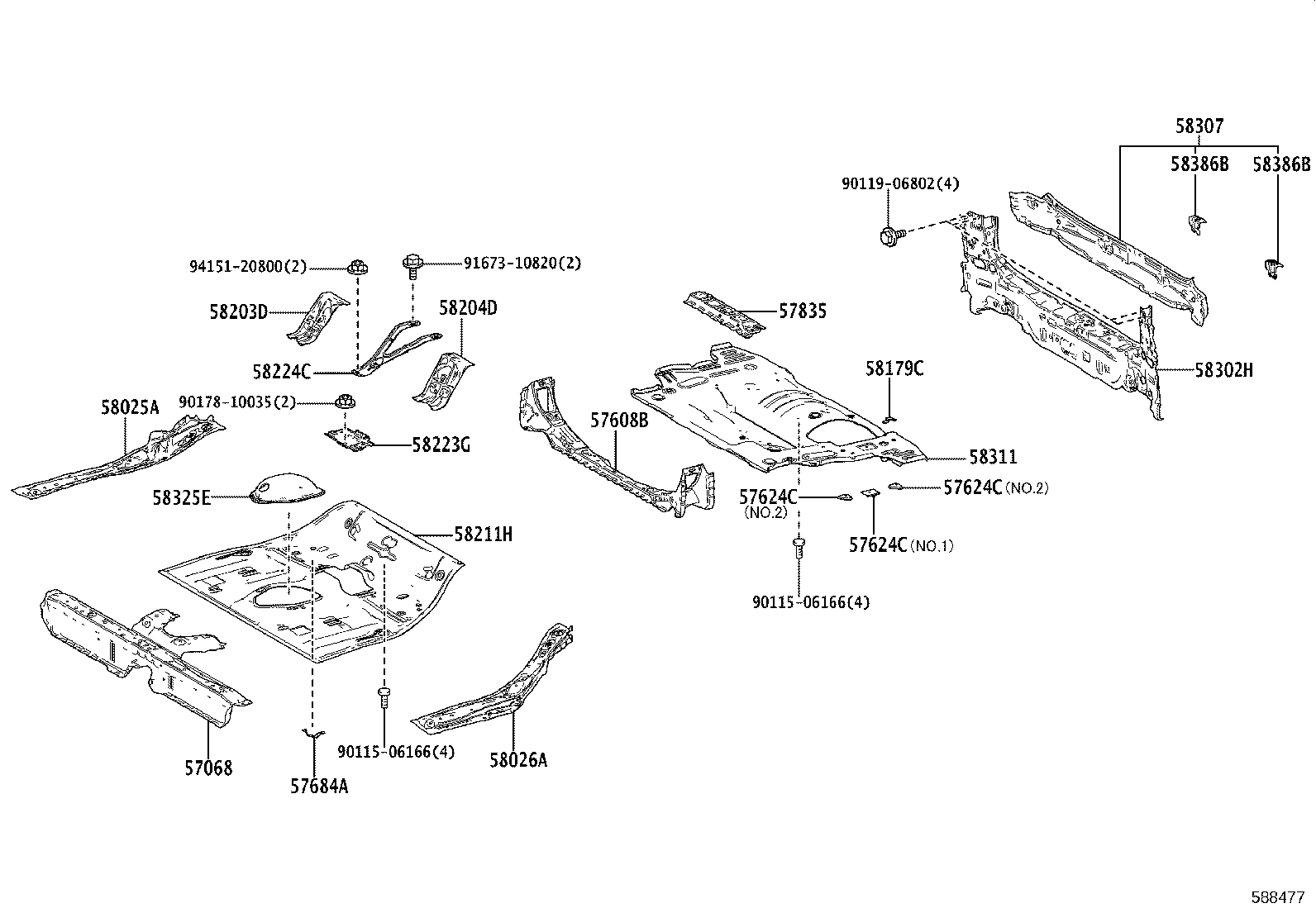

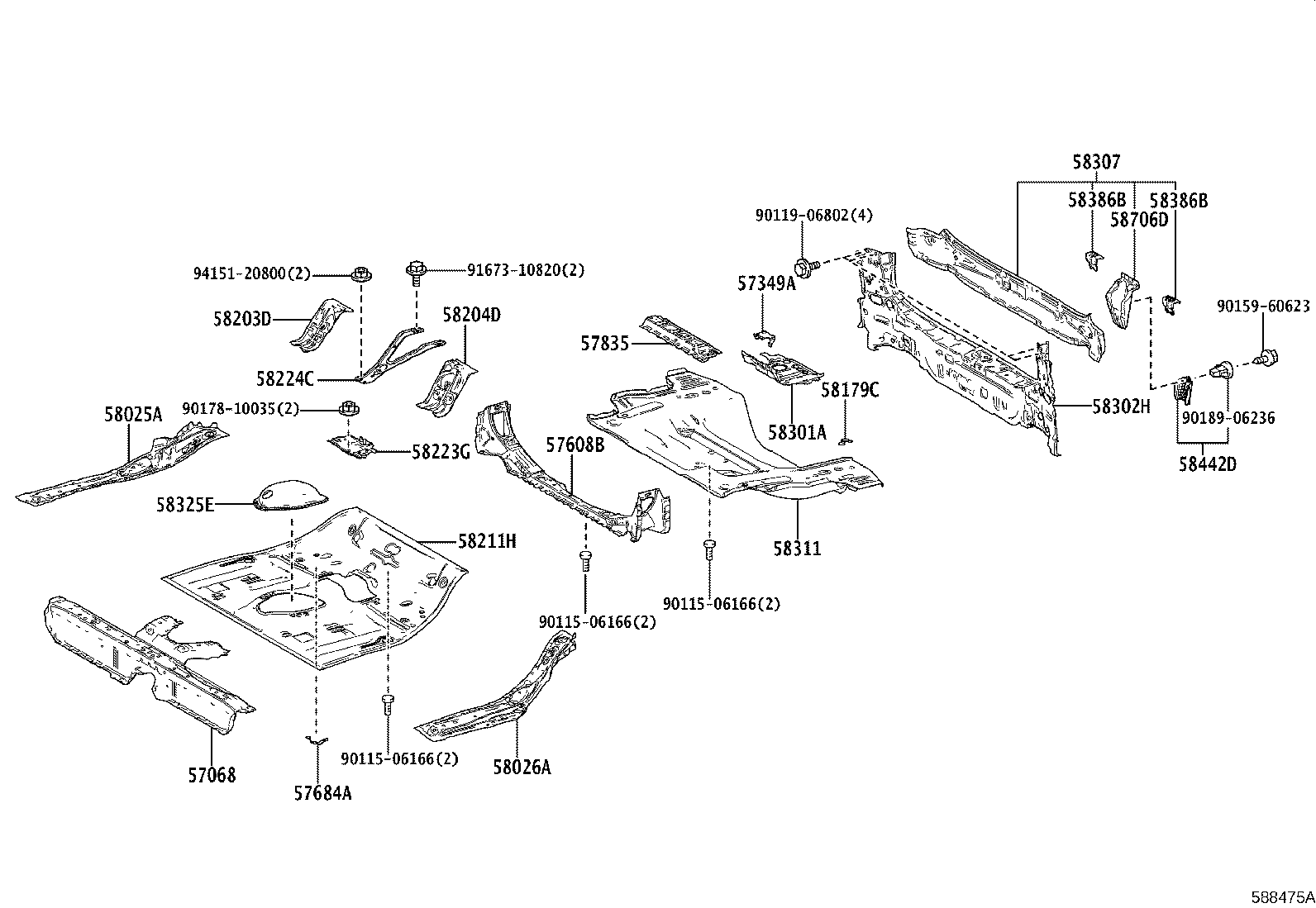

Floor Pan & Lower Back Panel
61 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55129D | Cover, Dash Panel Hole, RH |
| 55139B | Cover, Dash Panel Hole, LH |
| 55728B | Reinforcement, Hood Stopper |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57044A | Reinforcement Sub-assy, Front Side Member, Rear LH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57068 | Member Sub-assy, Rear Floor Rear Cross, Inner |
| 57349A | Bracket, Battery Box Clamp, B |
| 57442 | Plug, Step Panel Hole |
| 57455C | Bracket, Front Seat Mounting, Outside RH |
| 57533B | Brace, Front Floor, Center |
| 57607C | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57608B | Member Sub-assy, Rear Floor Cross, NO.4 |
| 57609C | Member Sub-assy, Rear Floor Cross, NO.5 |
| 57623D | Plate, Rear Floor Side Member, RR RH |
| 57624C | Plate, Rear Floor Side Member, RR LH |
| 57625A | Reinforcement, Rear Floor Side Member, Rear Outside |
| 57684A | Bracket, Fuel Tank Mounting, NO.2 |
| 57805A | Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1 |
| 57805F | Reinforcement Sub-assy, Belt Anchor, NO.1 |
| 57835 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.1 |
| 58015C | Panel Sub-assy, Front Floor Housing |
| 58018B | Panel Sub-assy, Front Floor Housing, Rear LH |
| 58021E | Pan Sub-assy, Center Floor, NO.2 |
| 58025A | Panel Sub-assy, Floor Side Rail, FR RH |
| 58026A | Panel Sub-assy, Floor Side Rail, FR LH |
| 58091A | Reinforcement Set, Body Fitting |
| 58102F | Panel Sub-assy, Front Floor, LH |
| 58103C | Reinforcement Sub-assy, Front Floor, Front |
| 58106F | Bracket Sub-assy, Front Seat Mounting, Outside LH |
| 58111A | Pan, Front Floor, RH |
| 58112A | Panel, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58132A | Bracket, Front Floor Heat Insulator, NO.2 |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58175A | Reinforcement, Parking Brake Base, NO.1 |
| 58179C | Bracket, Clamp Floor |
| 58203D | Bracket Sub-assy, Rear Seat Hinge, Outer RH |
| 58204D | Bracket Sub-assy, Rear Seat Hinge, Outer LH |
| 58211H | Pan, Center Floor |
| 58213D | Reinforcement, Center Floor Panel |
| 58214C | Reinforcement, Center Floor Panel, LH |
| 58217B | Plate, Front Floor |
| 58223E | Reinforcement, Floor Panel Side, RH |
| 58223G | Reinforcement, Seat Set, NO.1 |
| 58224C | Reinforcement, Seat Set, NO.2 |
| 58225A | Bracket, Center Mounting |
| 58239D | Bracket, Cable Clamp |
| 58301A | Panel Sub-assy, Rear Floor |
| 58302H | Panel Sub-assy, Lower Back |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313A | Extension, Rear Floor Front Panel |
| 58325E | Cover, Rear Floor Service Hole |
| 58337D | Reinforcement, Rear Floor Pan, LH |
| 58339L | Reinforcement, Rear Floor Pan, NO.2 LH |
| 58361E | Reinforcement, Rear Floor Panel, NO.1 |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58442D | Cover, Jack |
| 58706D | Bracket Sub-assy, Jack Carrier, NO.1 |
| 89966 | Bracket, Oscillator Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
