Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 4 illustrations

Illustrations

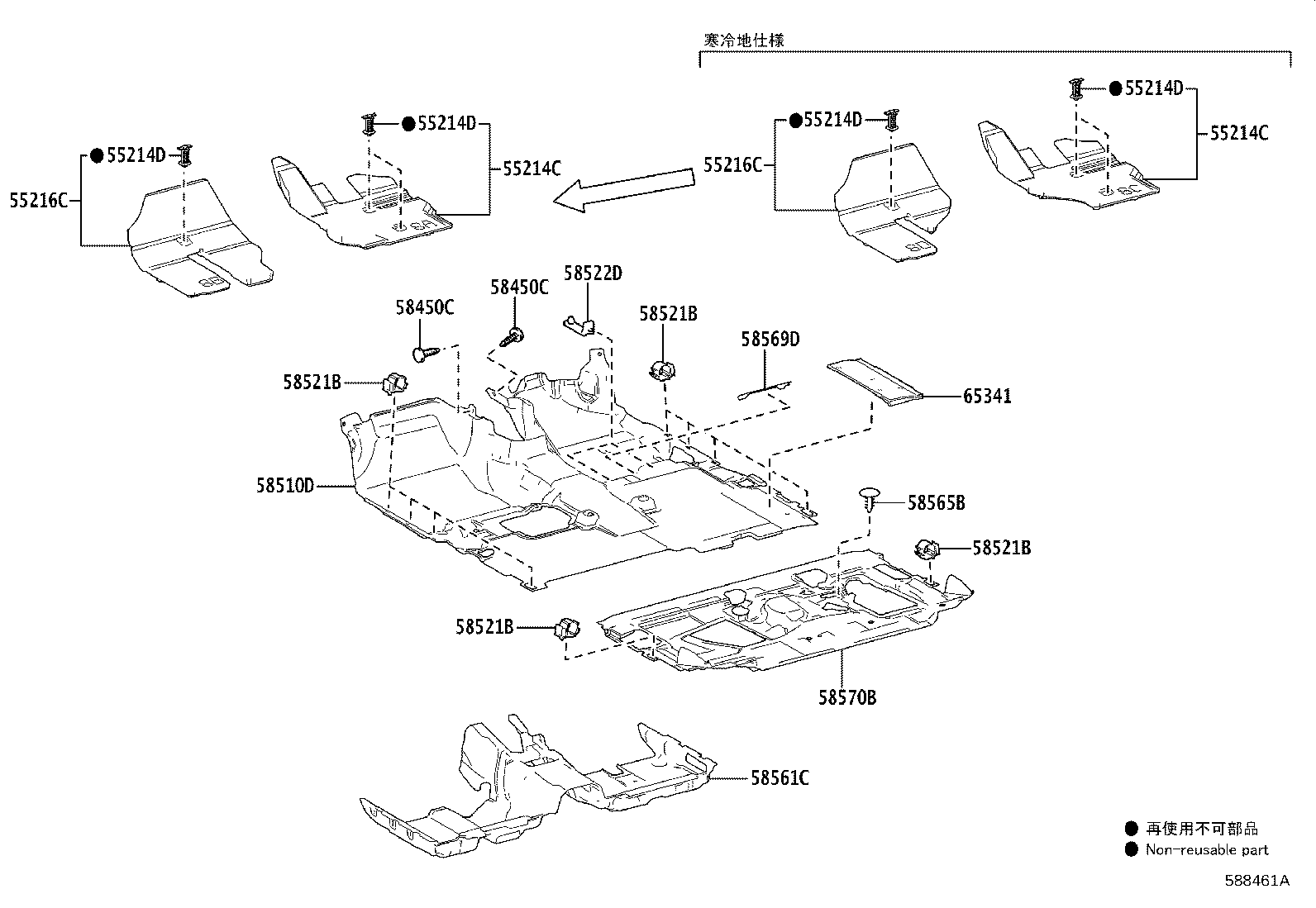

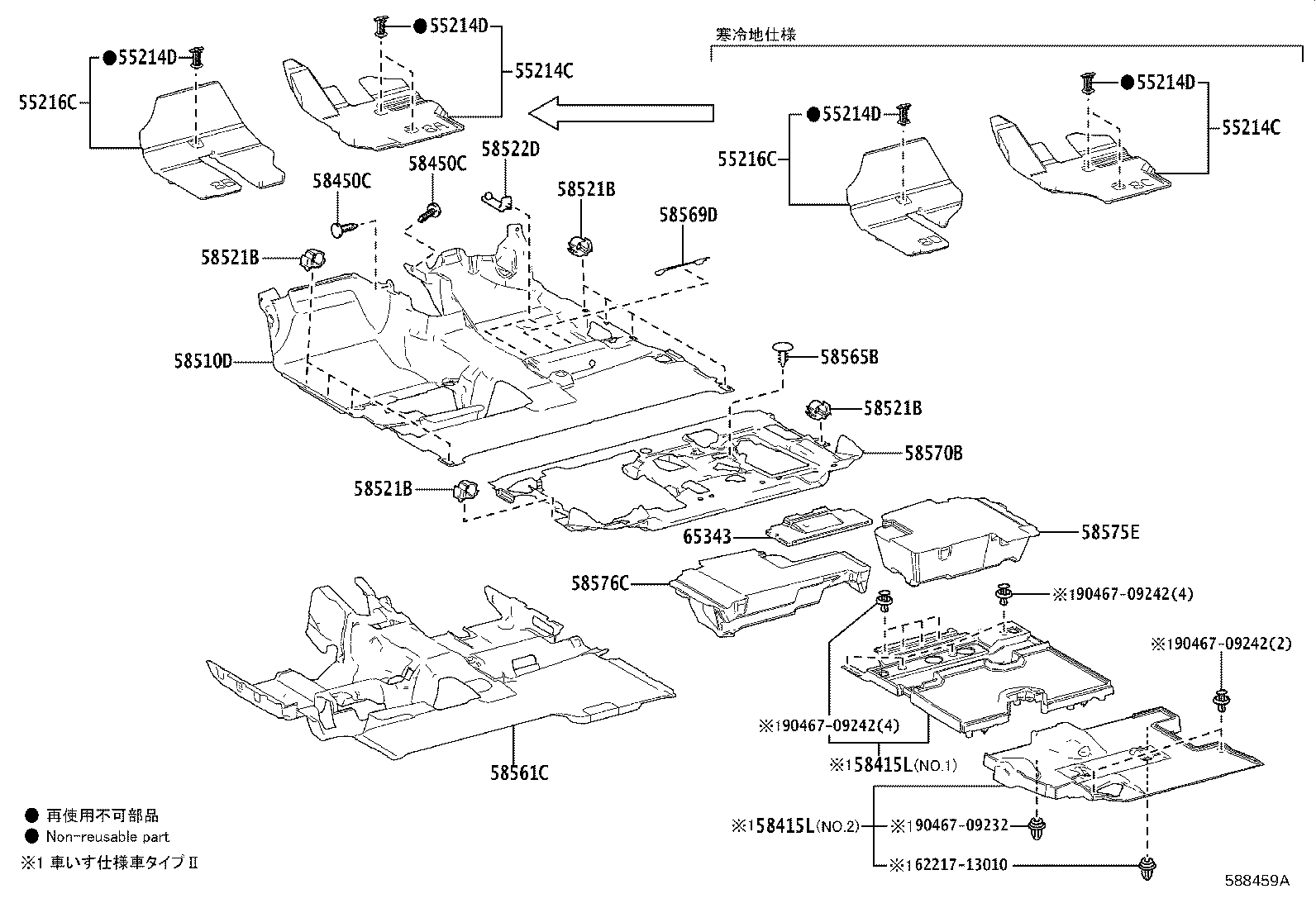

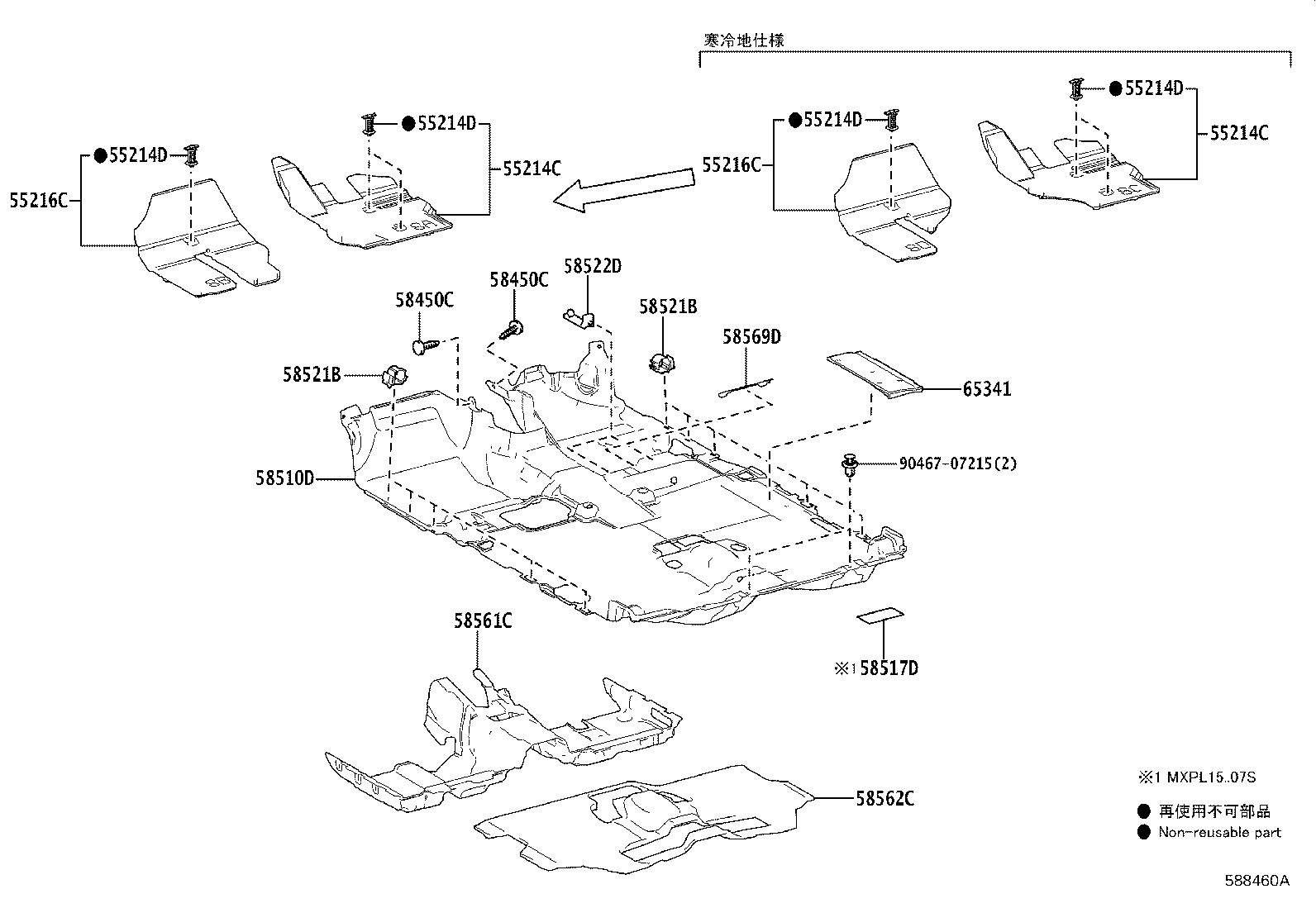

Figure 588458A 588458A 2022-07 → — Figure 588459A 588459A 2022-07 → — Figure 588460A 588460A 2022-07 → — Figure 588461A 588461A 2022-07 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55214D Clip(FOR DASH PANEL INSULATOR PAD)
55216C Pad, Dash Panel Insulator, NO.4
58415L Bracket, Deck Board Support
58450C Clip
58510D Carpet Assy, Floor, Front
58517D Mat, Rear Floor
58521B Hook, Floor Carpet
58522D Hook, Floor Carpet, NO.2
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58565B Clip
58569D Cover, Front Floor Caution Plate
58570B Mat Assy, Rear Floor
58575E Pad, Front Floor, Rear NO.1
58576C Pad, Front Floor, Rear NO.2
65341 Board, Floor, NO.1
65343 Board, Floor, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
