Toyota Sienta
2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan
Supported model
Data version 2022-07

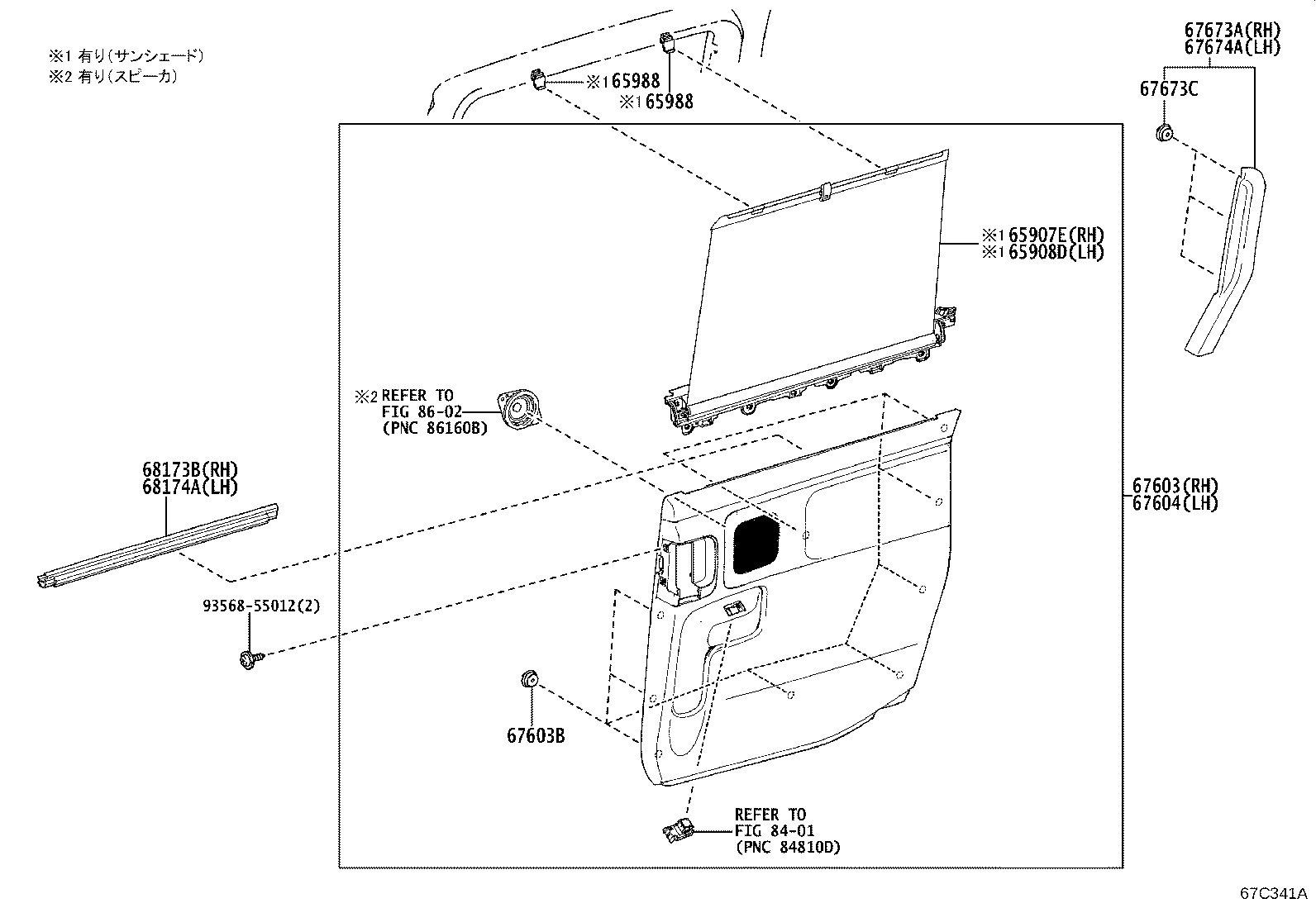

Rear Door Panel & Glass
52 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65988 | Hook, Sunshade |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67407H | Bar Sub-assy, Slide Door Window Division, RH |
| 67408H | Bar Sub-assy, Slide Door Window Division, LH |
| 67525C | Cover, Slide Door Panel, Lower RH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67673C | Clip(FOR REAR DOOR FRAME GARNISH) |
| 67674A | Garnish, Rear Door Frame, LH |
| 67841G | Cover, Slide Door Service Hole, RH |
| 67842G | Cover, Slide Door Service Hole, LH |
| 67843B | Cover, Rear Door Service Hole, NO.2 RH |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67851E | Cover, Slide Door Service Hole, RH |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67852E | Cover, Slide Door Service Hole, LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67857K | Protector, Slide Door Panel |
| 67858A | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67869D | Clip, Door Weatherstrip |
| 67869R | Clip(FOR POWER SLIDE DOOR SENSOR) |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67897H | Cushion, Rear Door |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68141F | Clip, Rear Door Glass Run |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
