Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

158 part groups · 6 illustrations

Illustrations

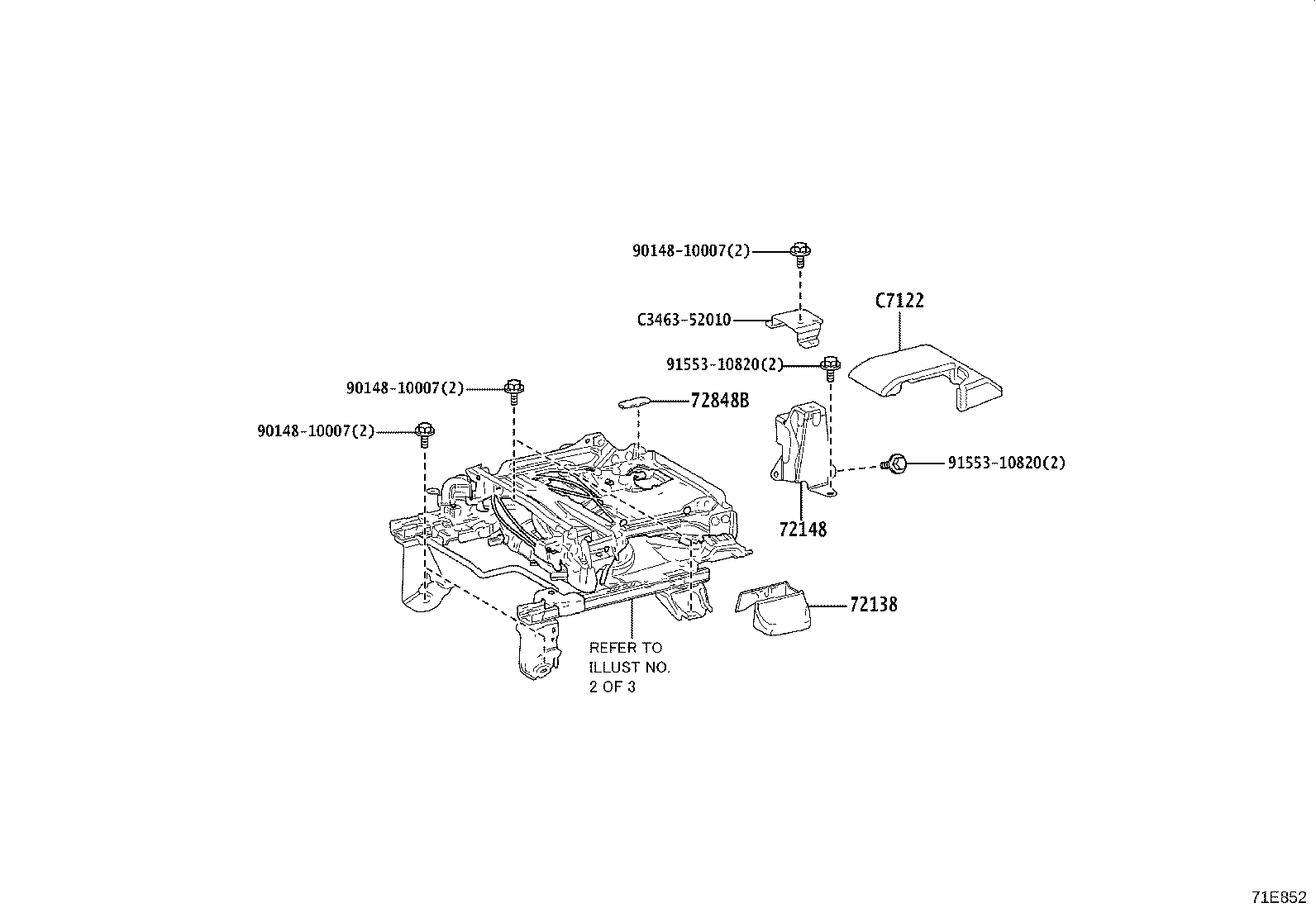

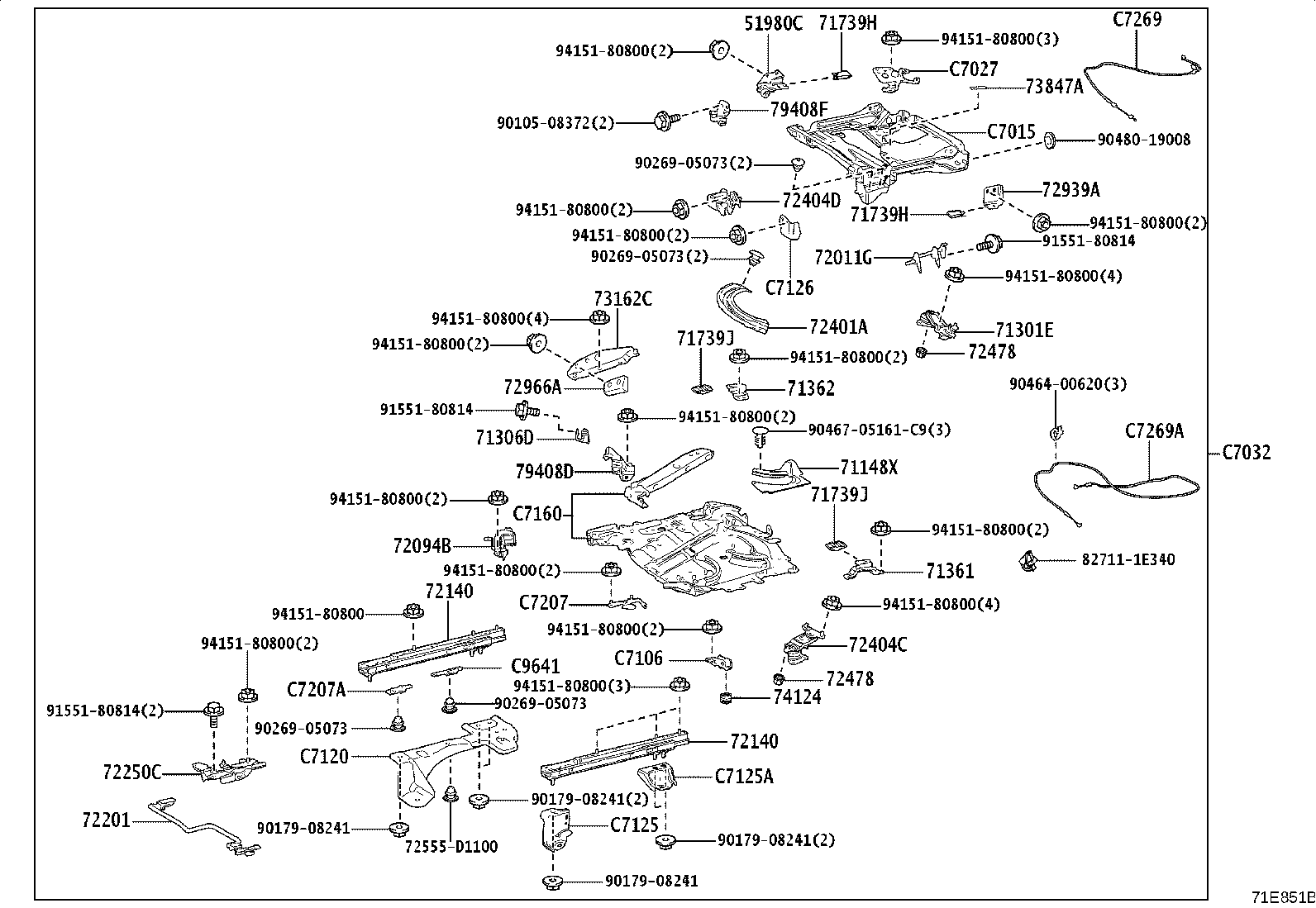

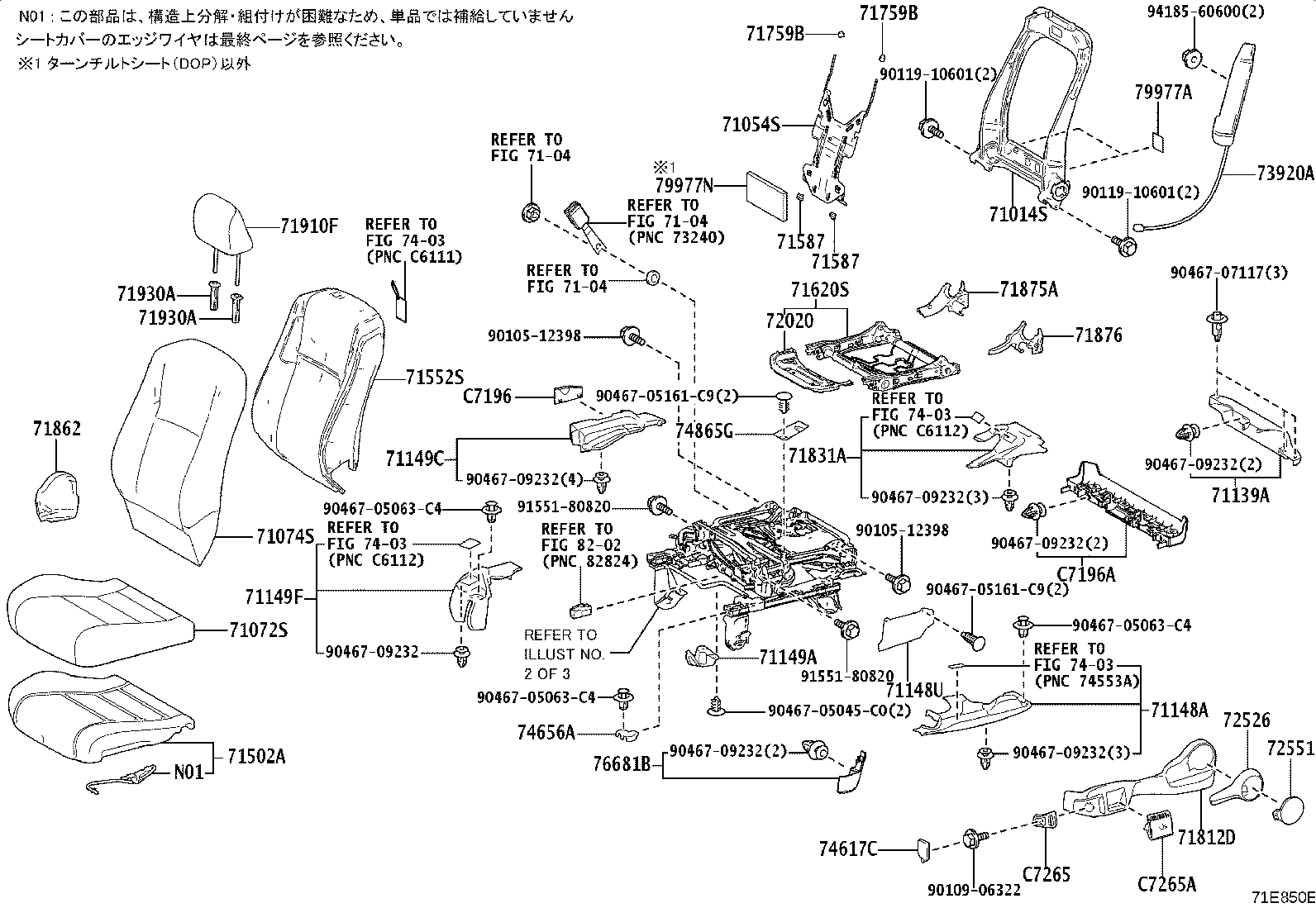

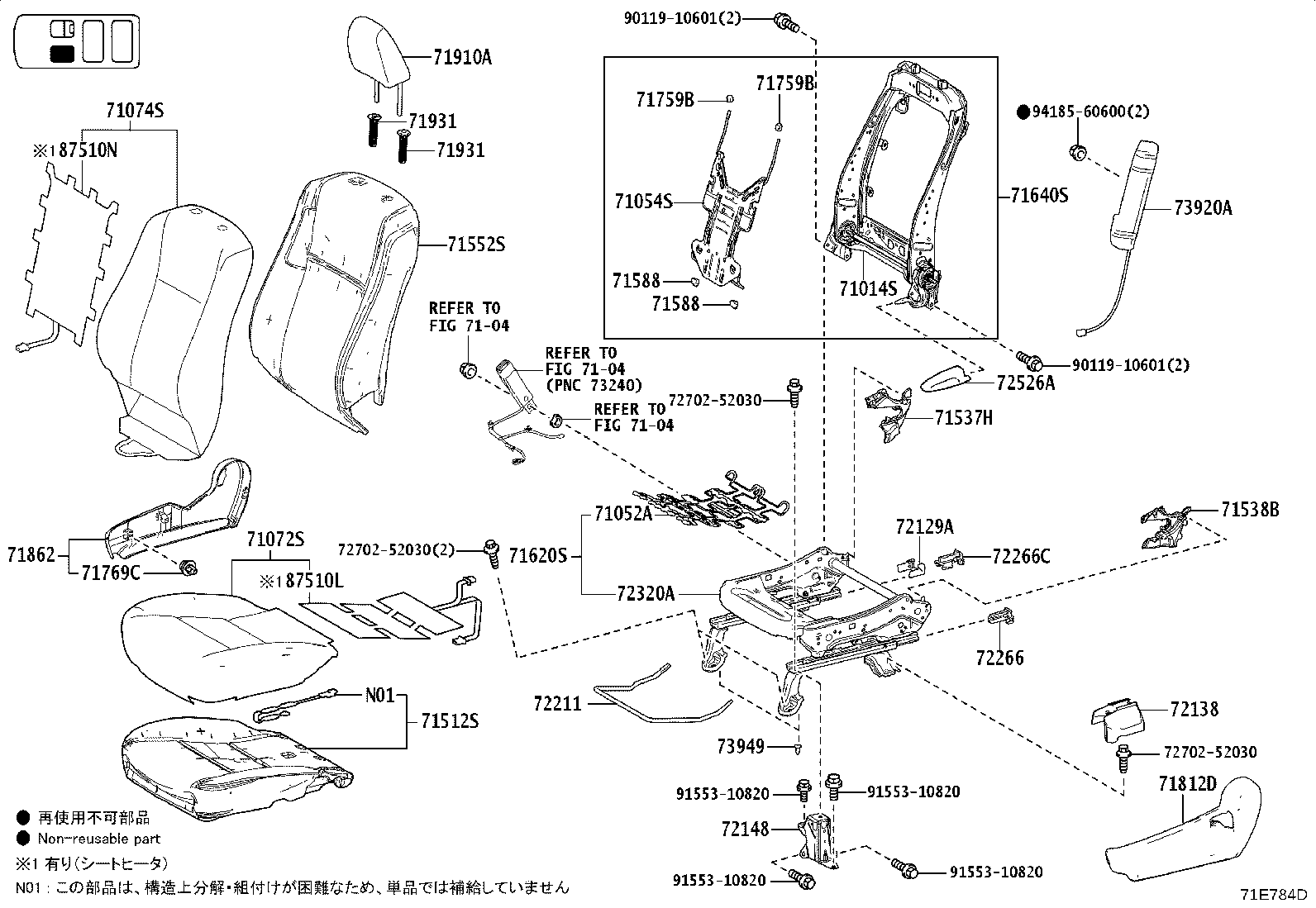

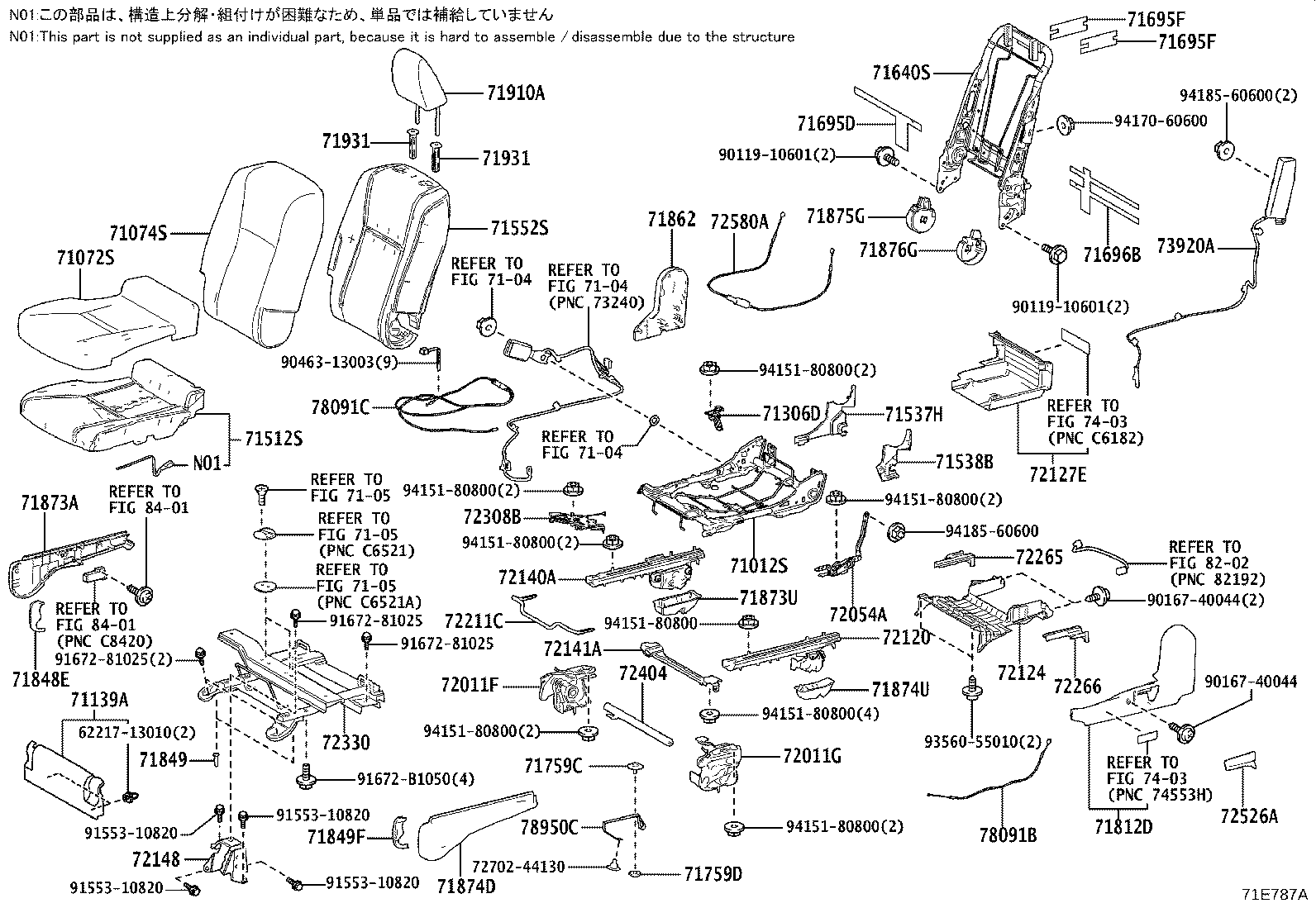

Figure 71E783F 71E783F 2022-07 → — Figure 71E784D 71E784D 2022-07 → — Figure 71E787A 71E787A 2022-07 → — Figure 71E850E 71E850E 2022-07 → — Figure 71E851B 71E851B 2022-07 → — Figure 71E852 71E852 2022-07 → —

Part groups

PNCDescription
51980C Hook Assy, Pintle, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71139A Cover, Front Seat Leg, NO.1
71148A Cover, FR Seat Leg, Outer
71148U Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
71148X Cover, Front Seat Leg, Outer RH
71149A Cover, Front Seat Leg, LH
71149C Cover, Front Seat Leg, LH (FOR LH SEAT)
71149F Cover, Front Seat Leg, Inner
71301E Link Sub-assy, Rear Seat Cushion, RH
71306D Bracket Sub-assy, Front Seat Set
71361 Bracket, Front Seat Set, NO.1
71362 Bracket, Front Seat Set, NO.2
71502A Pad Sub-assy, Front Seat Cushion, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647H Protector, Front Seat Cushion Edge
71695D Protector, Seat
71695F Protector, Rear Seat, NO.1
71696B Protector, Rear Seat, NO.2
71739A Bezel, Front Seatback
71739H Cushion, Seat Support, LH NO.1
71739J Cushion, Seat Support, LH NO.2
71759B Hook, Front Seatback
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71769C Clip, Front Seat Cushion Cover
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71831A Cover, Front Seat Hinge
71848E Cap, Seat Adjuster Cover, RH(FOR LH SEAT)
71849 Cap, Seat Adjuster Cover, LH
71849F Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873U Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874C Shield, Front Seat Cushion, Lower
71874D Shield, Rear Seat Cushion, Lower LH
71874U Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71910F Headrest Assy, Front Seat, LH
71930A Support Assy, Front Seat Headrest
71931 Support, Front Seat Headrest
72011F Hinge Sub-assy, Front Seat, RH
72011G Hinge Sub-assy, Front Seat, LH
72020 Adjuster Assy, Front Seat, LH
72054A Lever Sub-assy, Reclining Remote Control, LH
72094B Lock Sub-assy, Front Seat Turn
72120 Track Assy, Front Seat, Outer LH
72124 Cover, Seat Track Bracket, Outer Front LH
72127E Cover, Seat Track Bracket, Inner Front
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72140 Track Assy, LH Seat, Inner
72140A Track Assy, Front Seat,Inner LH
72141A Bracket, Seat Track, Lower FR
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72148 Bracket, Front Inner Seat Track, Lower Rear LH
72201 Handle Sub-assy, Seat Track
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72250C Lock Assy, Front Seat
72265 Cover, Seat Track Upper Rail, RH
72265E Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72266C Cover, Seat Track Upper Rail, LH
72308B Cam Sub-assy, Reclining Adjuster
72310B Adjuster Assy, Front Seat Vertical, RH
72320A Adjuster Assy, Front Seat Vertical, LH
72330 Stand Assy,Seat
72401A Guide Sub-assy, Front Seat Track Roller
72404 Link Sub-assy, Vertical Seat
72404C Link Sub-assy, Front Seat Adjuster, LH NO.1
72404D Link Sub-assy, Front Seat Adjuster, RH NO.2
72478 Bush, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72551 Cover, Reclining Hinge, NO.1
72580A Cable Assy, Reclining Adjusting, LH
72810A Armrest Assy, Seat, RH
72848B Cap, Seat Armrest, NO.1
72849 Cap, Seat Armrest, NO.2
72939A Hook, Seat Turn Lock, LH
72966A Bracket, Front Seat Turn Lock
72993 Cover, Front Seatback
73162C Bracket, Belt Anchor Bar, Rear LH
73847A Cushion, Seat Suspension Stopper, RH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
73949 Cap
74124 Spring, Front Ash Receptacle Retainer, RH
74617C Plug, Assist Grip
74656A Cover, Hand Rail Bar, NO.1
74865G Cover, Center Protector, LH
76681B Cover, Outside Moulding End, NO.1 LH
78091B Cable Sub-assy, Fold Seat Lock Control
78091C Cable Sub-assy, Fold Seat Lock Control
78950C Band Assy, Fold Seat Stopper
79408D Hook Sub-assy, NO.4 Seat, Inner RH
79408F Hook Sub-assy, NO.4 Seat, Inner LH
79977A Felt, Seatback
79977N Felt, Seatback
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
C7015 Panel Sub-assy, Turn Table
C7027 Lock Sub-assy, Welcab Seat Turn
C7032 Swivel Sub-assy, Front Seat, LH
C7106 Roller Sub-assy, Slide Table, RH
C7120 Leg, Welcab Seat, NO.1
C7122 Guard, Welcab Seat Leg
C7125 Bracket, Welcab Seat Leg, RH NO.1
C7125A Bracket, Welcab Seat Leg, RH NO.2
C7126 Bracket, Welcab Seat Leg, LH NO.1
C7160 Panel Assy, Slide Table
C7196 Cover, Turn Table, NO.1
C7196A Cover, Turn Table, NO.2
C7207 Bracket Sub-assy, Interlock, Lower RH NO.1
C7207A Bracket Sub-assy, Interlock, Lower LH NO.1
C7265 Handle, Seat Turn Lock, RH
C7265A Handle, Seat Turn Lock, LH
C7269 Cable, Seat Turn Lock Release
C7269A Cable, Seat Turn Lock Release, NO.1
C9641 Bracket, Power Lift Motor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
