Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

27 part groups · 7 illustrations

Illustrations

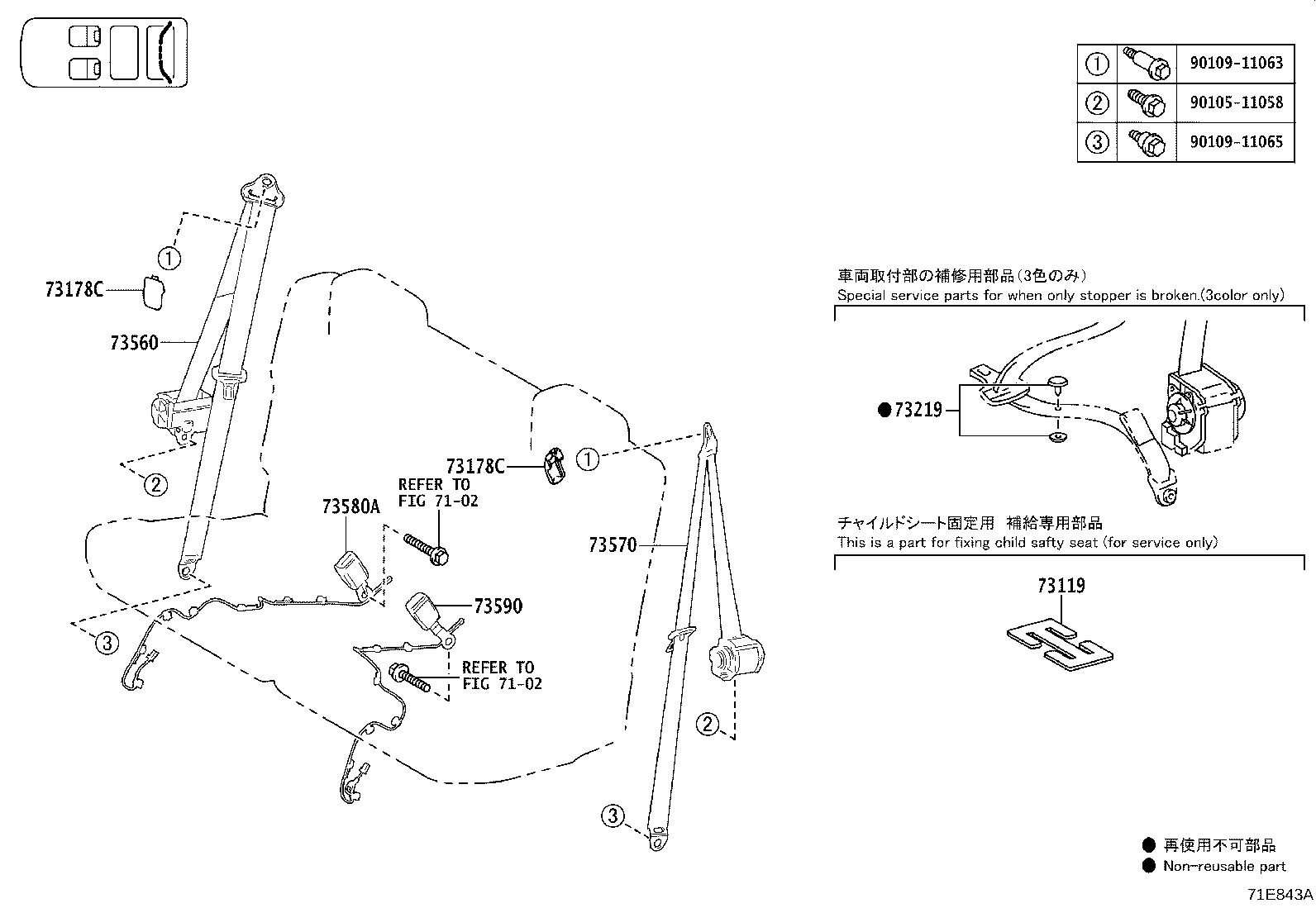

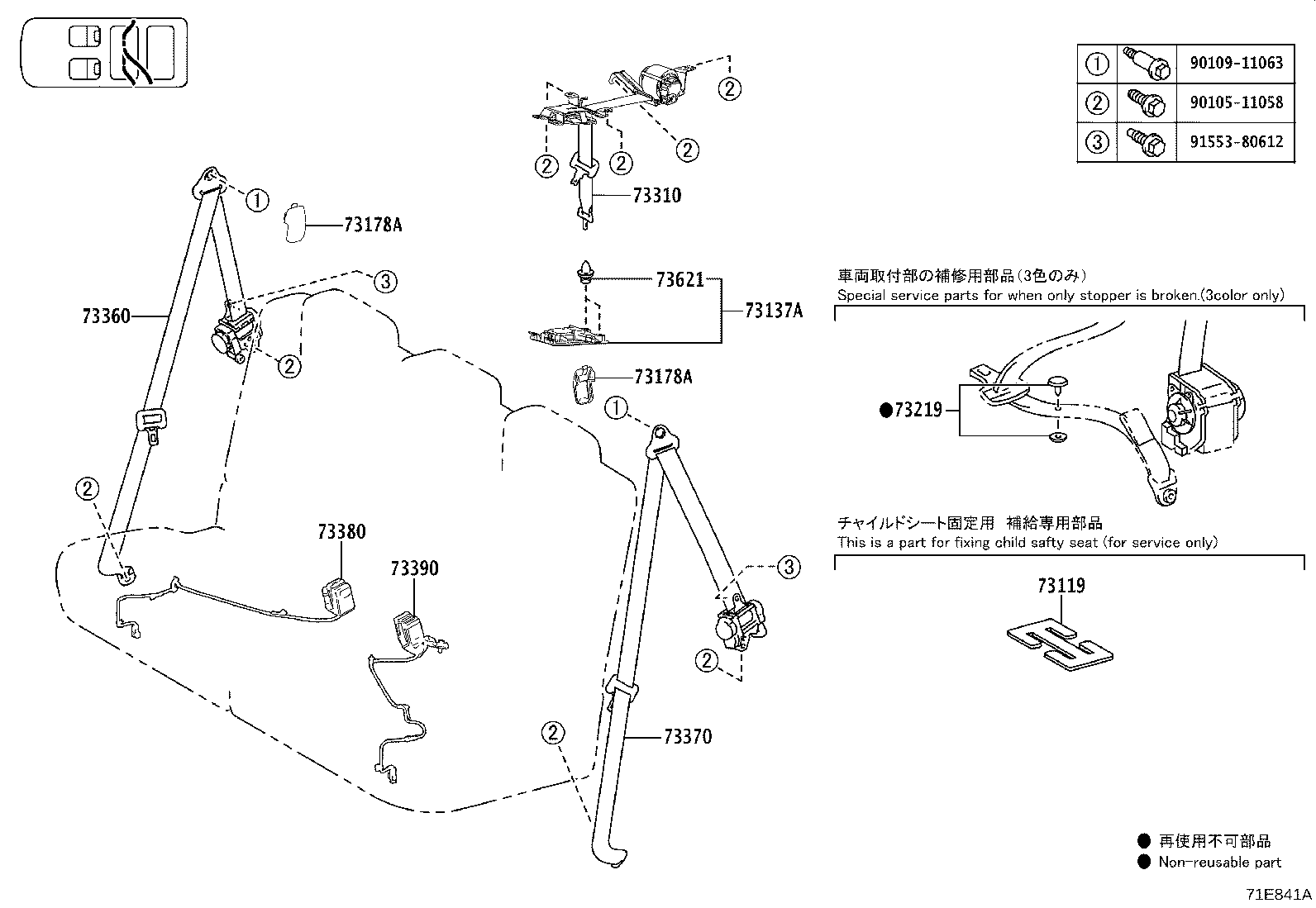

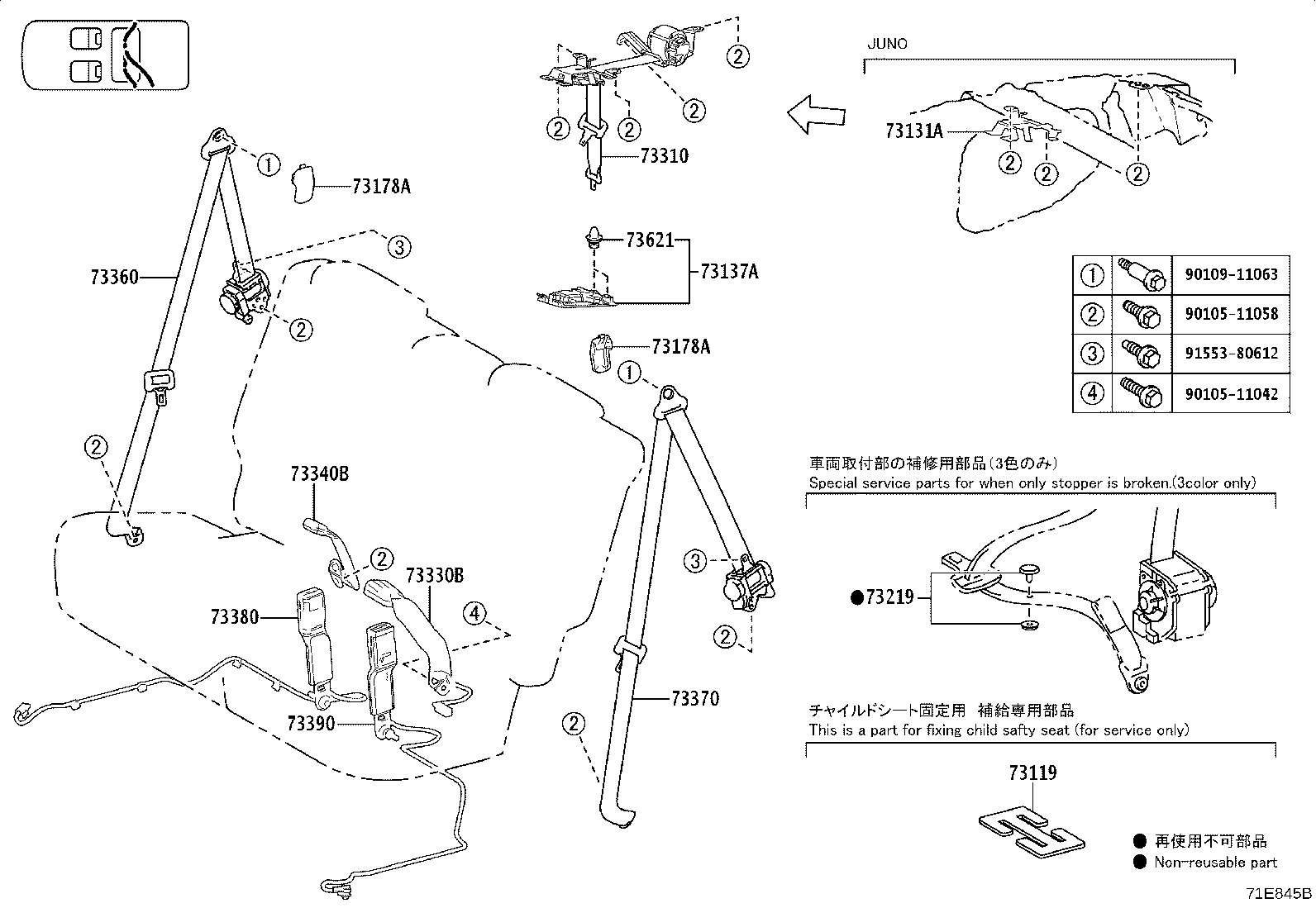

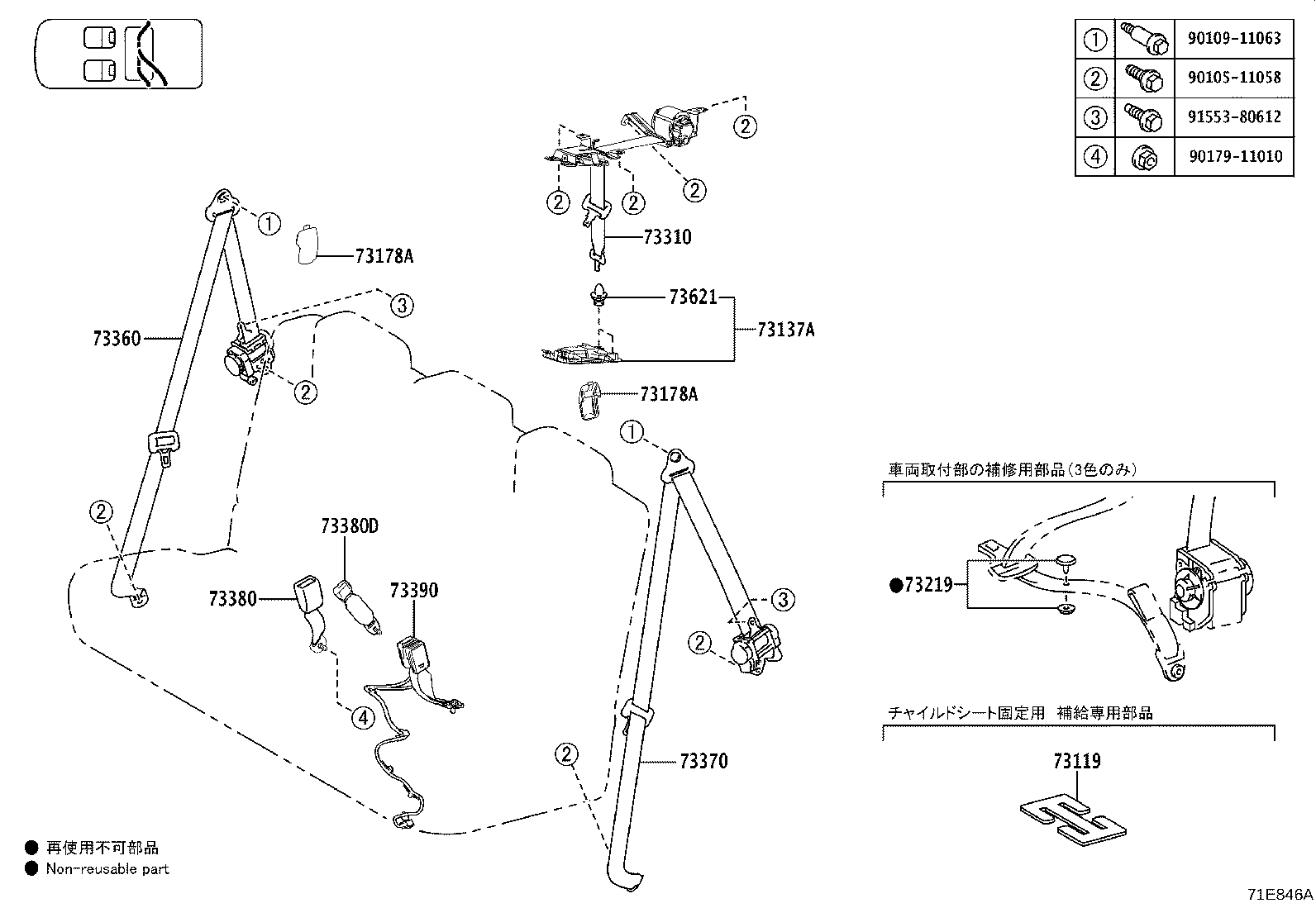

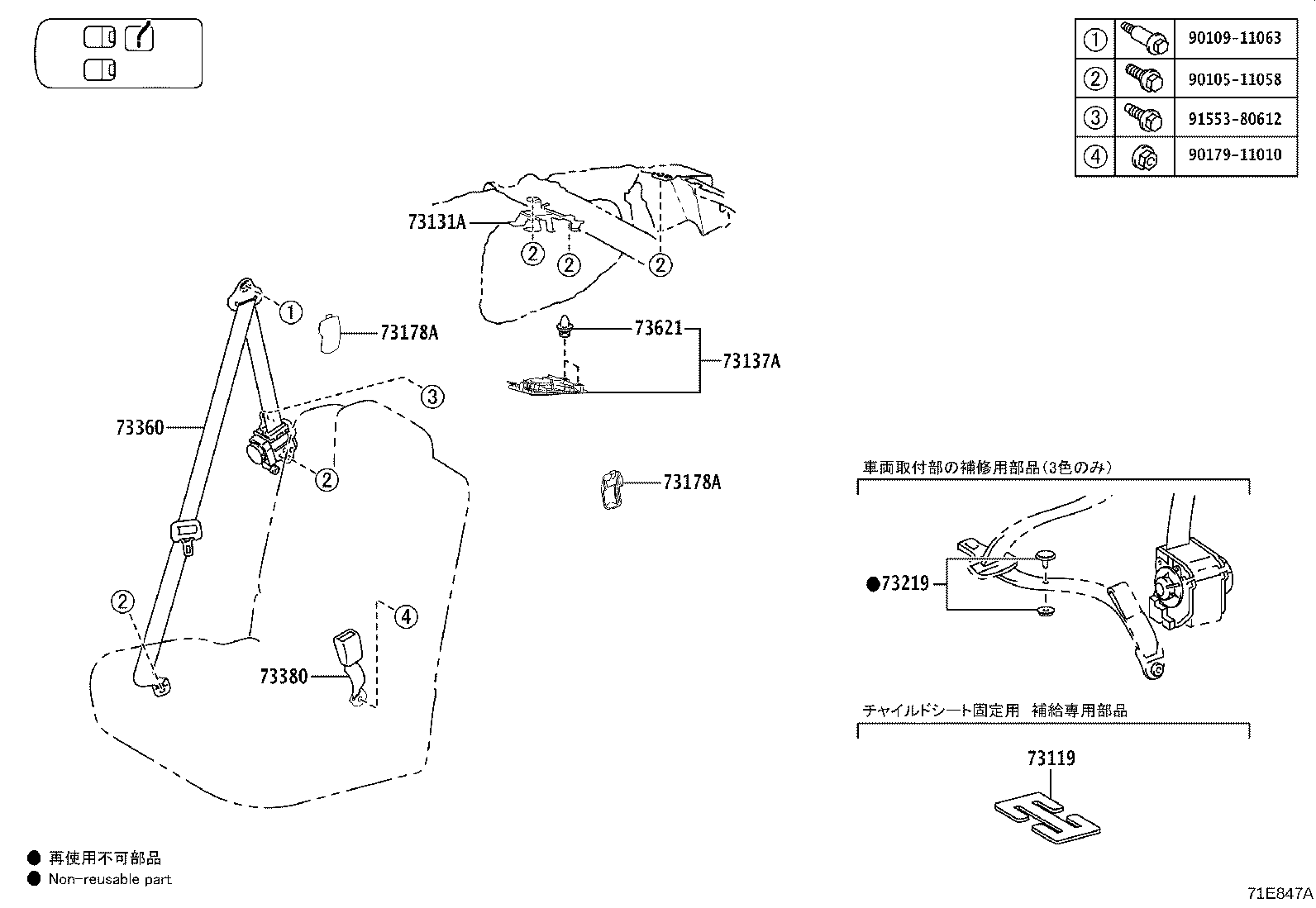

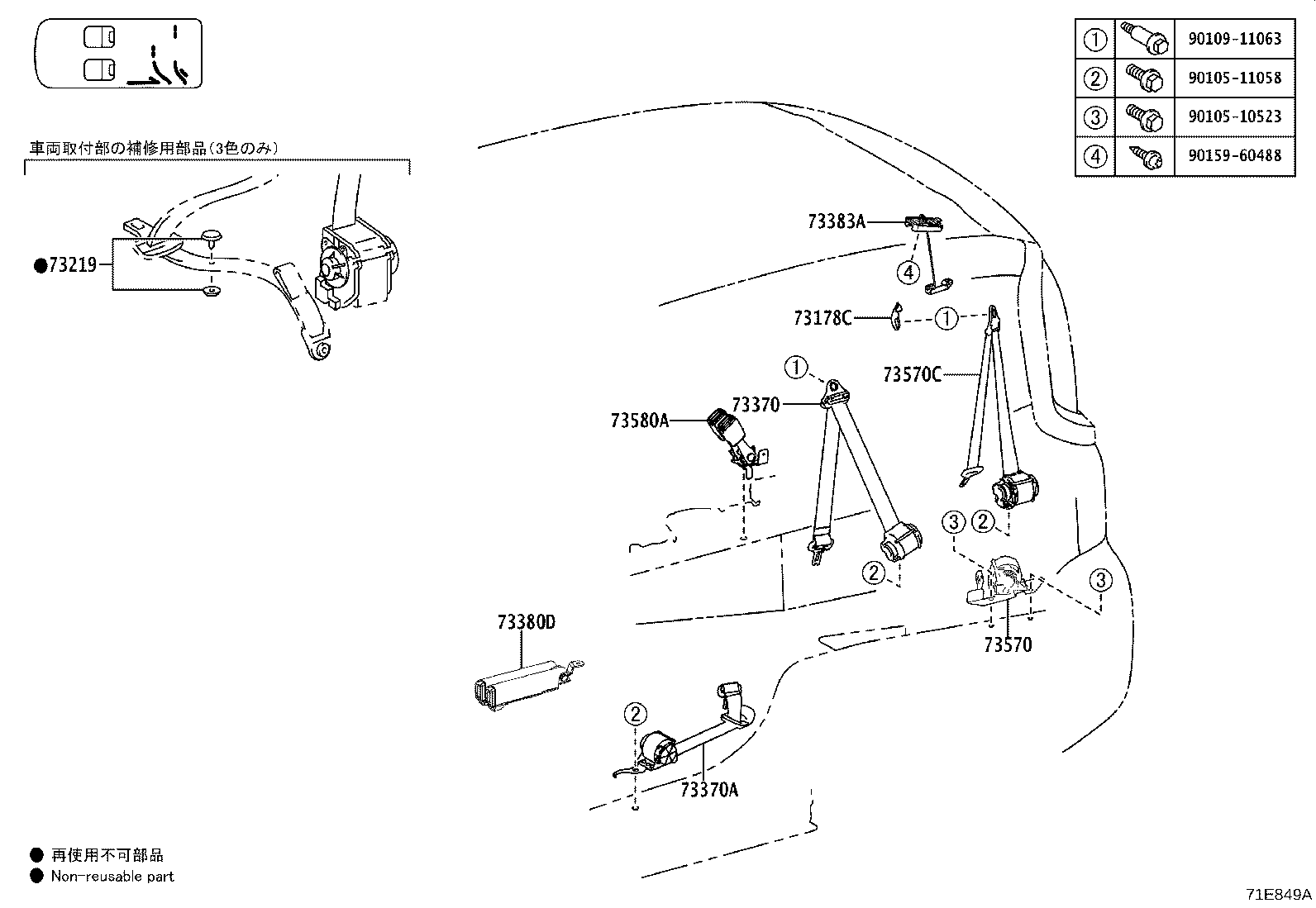

Figure 71E838A 71E838A 2022-07 → — Figure 71E845B 71E845B 2022-07 → — Figure 71E841A 71E841A 2022-07 → — Figure 71E843A 71E843A 2022-07 → — Figure 71E846A 71E846A 2022-07 → — Figure 71E847A 71E847A 2022-07 → — Figure 71E849A 71E849A 2022-07 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73131A Bracket, Seat Belt
73137A Cover, Shoulder Belt Anchor, Upr
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73330B Belt Assy, Seat Lap Type, NO.1
73340B Belt Assy, Seat Lap Type, NO.2
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73370A Belt Assy, Wheel Chair Rear Seat, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380D Belt Assy, Rear Seat, Inner
73383A Hook, RR Seat Belt
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73570C Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73621 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
