Toyota Sienta
2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan
Supported model
Data version 2022-07

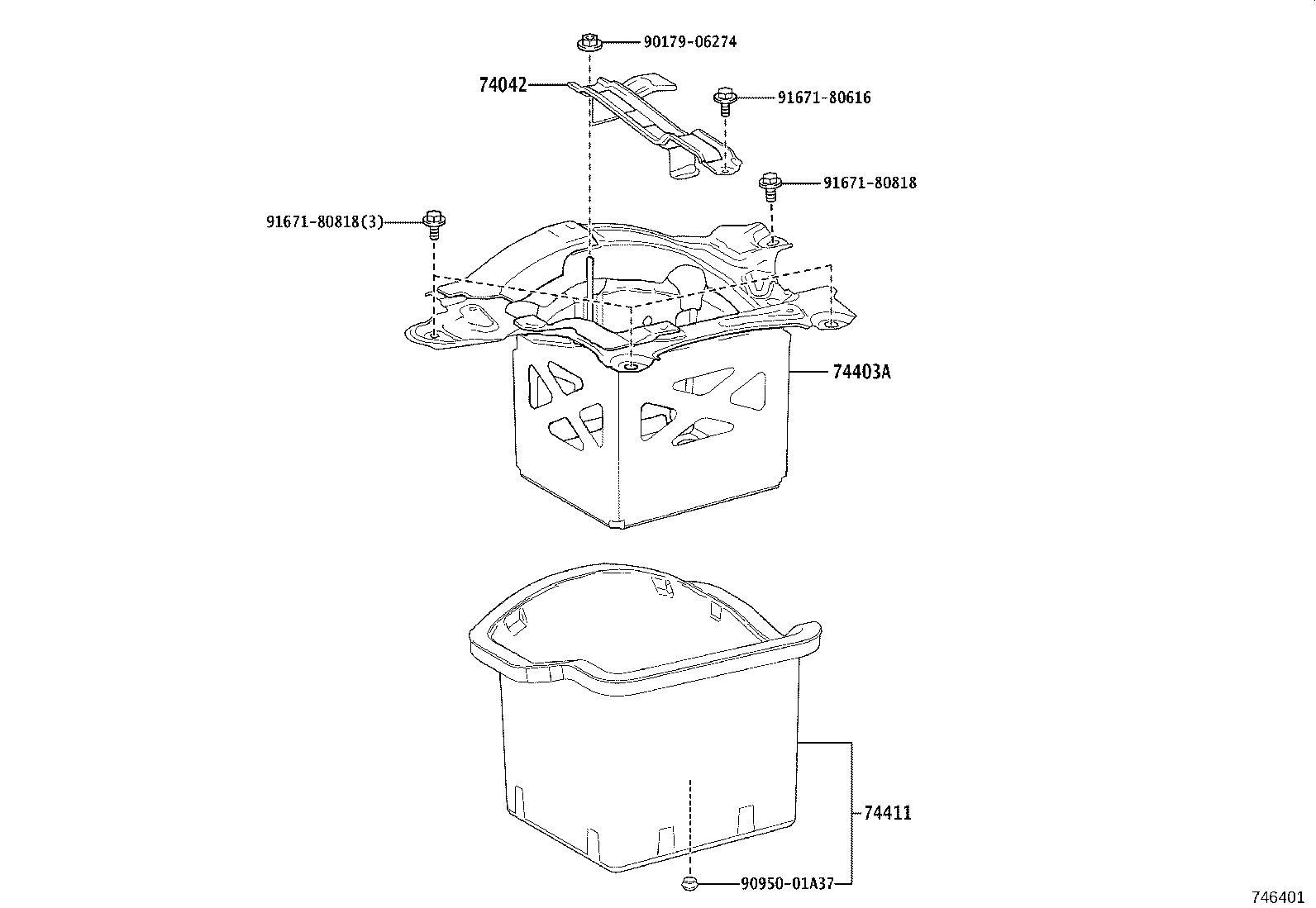

Battery Carrier
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74042 | Bracket Sub-assy, Battery |
| 74403A | Carrier Sub-assy, Battery |
| 74404A | Clamp Sub-assy, Battery |
| 74405 | Clamp Sub-assy, Battery, NO.2 |
| 74411 | Carrier, Battery |
| 74415B | Reinforcement, Battery Bracket, Rear |
| 74451B | Bolt, Battery Clamp |
| 74452A | Bolt, Battery Clamp, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
