Toyota Sienta
2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan
Supported model
Data version 2022-07
Caution Plate (EXTERIOR & INTERIOR)
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293D | Label, Engine Caution |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 288A2 | Label, Battery Location |
| 288A2A | Label, Battery Location, NO.2 |
| 48969 | Label, Jack UP Caution |
| 73794 | Label, Rear Seat Belt Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |

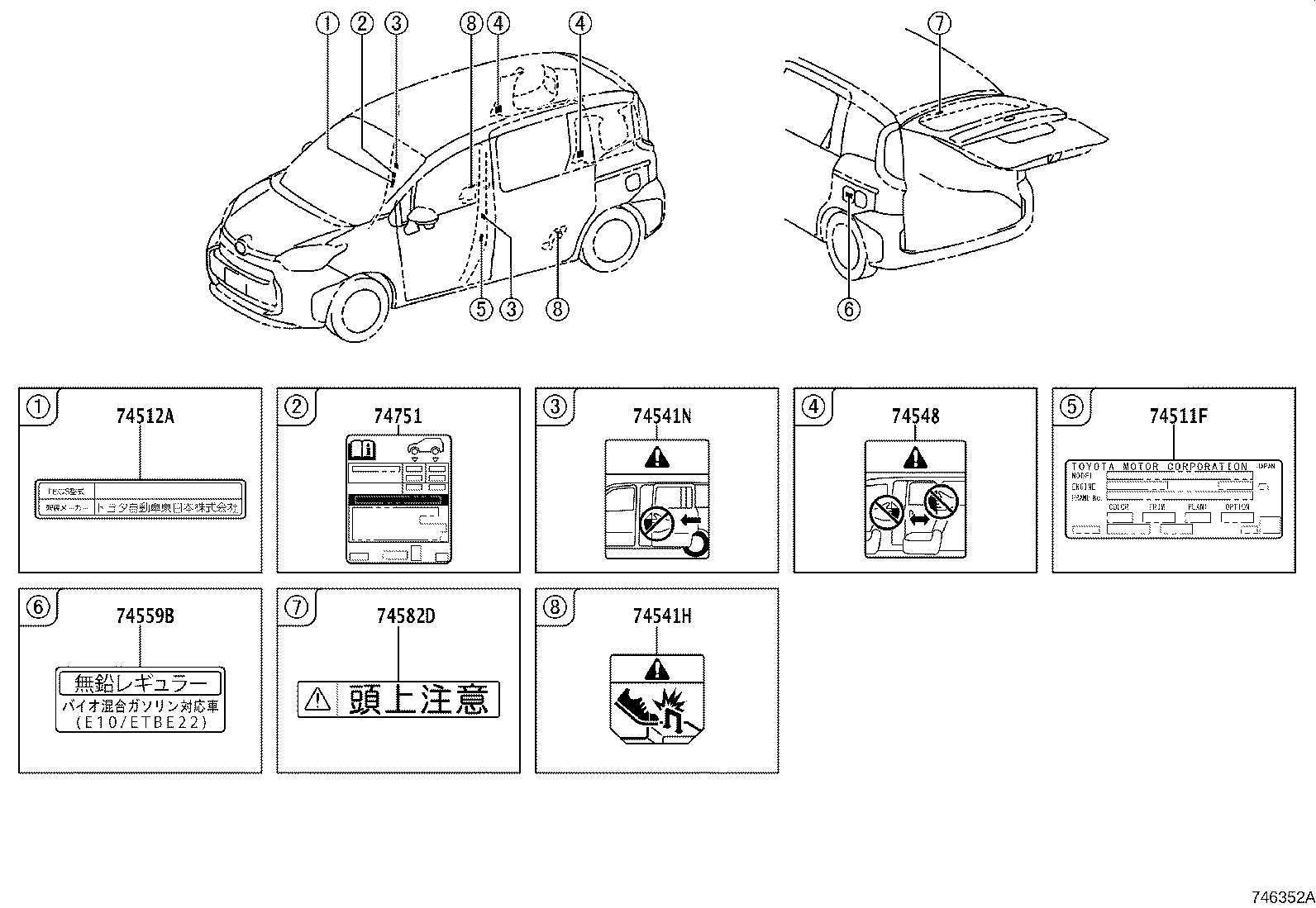

| 74512A | Plate, Identification Number |

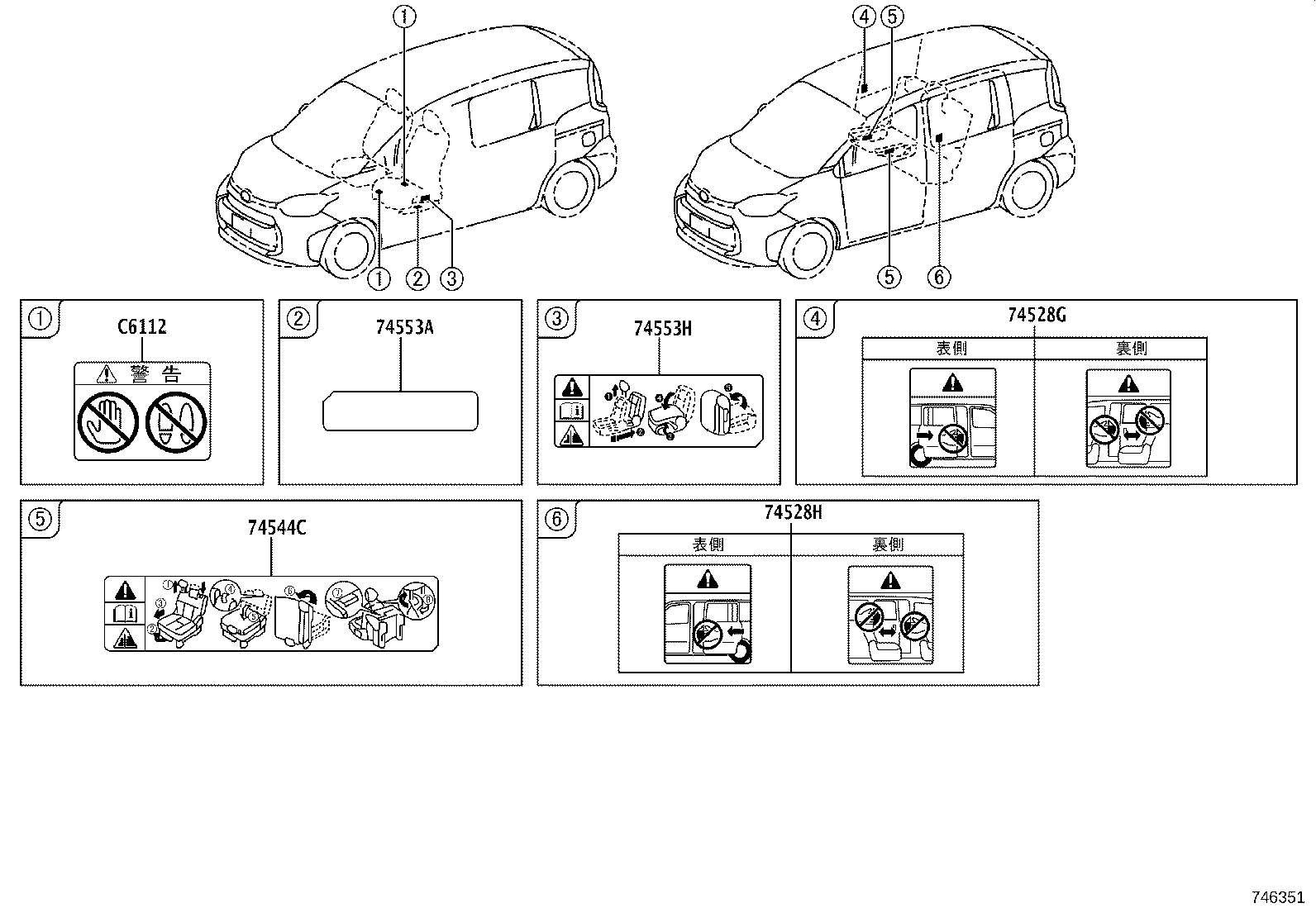

| 74528G | Label, Power Slide Door Caution |
| 74528H | Label, Power Slide Door Caution |
| 74533B | Plate, Shifting Instruction |
| 74541H | Plate, Body Caution |
| 74541L | Label, Bottle Holder Information |
| 74541N | Label, Body Caution |
| 74544C | Plate, Rear Seat Caution |
| 74548 | Plate, Body Caution |
| 74553A | Plate, Front Seat Caution |
| 74553H | Label, Front Seat Information, NO.2 |
| 74559B | Label, Fuel Information |
| 74582D | Label, Safety Caution |
| 74594C | Label, Winch Caution |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |

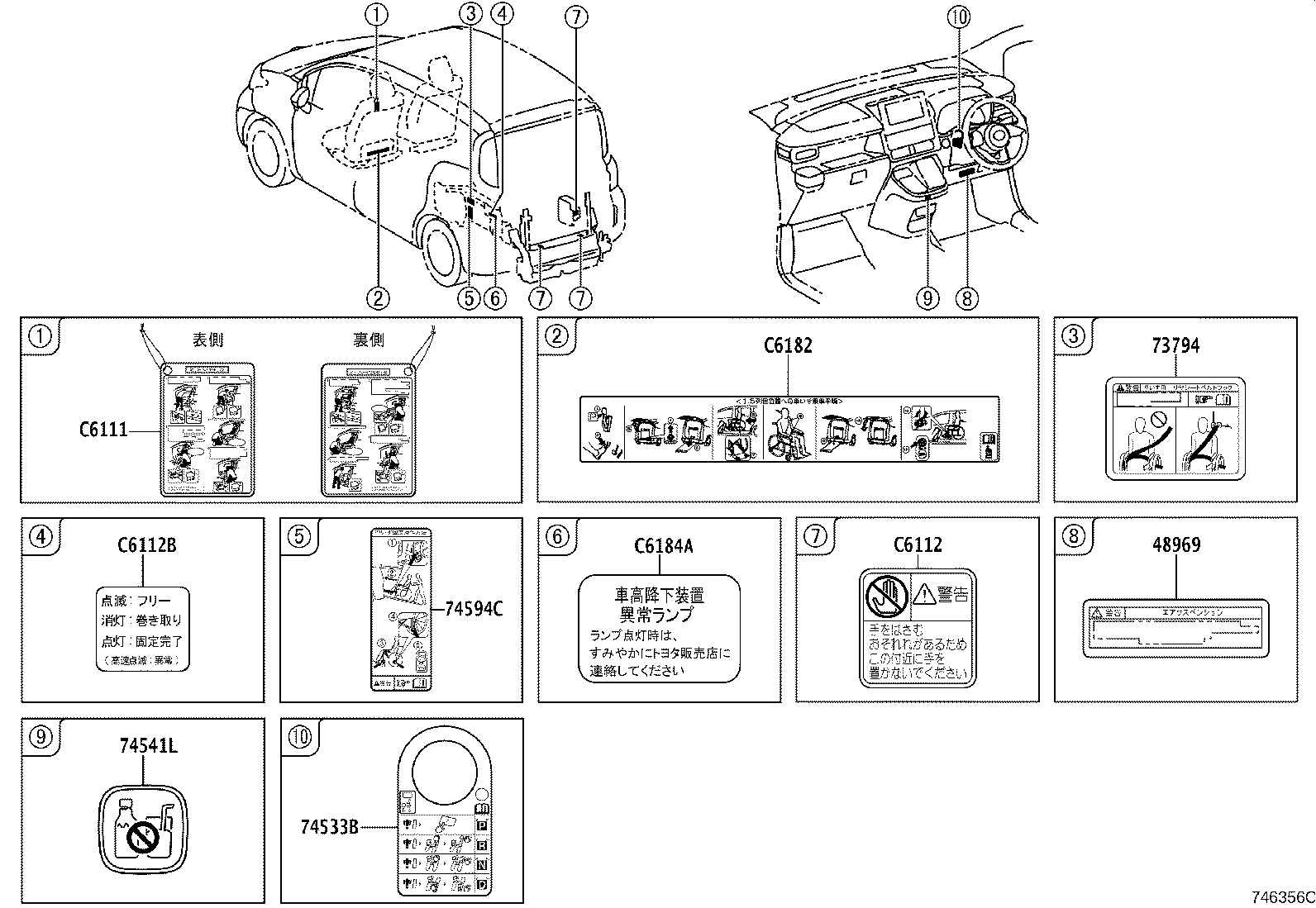

| C6111 | Plate, Safety Caution |
| C6112 | Label, Safety Information, NO.2 |

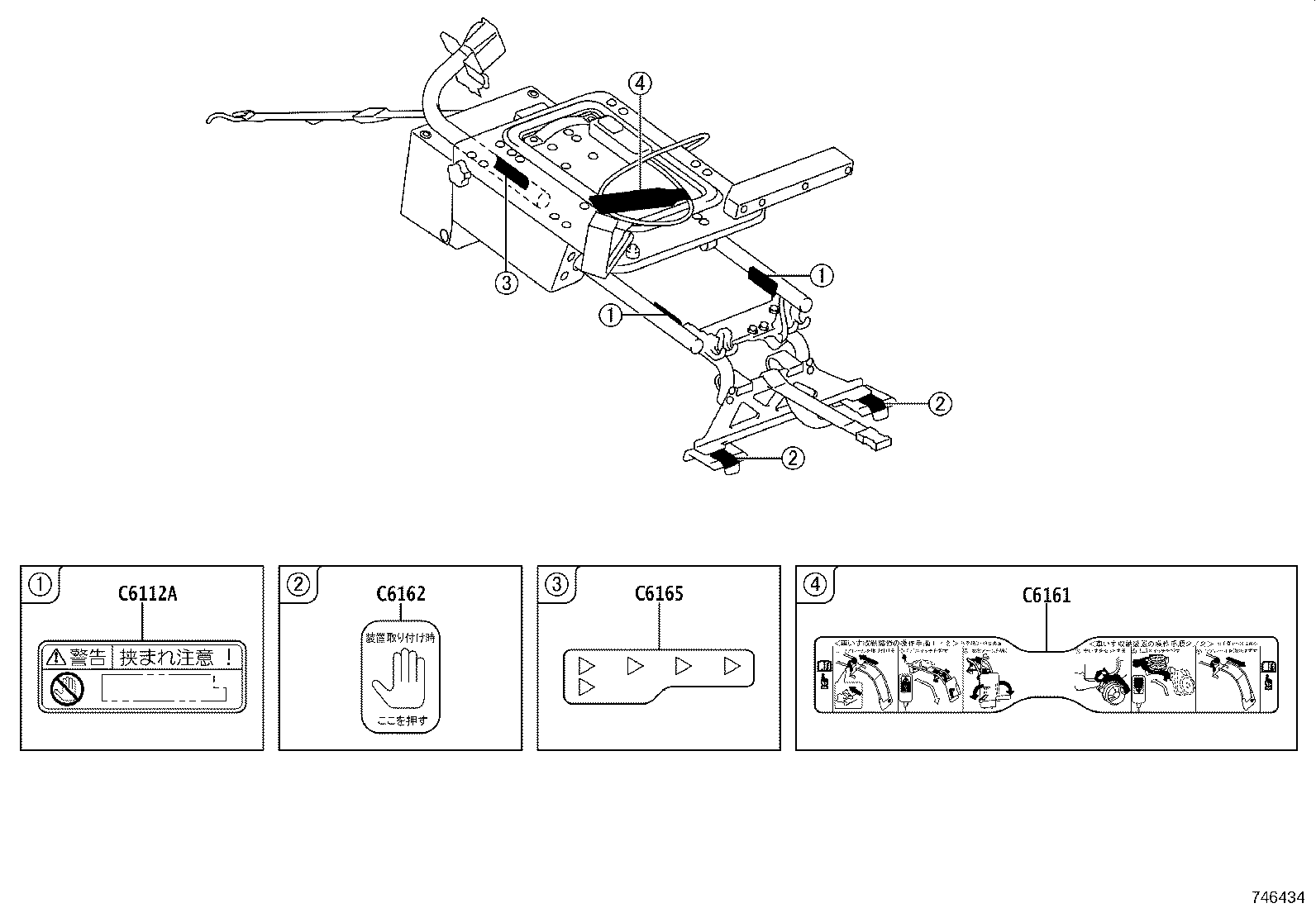

| C6112A | Label, Safety Information |
| C6112B | Label, Safety Information, NO.2 |
| C6161 | Label, Power Lift Caution |
| C6162 | Label, Power Lift Caution, NO.2 |
| C6165 | Label, Power Lift Notice |
| C6182 | Plate, Wheel Chair Holder Caution, NO.1 |
| C6184A | Plate, Wheel Chair Holder Caution, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
