Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 3 illustrations

Illustrations

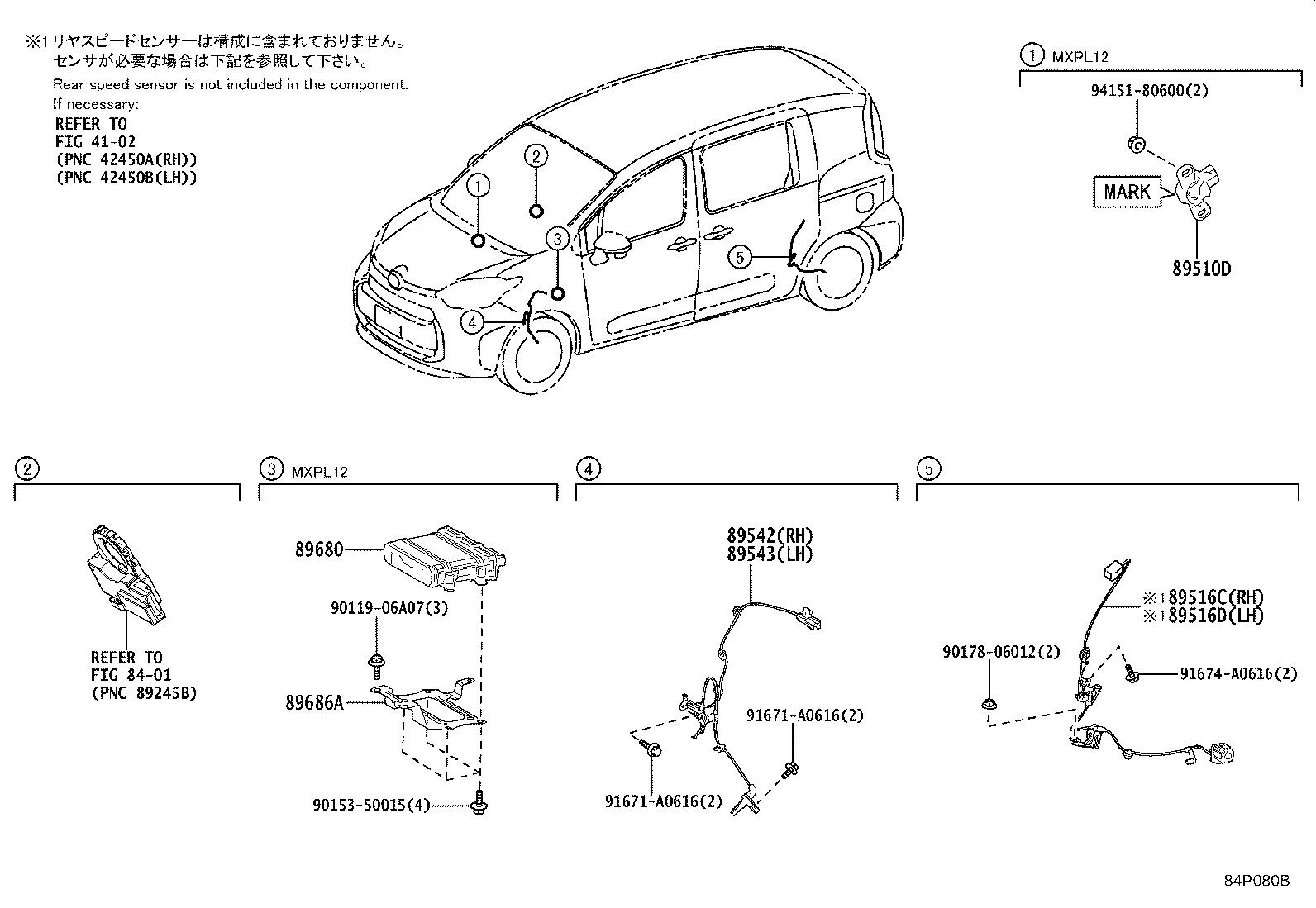

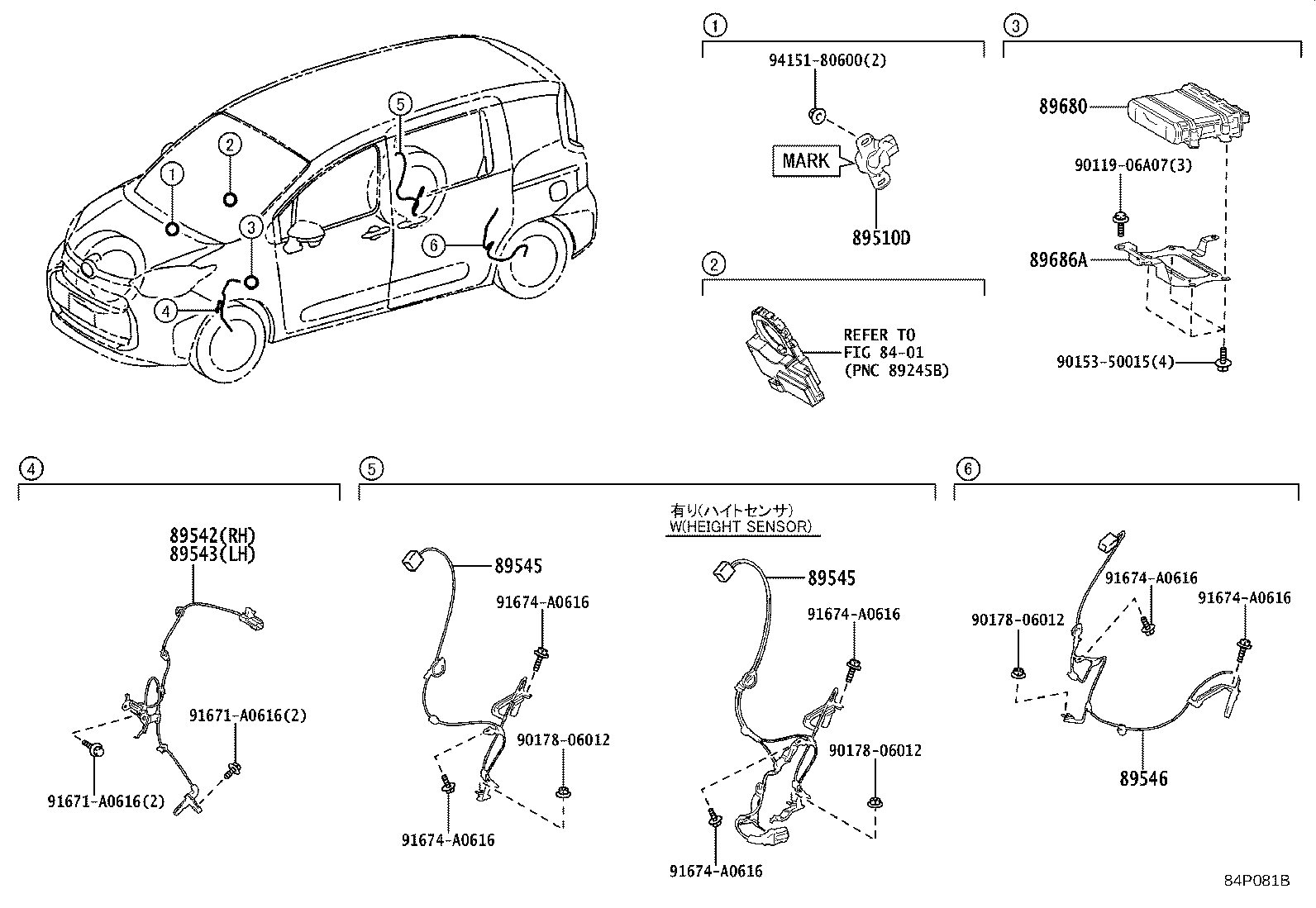

Figure 84P079B 84P079B 2022-07 → — Figure 84P080B 84P080B 2022-07 → — Figure 84P081B 84P081B 2022-07 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89680 Supply Assy, Brake Control Power
89686A Bracket, Brake Control Power Supply, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
