Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

13 part groups · 3 illustrations

Illustrations

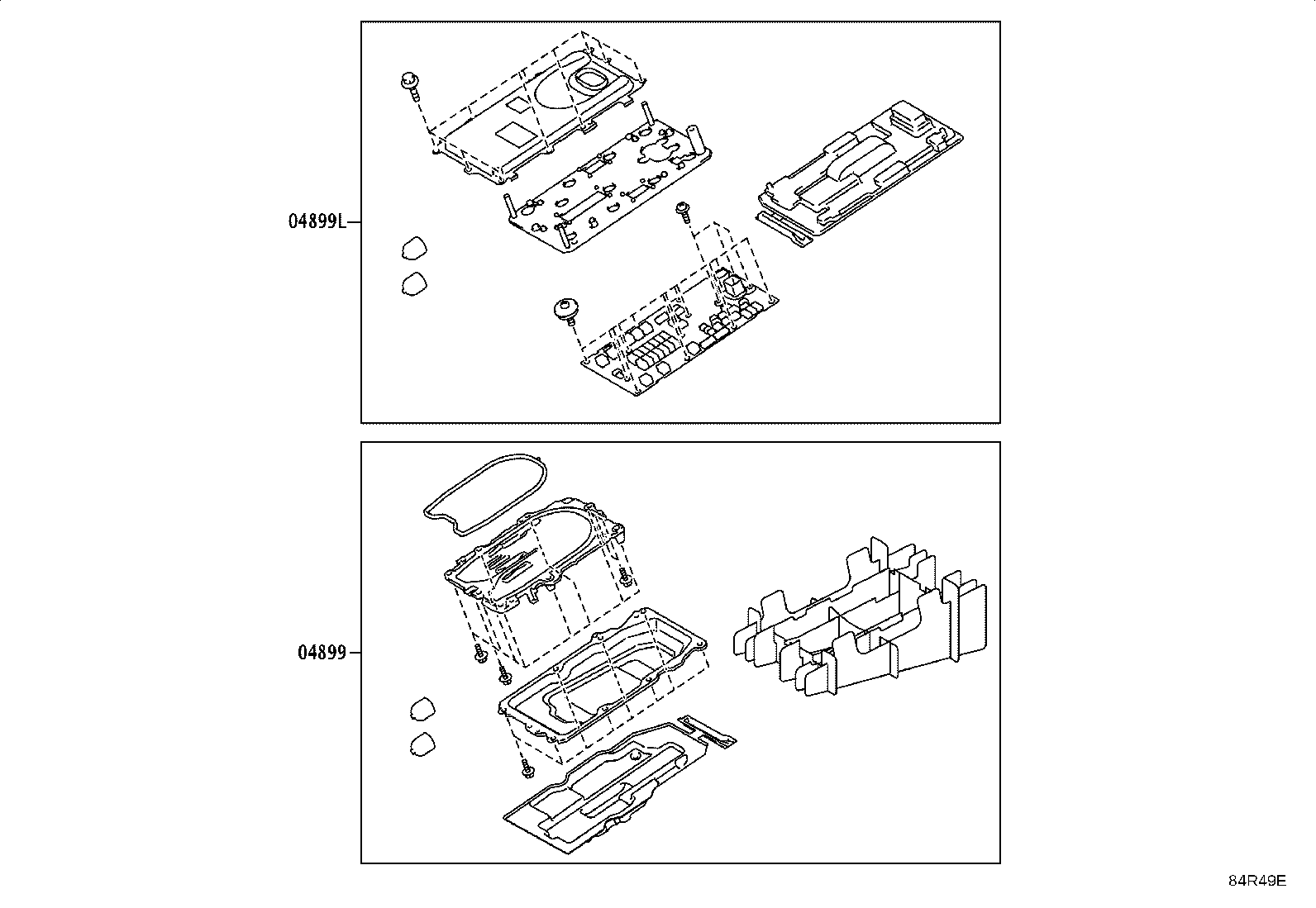

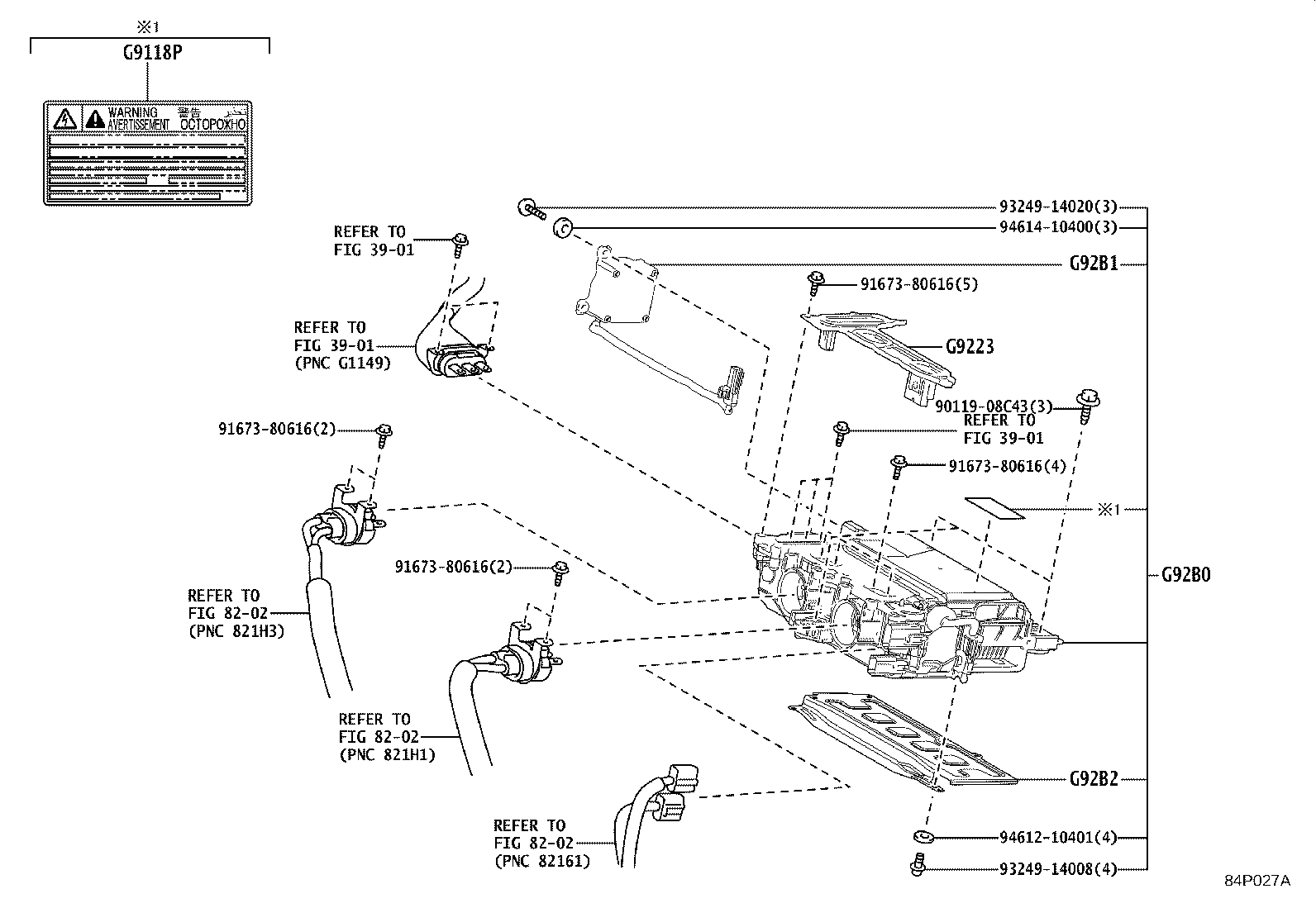

Figure 84P026A 84P026A 2022-07 → — Figure 84P027A 84P027A 2022-07 → — Figure 84R49E 84R49E 2022-07 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9022A Cover Sub-assy, Inverter, Upper
G9118B Label, Power Control Unit Caution
G9118P Label, HV Motor Control Inverter Caution, NO.2
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G921E Protector, Inverter
G9223 Cover, Inverter Terminal
G92A0 Inverter Assy, Hybrid Motor Control
G92B0 Inverter Assy, Hybrid Motor Control, Rear
G92B1 Fan, HV Inverter Cooling
G92B2 Cover, HV Inverter Cooling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
