Toyota Sienta

2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 2 illustrations

Illustrations

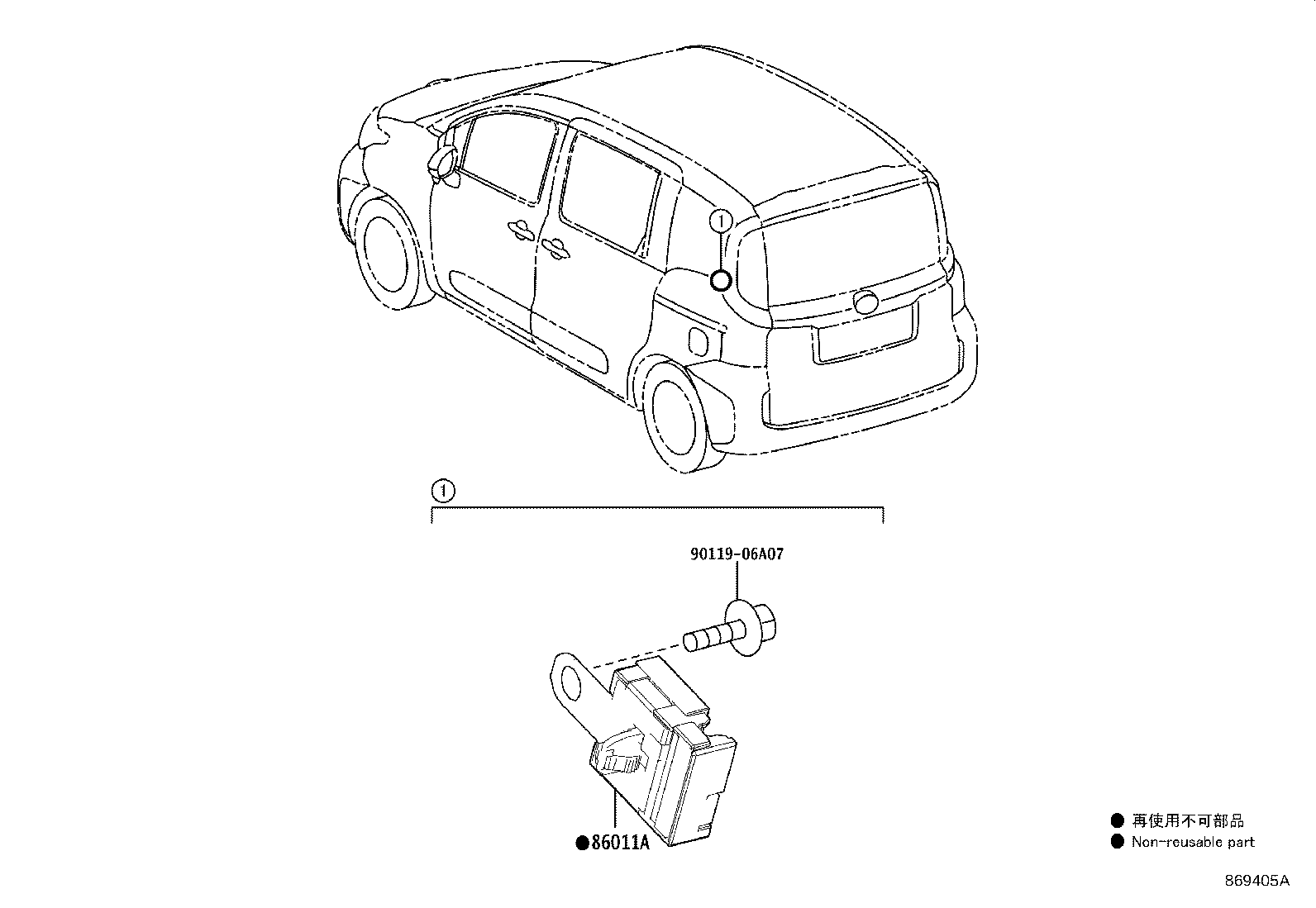

Figure 869403B 869403B 2022-07 → — Figure 869405A 869405A 2022-07 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86190F Adapter Assy, Stereo Jack
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86270A Disc Player Assy
86274 Bracket, Disc Player
86274R Bracket, Disc Player, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
