Toyota Sienta
2022-07 → present · chassis MXPC1#,MXPL1# · catalogue 119140 · Japan
Supported model
Data version 2022-07

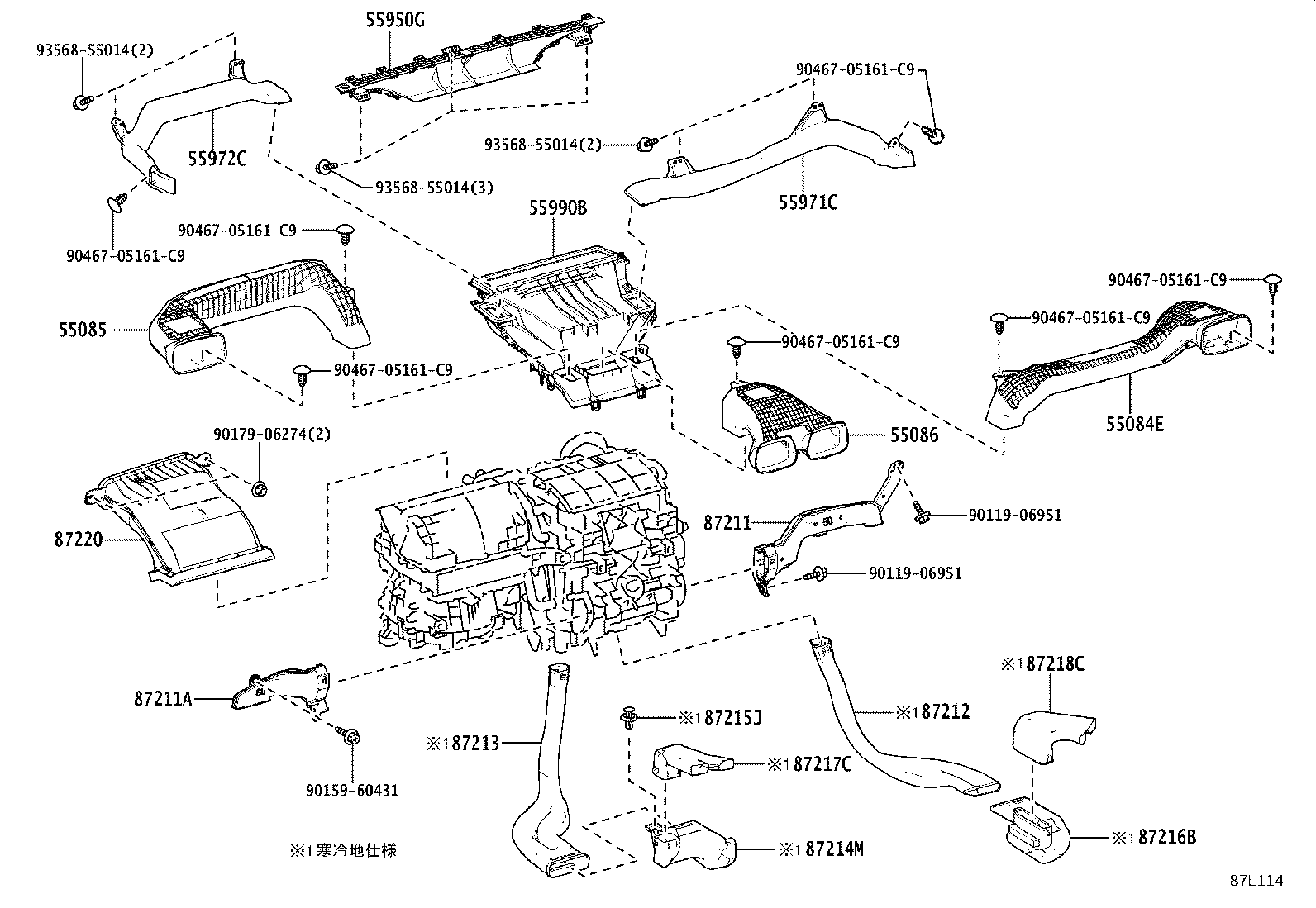

Heating & Air Conditioning - Control & Air Duct
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086 | Duct Sub-assy, Heater TO Register, NO.3 |
| 55900 | Control Assy, Air Conditioner |
| 55901D | Control Sub-assy, Heater, NO.1 |
| 55902E | Control Sub-assy, Heater, NO.2 |
| 55903A | Control Sub-assy, Heater, NO.3 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214M | Duct, Heater TO Foot, NO.3 |
| 87215J | Clip (FOR AIR REAR DUCT) |
| 87216B | Duct, Air, Rear NO.4 |
| 87217C | Duct, Air, Rear NO.5 |
| 87218C | Duct, Air, Rear NO.6 |
| 87220 | Duct Assy, Air |

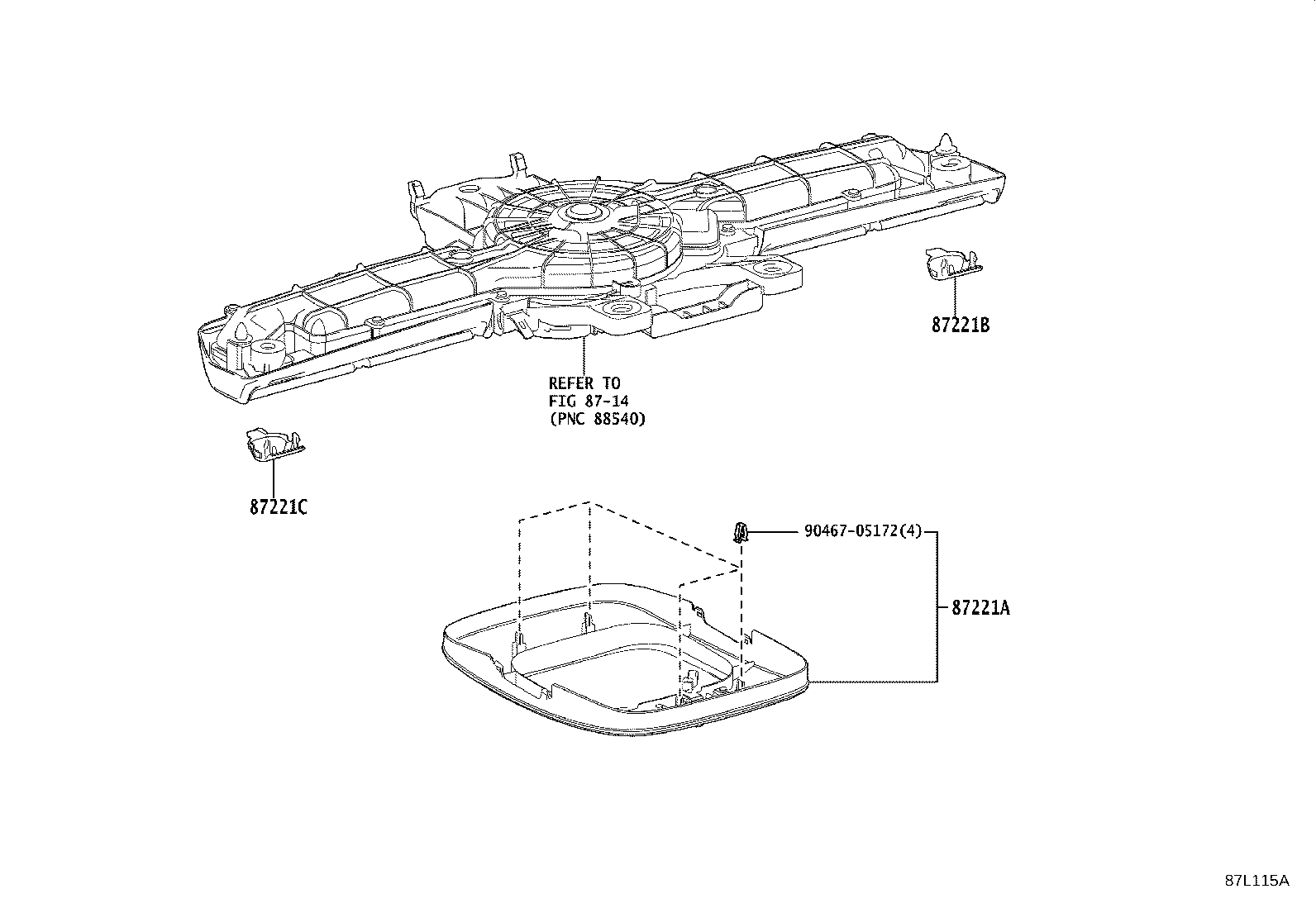

| 87221A | Cover, Air Duct, NO.1 |
| 87221B | Cover, Air Duct, NO.2 |
| 87221C | Cover, Air Duct, NO.3 |

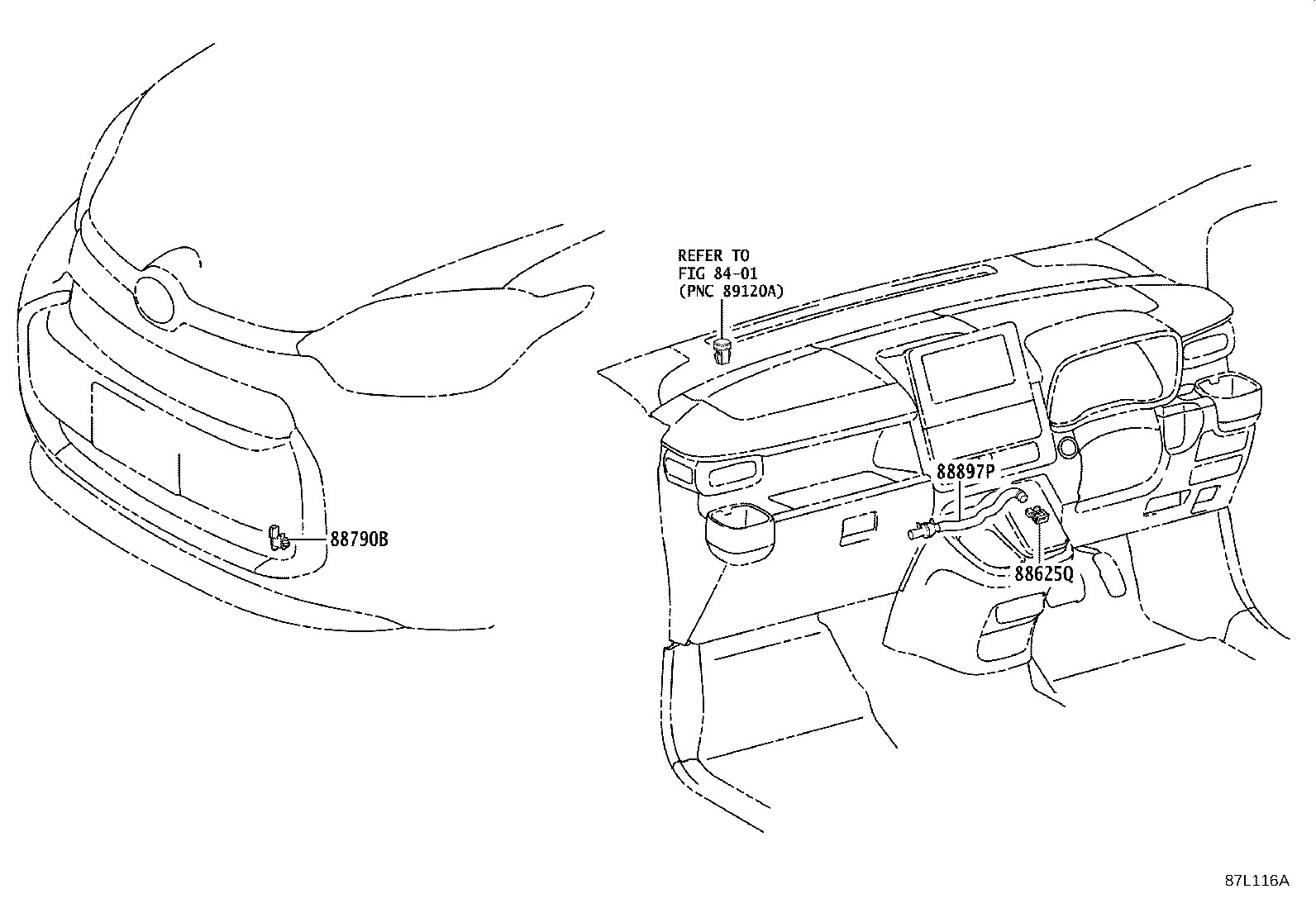

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
