Toyota Yaris GR

2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

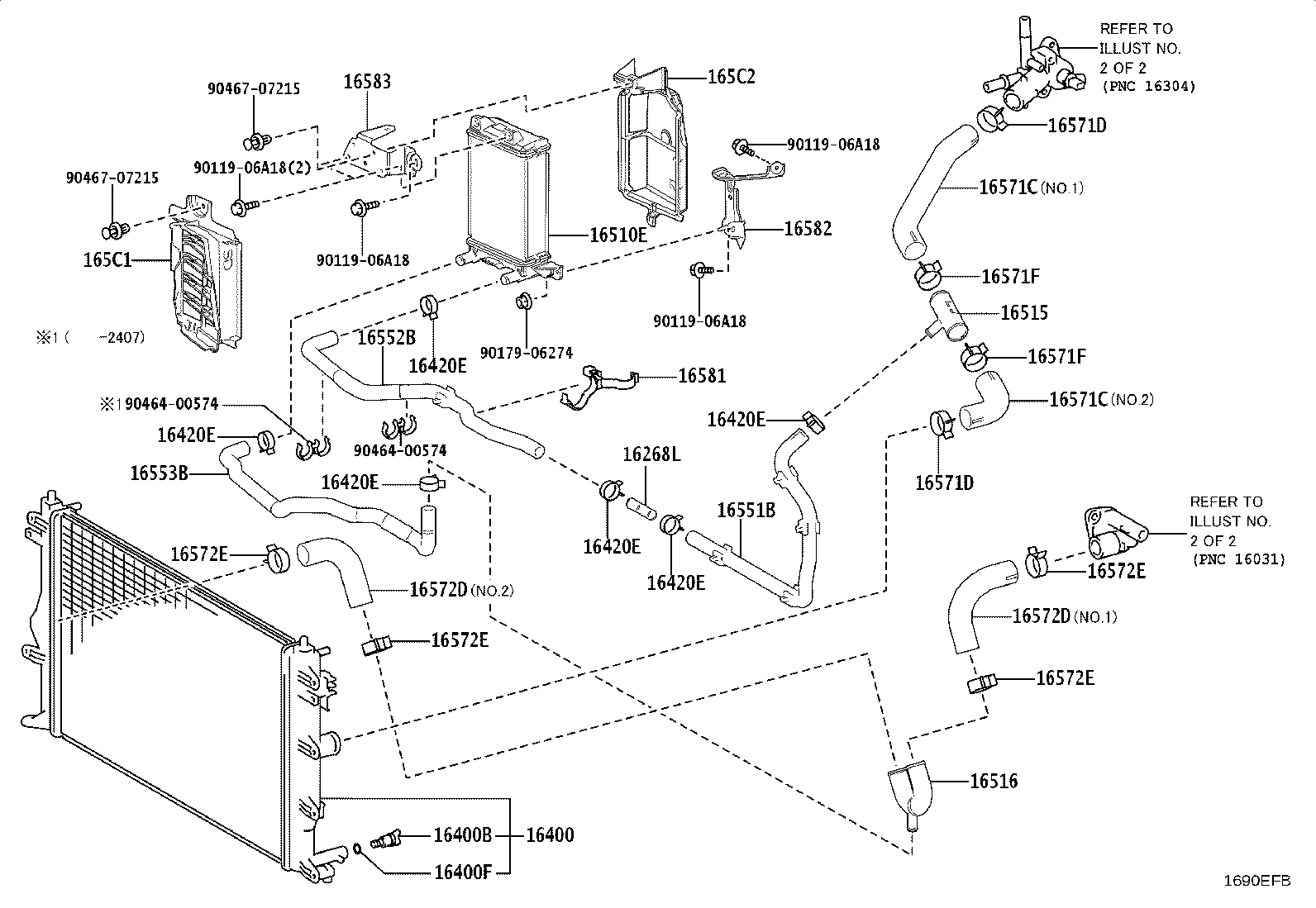

Exploded illustration 1690EFB 16571C — HOSE, RADIATOR, NO.1 (5 parts) 16571C — HOSE, RADIATOR, NO.1 (5 parts) 16515 — PIPE, SUB RADIATOR, NO.1 (1 parts) 16572D — HOSE, RADIATOR, NO.2 (5 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (3 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (3 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (4 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (4 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (4 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (4 parts) 16551B — HOSE, SUB-RADIATOR, NO.1 (1 parts) 16553B — HOSE, SUB RADIATOR, NO.3 (1 parts) 16552B — HOSE, SUB-RADIATOR, NO.2 (1 parts) 16516 — PIPE, SUB RADIATOR, NO.2 (1 parts) 16571F — CLAMP OR CLIP(FOR WATER HOSE) (3 parts) 16571F — CLAMP OR CLIP(FOR WATER HOSE) (3 parts) 165C1 — DUCT, SUB-RADIATOR, NO.1 (1 parts) 165C2 — DUCT, SUB-RADIATOR, NO.2 (1 parts) 16583 — BRACKET, RADIATOR, NO.2 (1 parts) 16420E — CLAMP OR CLIP, SUB RADIATOR HOSE (1 parts) 16420E — CLAMP OR CLIP, SUB RADIATOR HOSE (1 parts) 16420E — CLAMP OR CLIP, SUB RADIATOR HOSE (1 parts) 16268L — PIPE, WATER BY-PASS (1 parts) 16420E — CLAMP OR CLIP, SUB RADIATOR HOSE (1 parts) 16420E — CLAMP OR CLIP, SUB RADIATOR HOSE (1 parts) 16420E — CLAMP OR CLIP, SUB RADIATOR HOSE (1 parts) 16510E — SUB-RADIATOR ASSY (1 parts) 16582 — BRACKET, RADIATOR, NO.1 (1 parts) 9046400574 — not listed in this catalogue 16581 — CLAMP, HOSE(FOR WATER HOSE) (1 parts) 9011906A18 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9017906274 — not listed in this catalogue 16400 — RADIATOR ASSY (5 parts) 16400B — PLUG, RADIATOR DRAIN COCK (3 parts) 16400F — PACKING(FOR RADIATOR DRAIN COCK) (3 parts) 16572D — HOSE, RADIATOR, NO.2 (5 parts) 9046400574 — not listed in this catalogue
1690EFB · 33 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
16268L — Pipe, Water By-pass
16268-47040 note Pipe, Water By-pass
2024-04 → —
G16EGTS GXPA16 ¥430
16400 — Radiator Assy
16400-15620 Radiator Assy
2020-09 → —
M15AFKS MXPA12 ¥27,600
16400-18050 Radiator Assy
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥36,400
16400-18060 note Radiator Assy
2022-12 → 2024-04 ended
G16EGTS GXPA16 RC ¥43,600
16400-18060 note Radiator Assy
2022-12 → 2024-04 ended
G16EGTS GXPA16 RC ¥43,600
16400-18060 Radiator Assy
2024-04 → —
G16EGTS GXPA16 ¥43,600
16400B — Plug, Radiator Drain Cock
16417-21280 Plug, Radiator Drain Cock
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥360
16417-21280 Plug, Radiator Drain Cock
2020-09 → —
M15AFKS MXPA12 ¥360
16417-21280 Plug, Radiator Drain Cock
2024-04 → —
G16EGTS GXPA16 ¥360
16400F — Packing(FOR RADIATOR DRAIN COCK)
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2020-09 → —
M15AFKS MXPA12 ¥210
16492-21050 Packing(FOR RADIATOR DRAIN COCK)
2024-04 → —
G16EGTS GXPA16 ¥210
16420E — Clamp OR Clip, Sub Radiator Hose
96138-42501 note Clamp OR Clip, Sub Radiator Hose
2024-04 → —
G16EGTS GXPA16 ¥180
16510E — Sub-radiator Assy
16510-18010 note Sub-radiator Assy
2024-04 → —
G16EGTS GXPA16 ¥29,000
16515 — Pipe, Sub Radiator, NO.1
16515-18010 note Pipe, Sub Radiator, NO.1
2024-04 → —
G16EGTS GXPA16 ¥1,510
16516 — Pipe, Sub Radiator, NO.2
16516-18010 note Pipe, Sub Radiator, NO.2
2024-04 → —
G16EGTS GXPA16 ¥1,270
16551B — Hose, Sub-radiator, NO.1
16551-18010 note Hose, Sub-radiator, NO.1
2024-04 → —
G16EGTS GXPA16 ¥1,150
16552B — Hose, Sub-radiator, NO.2
16552-18010 note Hose, Sub-radiator, NO.2
2024-04 → —
G16EGTS GXPA16 ¥1,150
16553B — Hose, Sub Radiator, NO.3
16553-18010 note Hose, Sub Radiator, NO.3
2024-04 → —
G16EGTS GXPA16 ¥1,150
16571C — Hose, Radiator, NO.1
16571-15190 Hose, Radiator, NO.1
2020-09 → —
M15AFKS MXPA12 ¥1,010
16571-18050 Hose, Radiator, NO.1
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥1,350
16571-18050 Hose, Radiator, NO.1
2024-04 → —
G16EGTS GXPA16 ¥1,350
16571-18060 note Hose, Radiator, NO.1
2024-04 → —
G16EGTS GXPA16 ¥1,150
16571-18070 note Hose, Radiator, NO.1
2024-04 → —
G16EGTS GXPA16 ¥1,010
16571D — Clip, Radiator Hose, NO.1
90466-40001 Clip, Radiator Hose, NO.1
2020-09 → —
M15AFKS MXPA12 ¥240
96136-44301 Clip, Radiator Hose, NO.1
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥310
96136-44301 Clip, Radiator Hose, NO.1
2024-04 → —
G16EGTS GXPA16 ¥310
16571F — Clamp OR Clip(FOR WATER HOSE)
96138-42001 Clamp OR Clip(FOR WATER HOSE)
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥120
96136-44801 note Clamp OR Clip(FOR WATER HOSE)
2024-04 → —
G16EGTS GXPA16 ¥330
96138-42001 Clamp OR Clip(FOR WATER HOSE)
2024-04 → —
G16EGTS GXPA16 ¥120
16572D — Hose, Radiator, NO.2
16572-15220 Hose, Radiator, NO.2
2020-09 → —
M15AFKS MXPA12 ¥1,150
16572-18010 Hose, Radiator, NO.2
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥1,080
16572-18010 Hose, Radiator, NO.2
2024-04 → —
G16EGTS GXPA16 ¥1,080
16572-18020 note Hose, Radiator, NO.2
2024-04 → —
G16EGTS GXPA16 ¥1,080
16572-18030 note Hose, Radiator, NO.2
2024-04 → —
G16EGTS GXPA16 ¥1,010
16572E — Clip, Radiator Hose, NO.2
90466-40001 Clip, Radiator Hose, NO.2
2020-09 → —
M15AFKS MXPA12 ¥240
96136-44301 Clip, Radiator Hose, NO.2
2020-08 → 2024-04 ended
G16EGTS GXPA16 ¥310
96136-44301 Clip, Radiator Hose, NO.2
2024-04 → —
G16EGTS GXPA16 ¥310
96136-44301 note Clip, Radiator Hose, NO.2
2024-04 → —
G16EGTS GXPA16 ¥310
16581 — Clamp, Hose(FOR WATER HOSE)
16581-31180 note Clamp, Hose(FOR WATER HOSE)
2024-04 → —
G16EGTS GXPA16 ¥440
16582 — Bracket, Radiator, NO.1
16582-18010 note Bracket, Radiator, NO.1
2024-04 → —
G16EGTS GXPA16 ¥1,740
16583 — Bracket, Radiator, NO.2
16583-18020 note Bracket, Radiator, NO.2
2024-04 → —
G16EGTS GXPA16 ¥1,400
165C1 — Duct, Sub-radiator, NO.1
165C1-18010 note Duct, Sub-radiator, NO.1
2024-04 → —
G16EGTS GXPA16 ¥2,540
165C2 — Duct, Sub-radiator, NO.2
165C2-18010 note Duct, Sub-radiator, NO.2
2024-04 → —
G16EGTS GXPA16 ¥2,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
