Toyota Yaris GR
2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan
Supported model
Data version 2024-04
Starter
8 part groups · 3 illustrations
Part groups

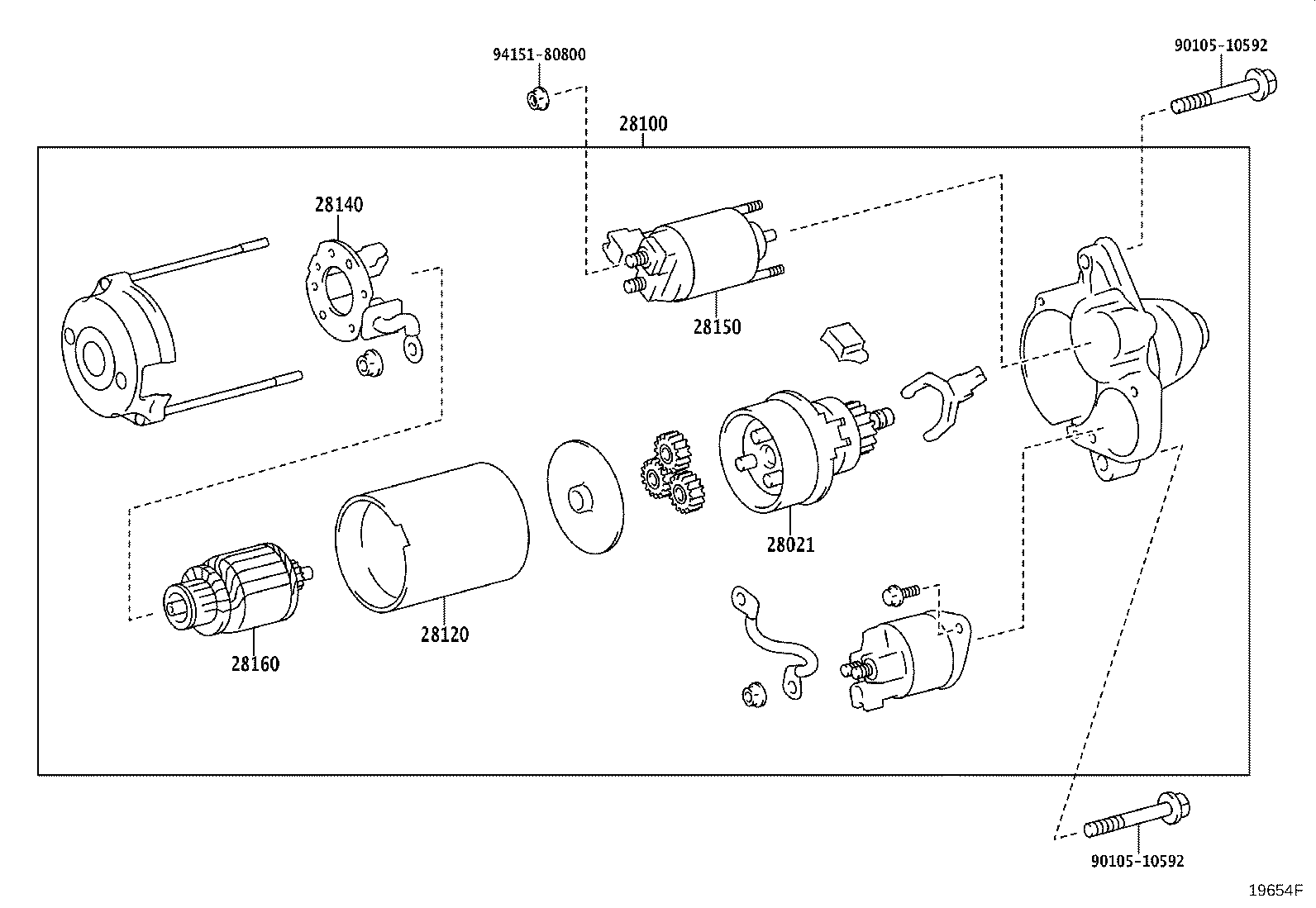

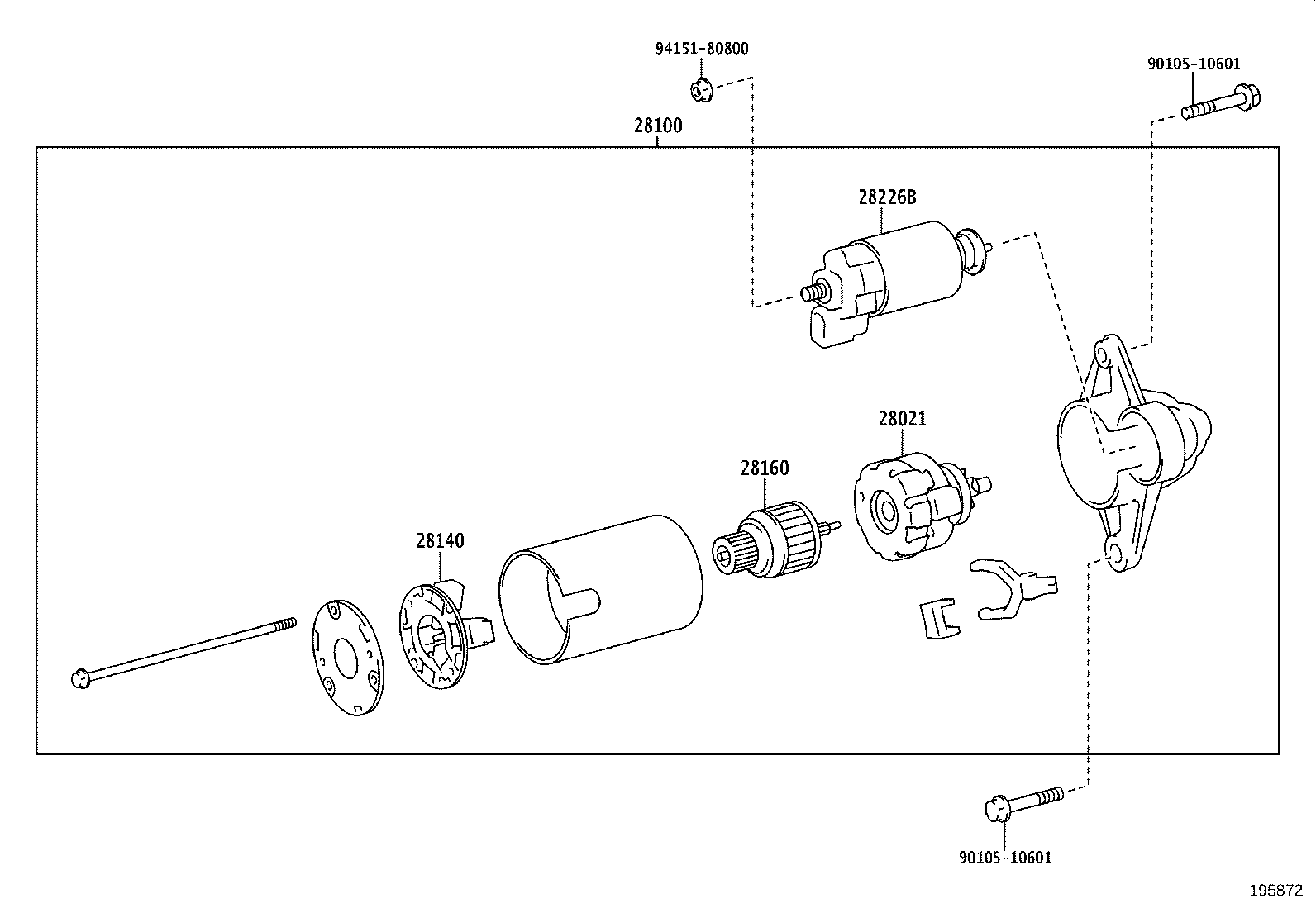

| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28226B | Starter Kit, Repair Service |
| 28249 | Relay, Starter Inrush Current Reduction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
