Toyota Yaris GR
2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan
Supported model
Data version 2024-04
Front Axle Housing & Differential
35 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31105H | Seal, Oil, NO.2(FOR TRANSAXLE CASE) |

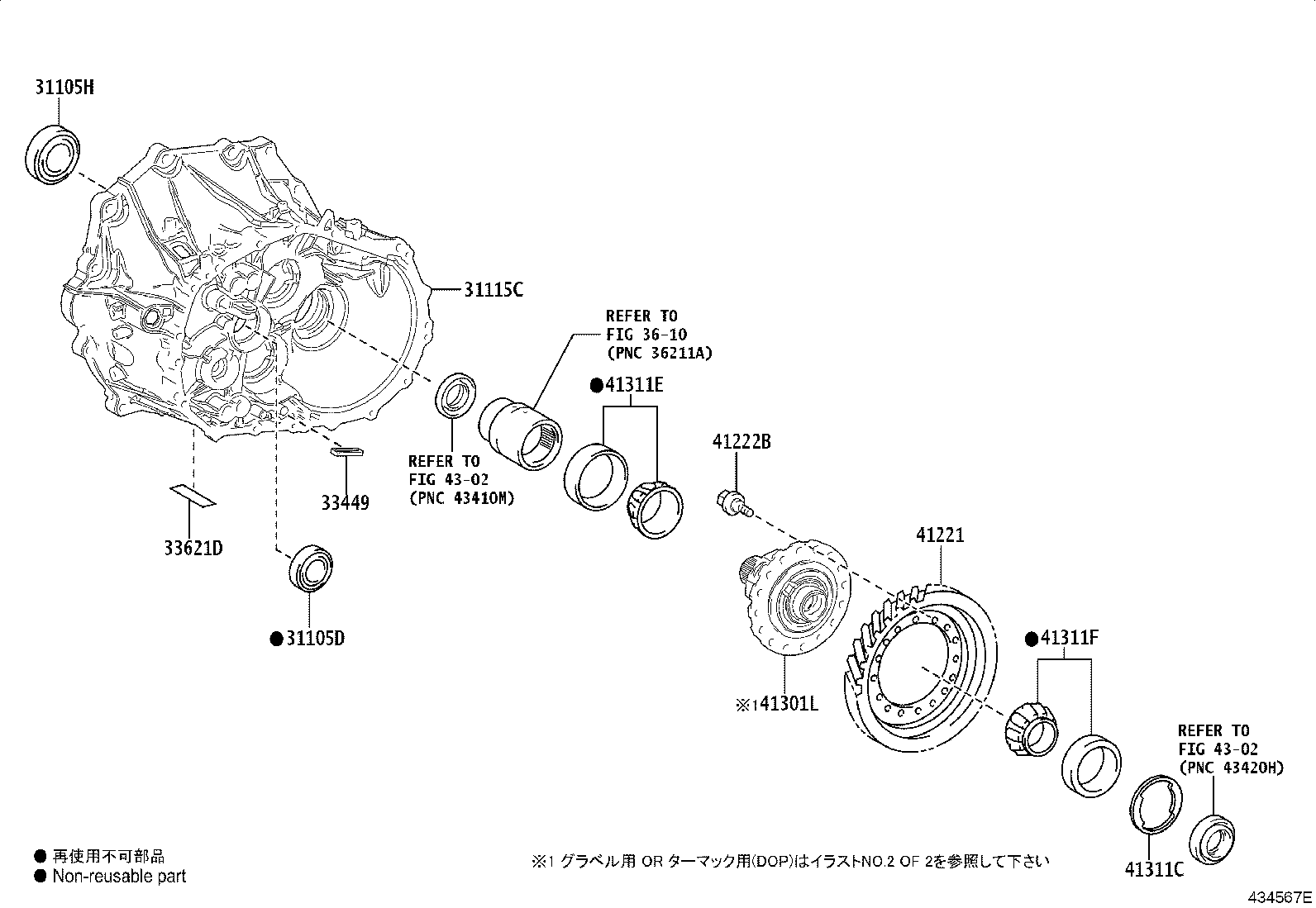

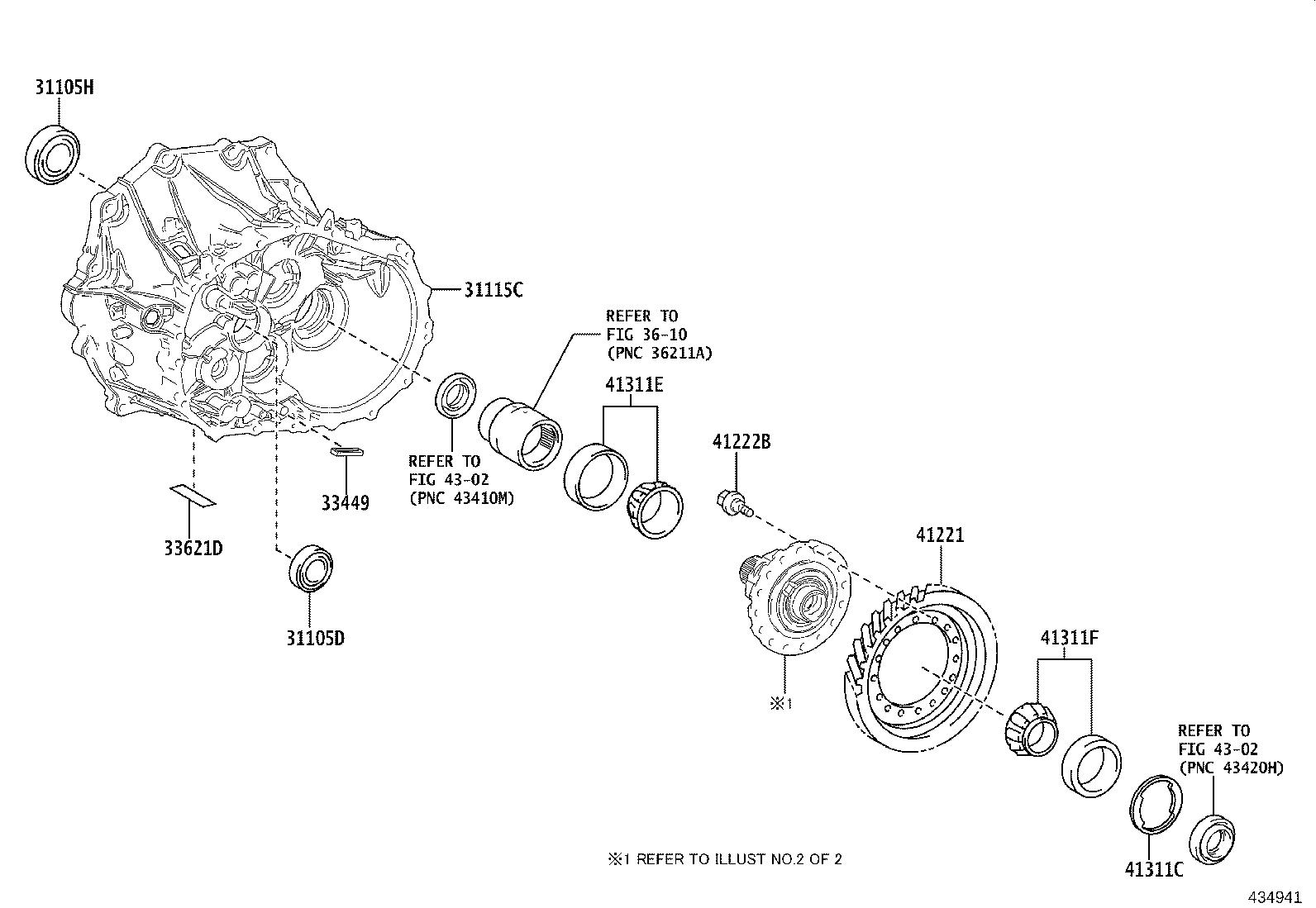

| 31115C | Case, Front Transaxle(MTM) |
| 33449 | Magnet, Transmission |
| 33621D | Label, Transaxle Oil Information |

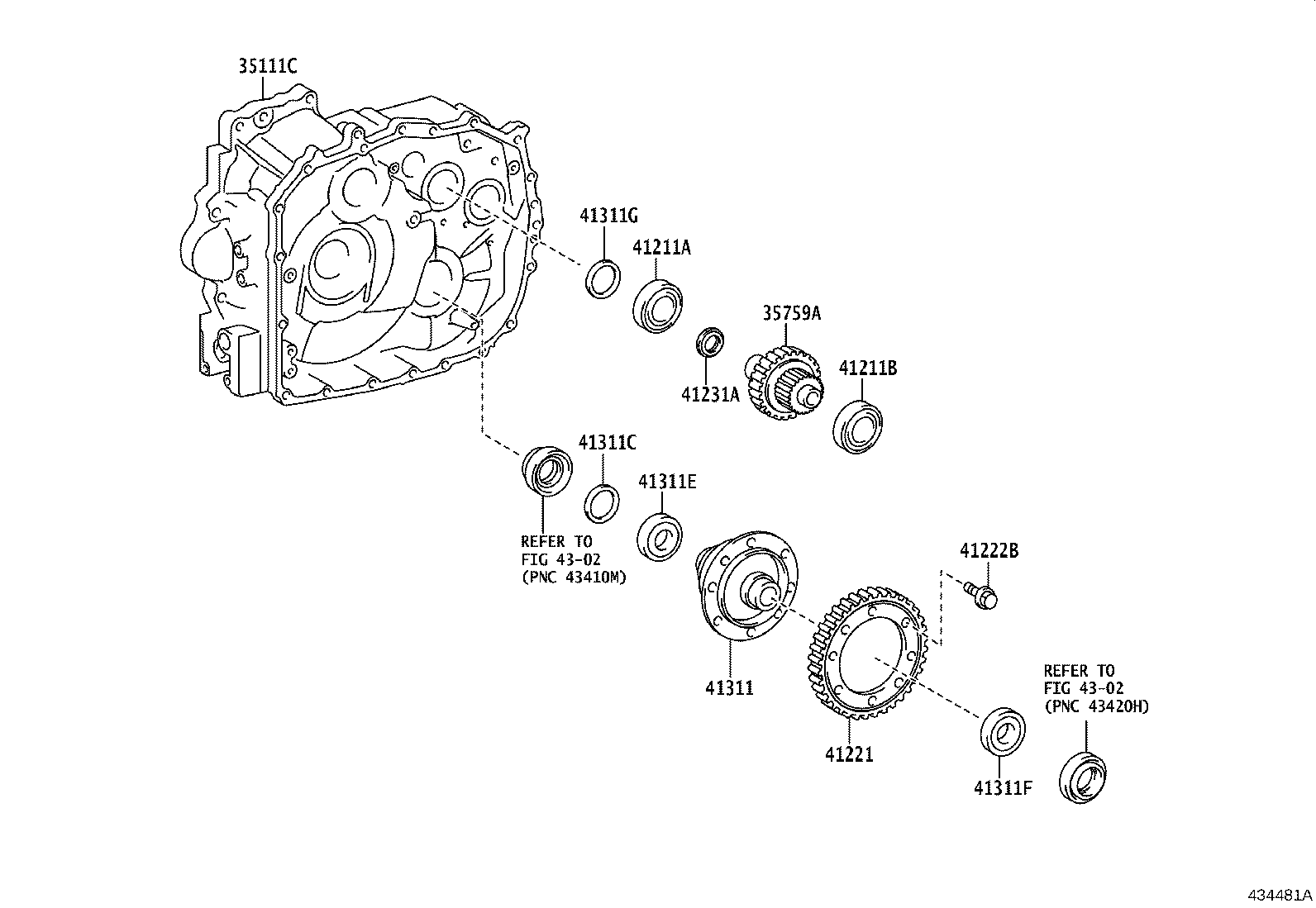

| 35111C | Housing, Transaxle |
| 35174 | Separator, Transaxle Housing Oil |
| 35759A | Gear, Reduction Driven |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41231A | Nut, Drive Pinion Lock |

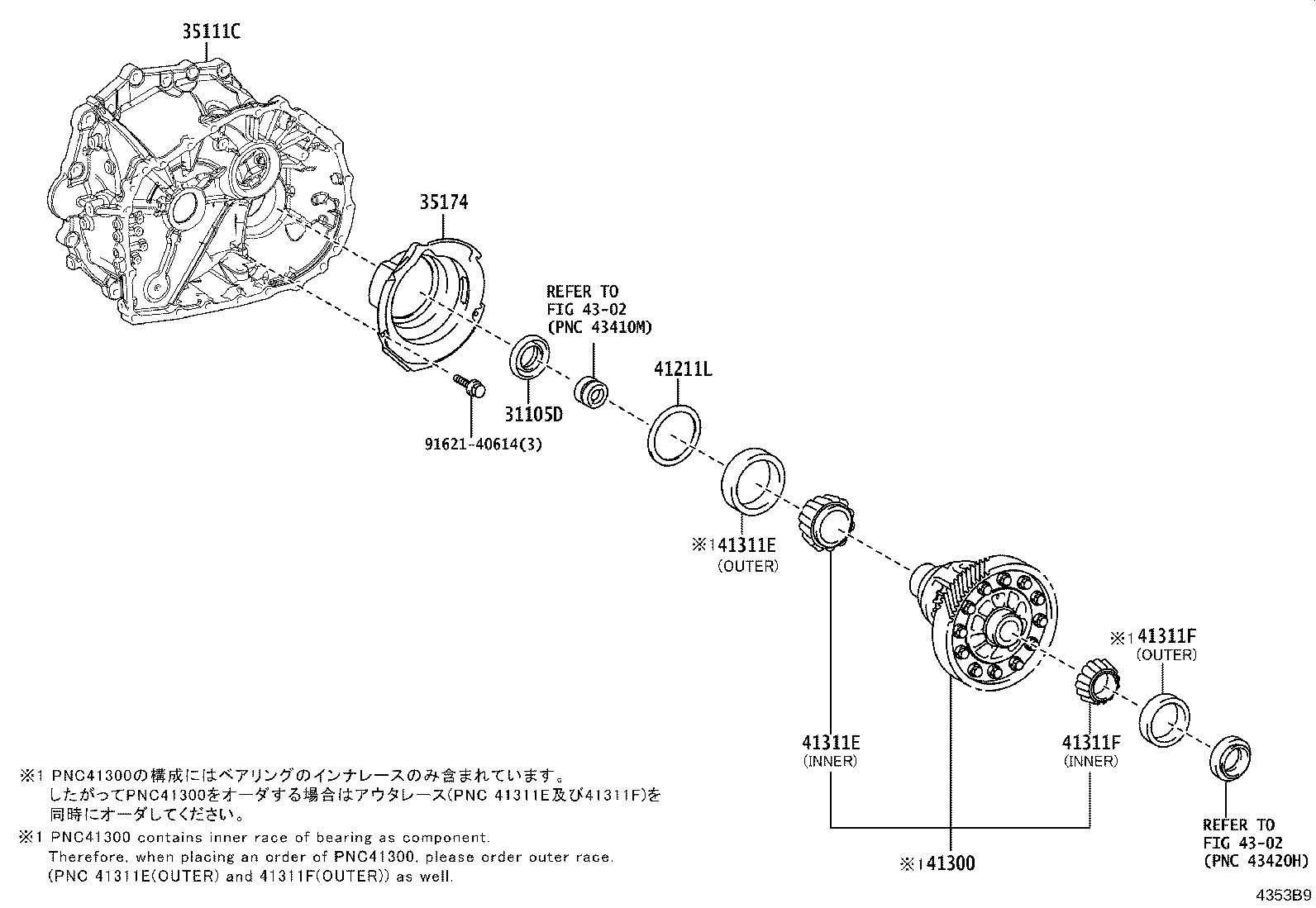

| 41300 | Case Assy, Front Differential, W/Ring Gear |

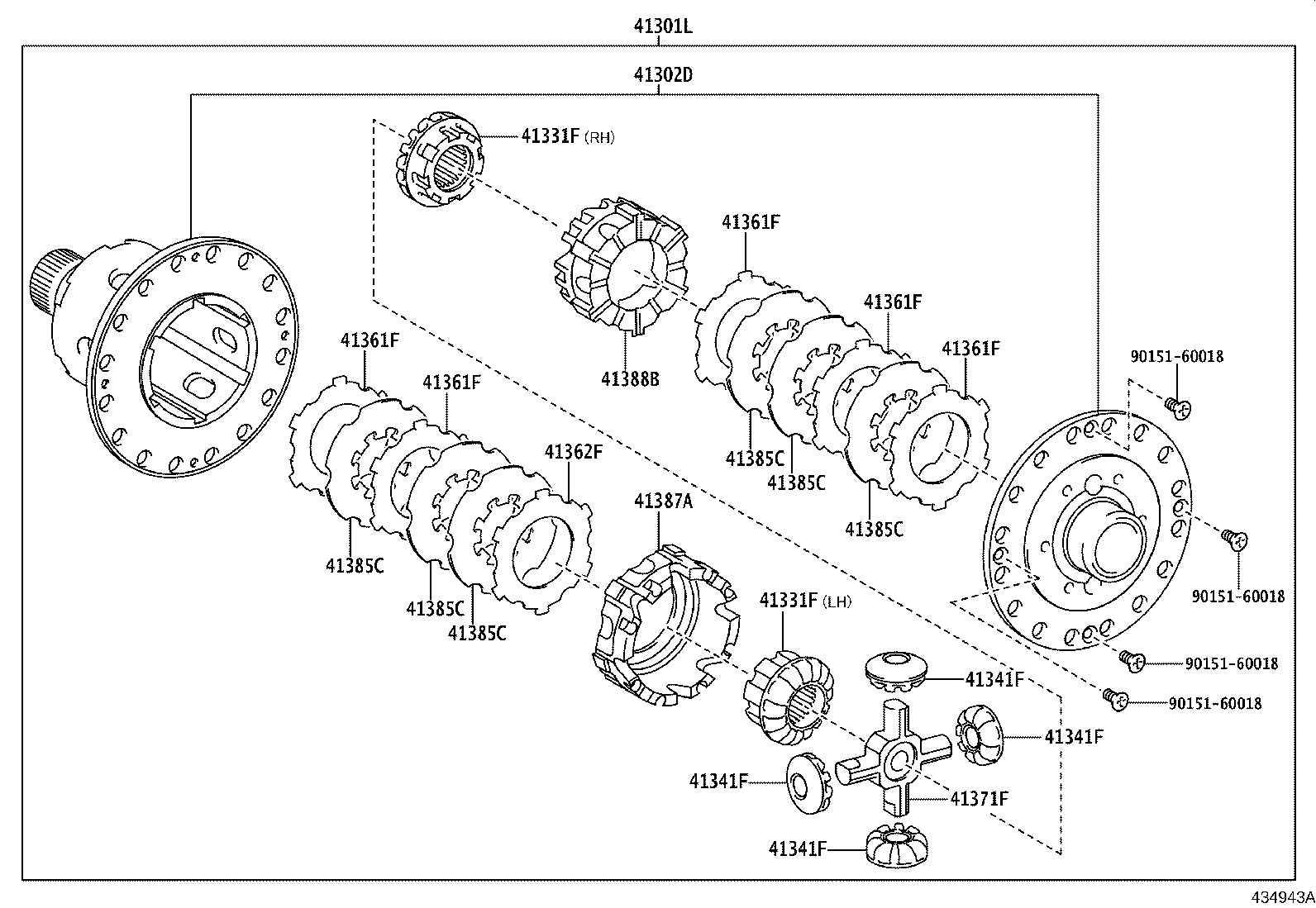

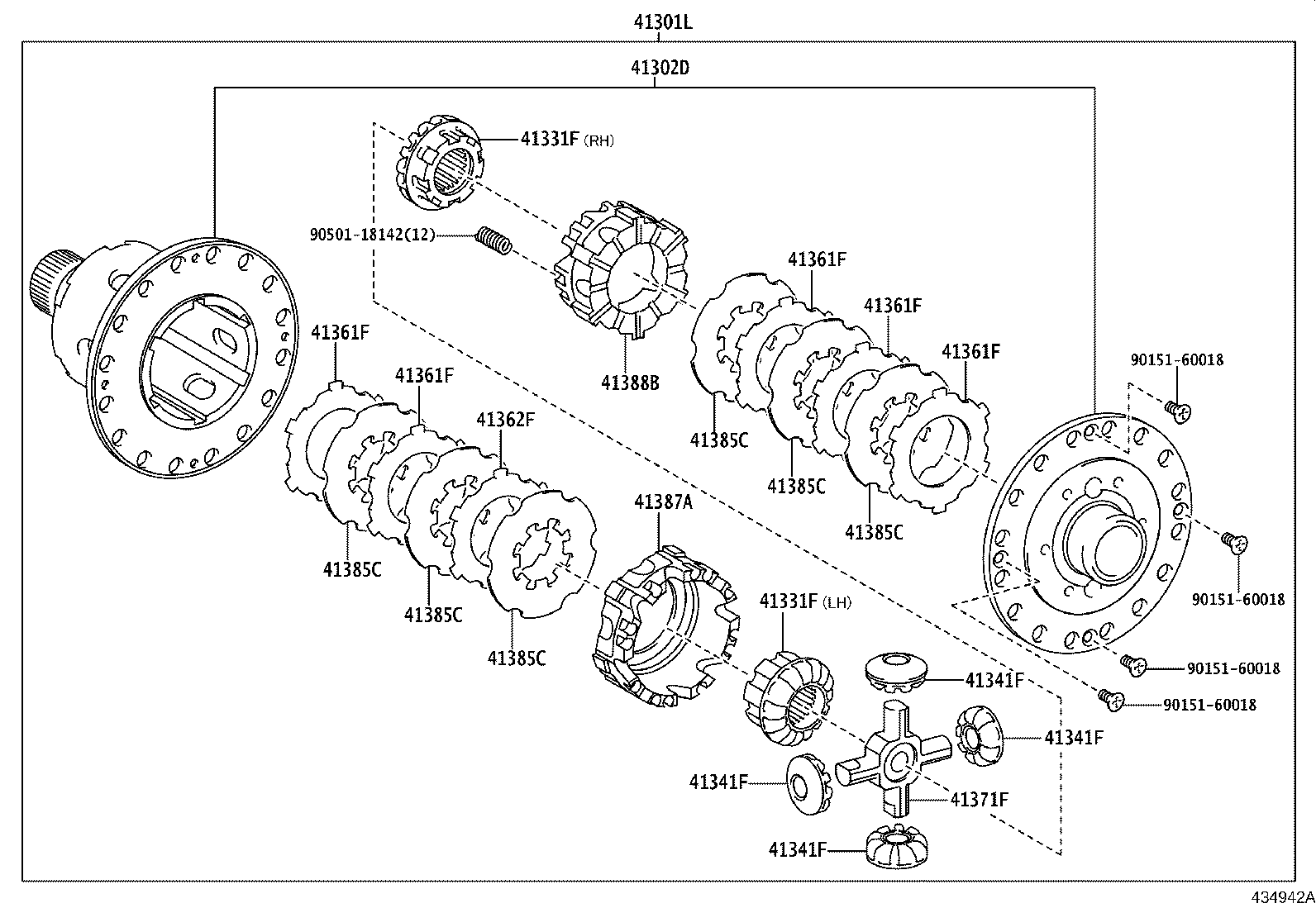

| 41301L | Case Sub-assy, Front Differential, NO.1 |
| 41302D | Case Sub-assy, Front Differential, NO.2 |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311G | Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41361G | Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR) |
| 41362F | Washer, Front Differential Side Gear Thrust, NO.2 |
| 41371F | Spider, Front Differential |

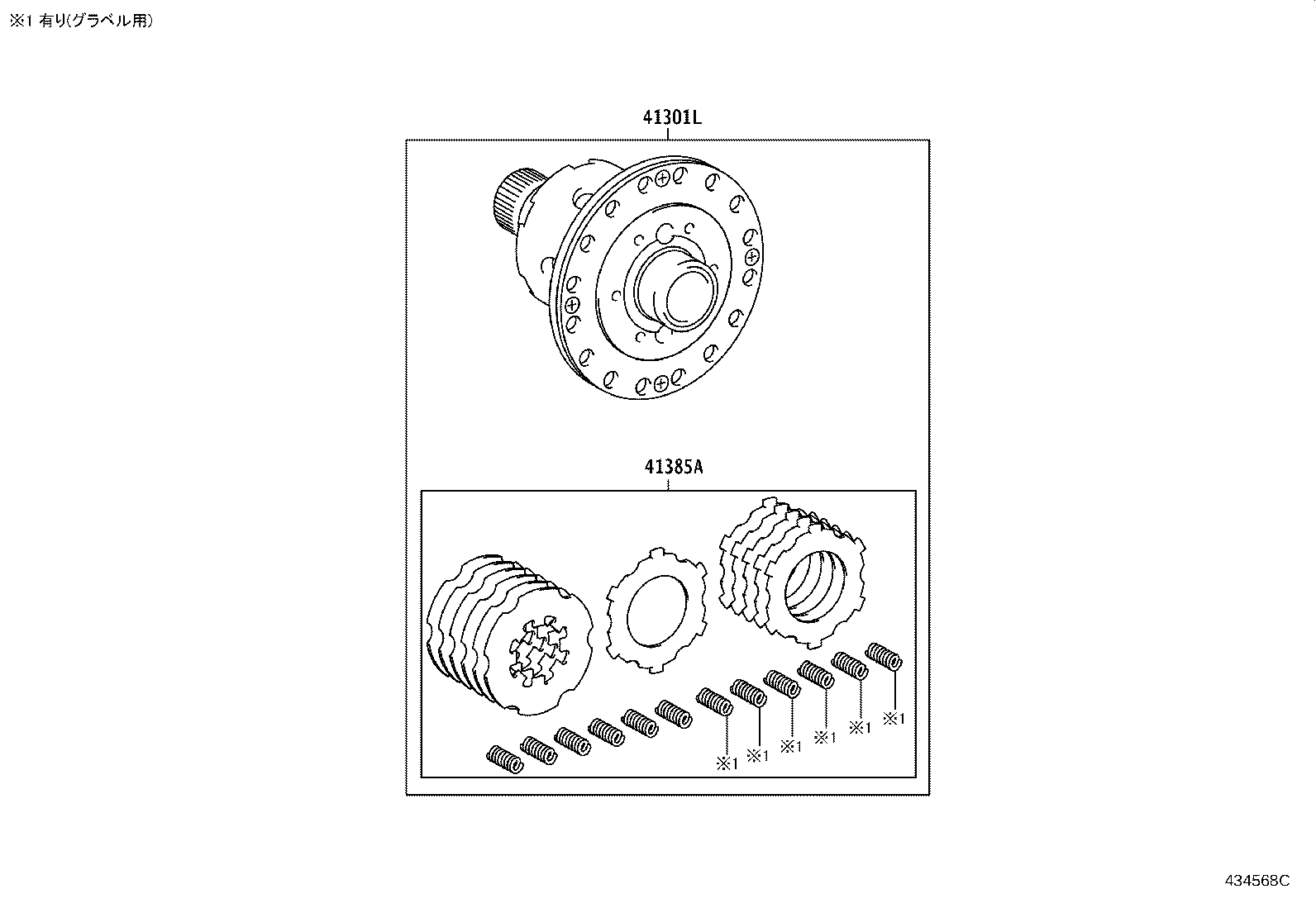

| 41385A | Clutch Plate Set(FOR FRONT DIFFERENTIAL) |
| 41385C | Plate, Clutch |
| 41387A | Retainer, Spring |
| 41388B | Retainer, Spring, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
