Front Axle Hub

9 part groups · 2 illustrations

Illustrations

Figure 434479B

434479B 2020-08 → —

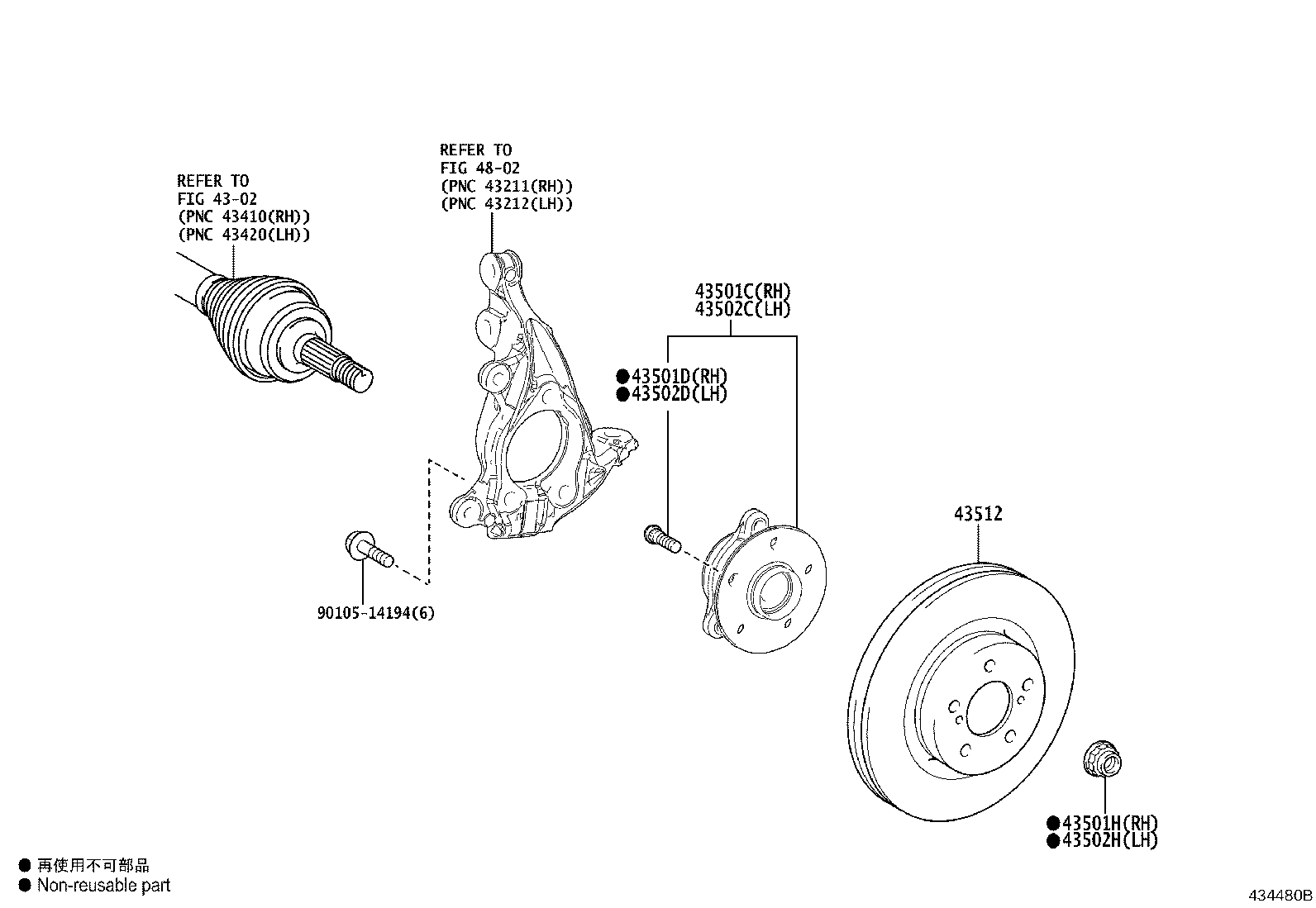

Figure 434480B

434480B 2020-09 → —

Part groups

PNC	Description
43501C	Hub Sub-assy, Front Axle, RH
43501D	Bolt, Hub (FOR FRONT AXLE RH)
43501H	Nut (FOR FRONT AXLE SHAFT RH)
43502C	Hub Sub-assy, Front Axle, LH
43502D	Bolt, Hub (FOR FRONT AXLE LH)
43502H	Nut (FOR FRONT AXLE SHAFT LH)
43512	Disc, Front
43512J	Disc, Front RH
43516	Disc, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
