Toyota Yaris GR
2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan
Supported model
Data version 2024-04

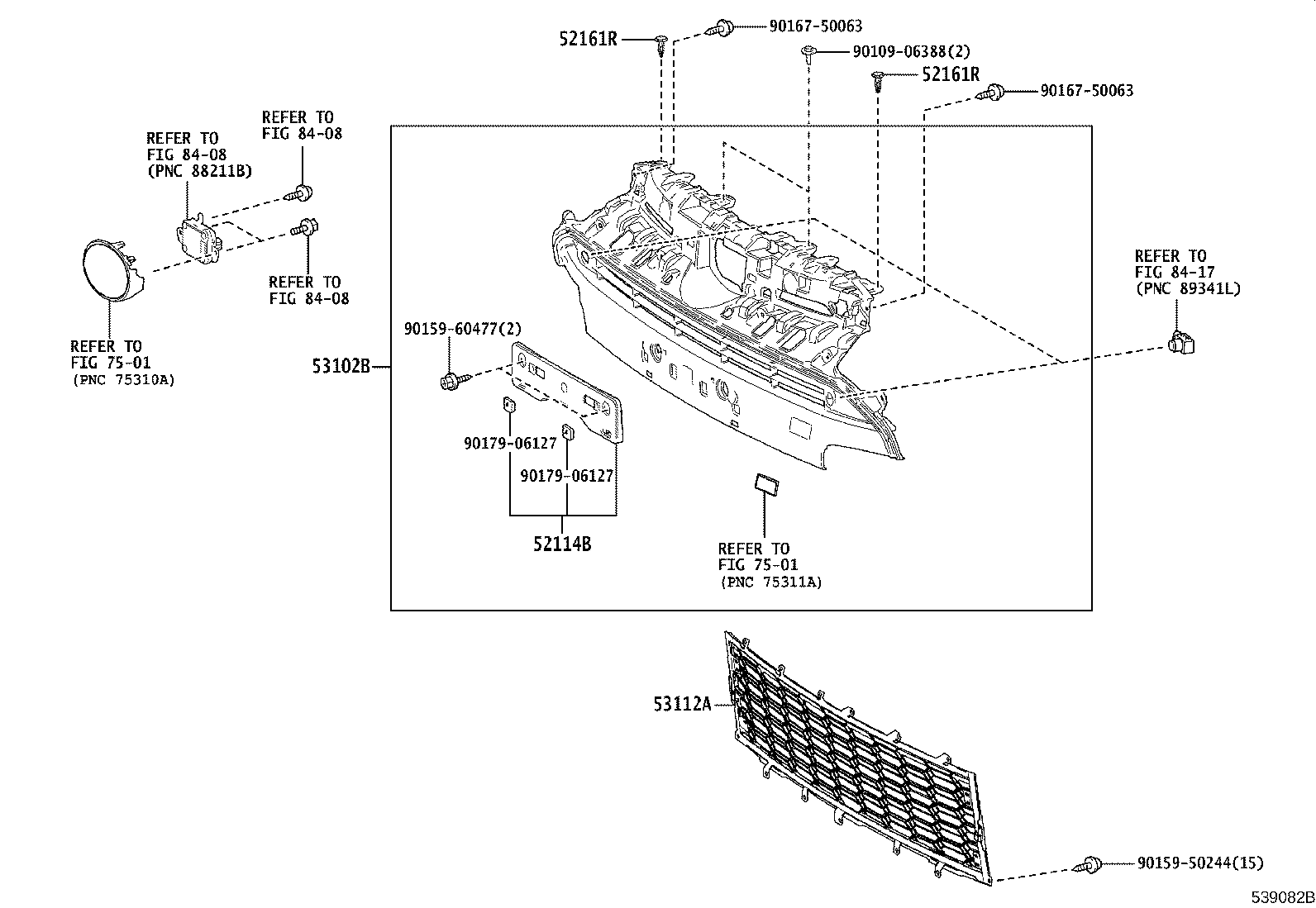

Radiator Grille
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52114B | Bracket, Front Bumper Extension Mounting |
| 52161R | Piece, Front Bumper |
| 53102B | Grille Sub-assy, Radiator, Lower |
| 53112A | Grille, Radiator, Lower |
| 53193A | Retainer, Radiator Grille, Lower RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
