Toyota Yaris GR

2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

4 part groups · 2 illustrations

Illustrations

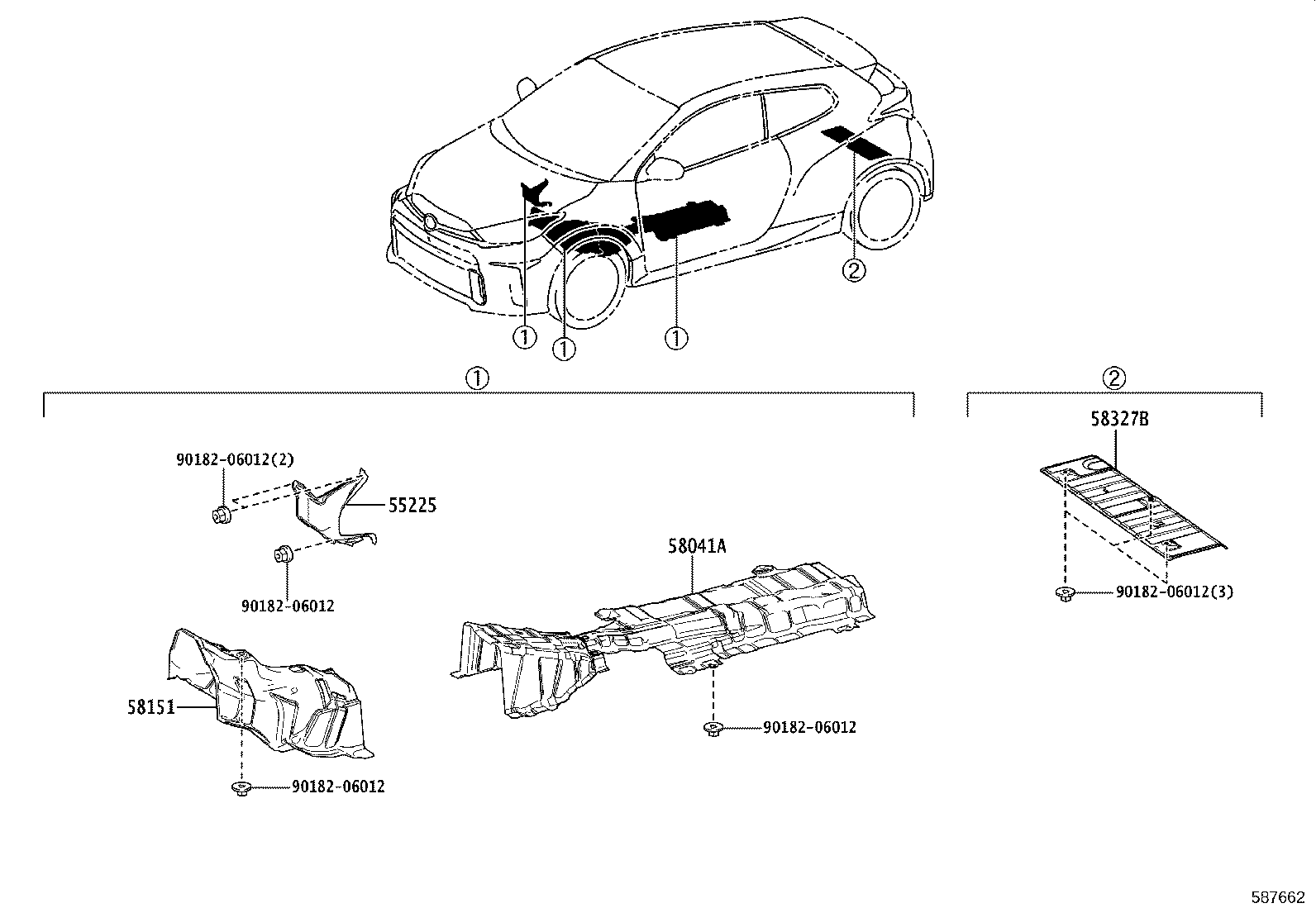

Figure 587661A 587661A 2020-08 → — Figure 587662 587662 2020-09 → —

Part groups

PNCDescription
55225 Insulator, Dash Panel Heat
58041A Insulator Sub-assy, Front Floor Heat, NO.1
58151 Insulator, Front Floor Heat, NO.1
58327B Insulator, Main Muffler Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
