Toyota Yaris GR
2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan
Supported model
Data version 2024-04
Console Box & Bracket

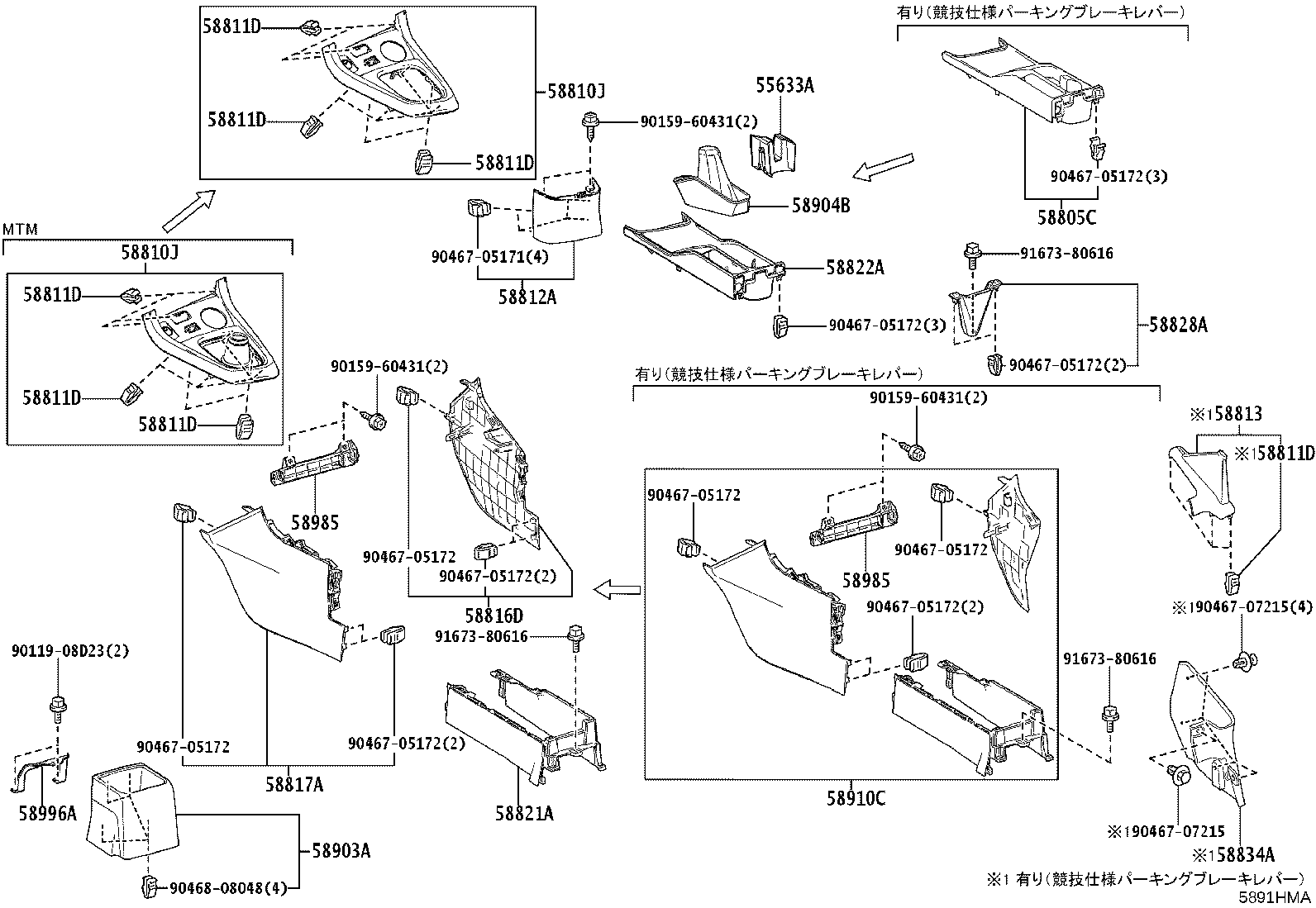

18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55479E | Cover, Instrument, Lower Center |
| 55633A | Support, Instrument Panel Cup Holder, NO.1 |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58812A | Box, Console, Lower |
| 58813 | Box, Console, Upper |
| 58816D | Insert, Console Box, Front NO.1 |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821A | Panel, Console |
| 58822A | Panel, Console, Upper Rear |
| 58828A | Bracket, Console Box, Lower |
| 58834A | Cover, Console, Lower |
| 58903A | Panel Sub-assy, Console Rear End |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58910C | Box Assy, Console, Rear |
| 58985 | Retainer, Console Box |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
