Toyota Yaris GR

2020-08 → present · chassis GXPA16,MXPA12 · catalogue 11E110 · Japan

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

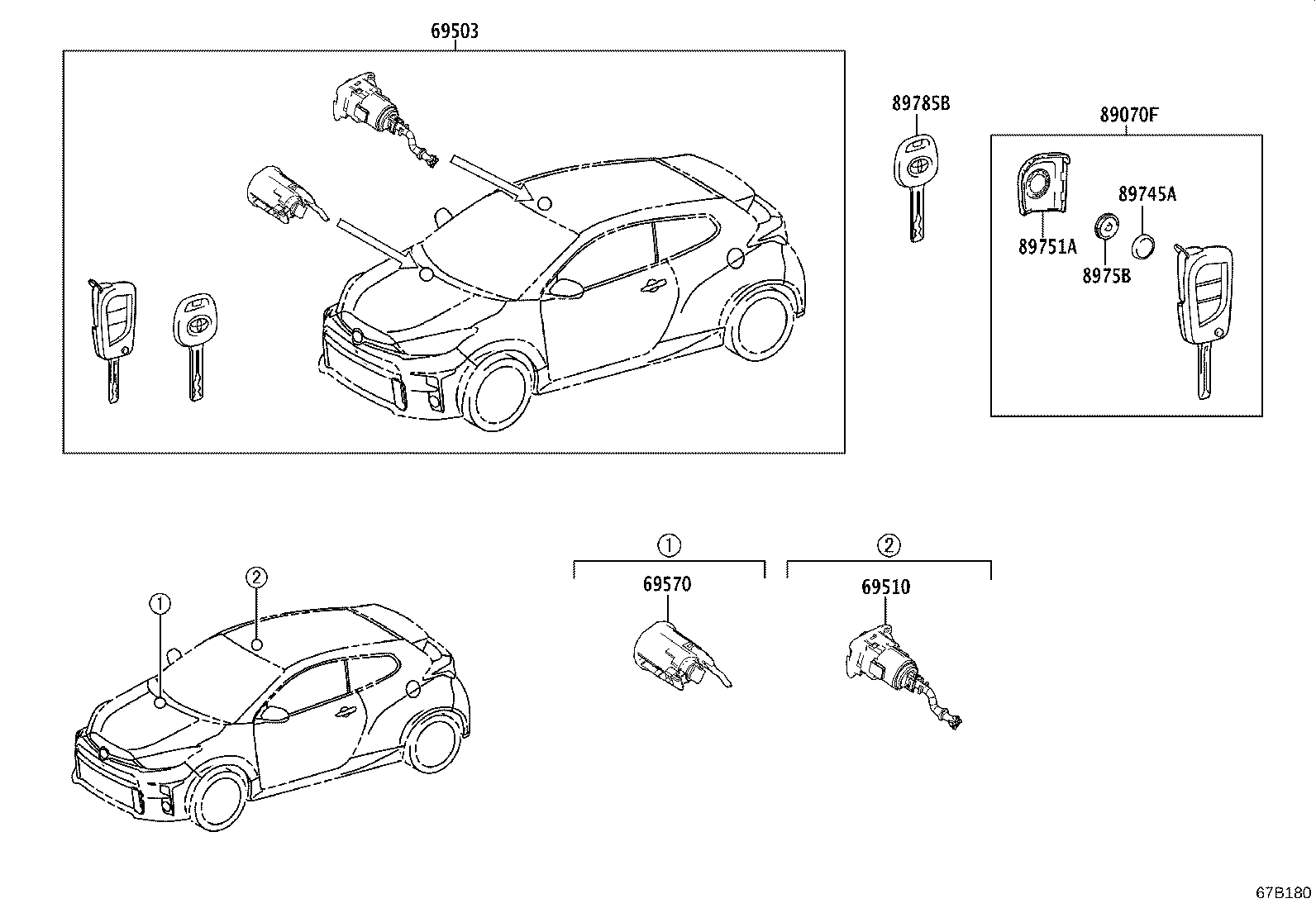

Figure 67B179A 67B179A 2020-08 → — Figure 67B180 67B180 2020-08 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503B Key, Cut
69510 Cylinder Assy, Front Door Lock, RH
69570 Cylinder Assy, Ignition Switch Lock
89070F Transmitter Assy, Door Control (CUT KEY)
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89785B Transmitter, Transponder Key Master
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
