Battery Carrier

5 part groups · 2 illustrations

Illustrations

Figure 745299B

745299B 2020-08 → —

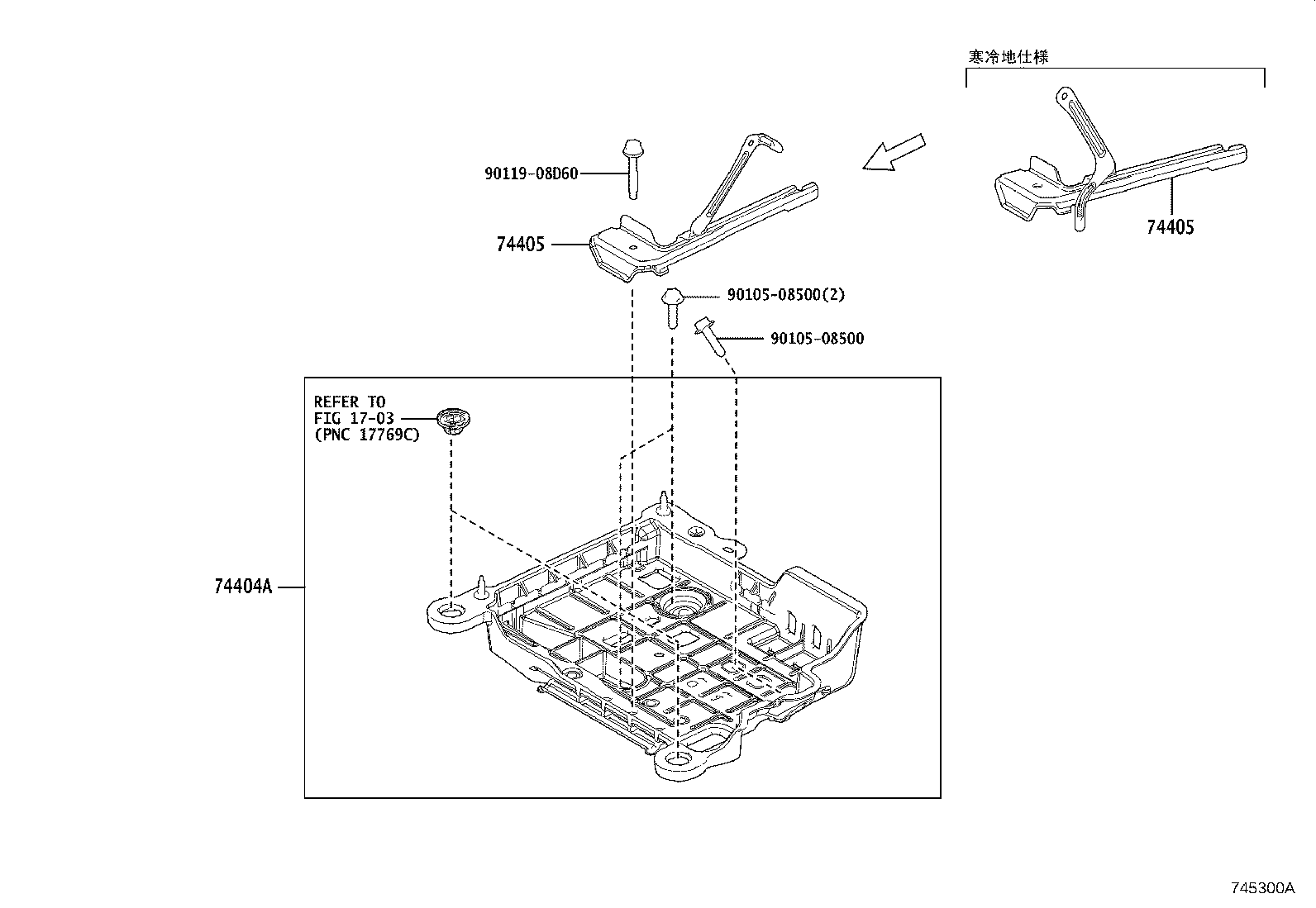

Figure 745300A

745300A 2020-09 → —

Part groups

PNC	Description
74403A	Carrier Sub-assy, Battery
74404A	Clamp Sub-assy, Battery
74405	Clamp Sub-assy, Battery, NO.2
74452A	Bolt, Battery Clamp, NO.2
74474	Pad, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
